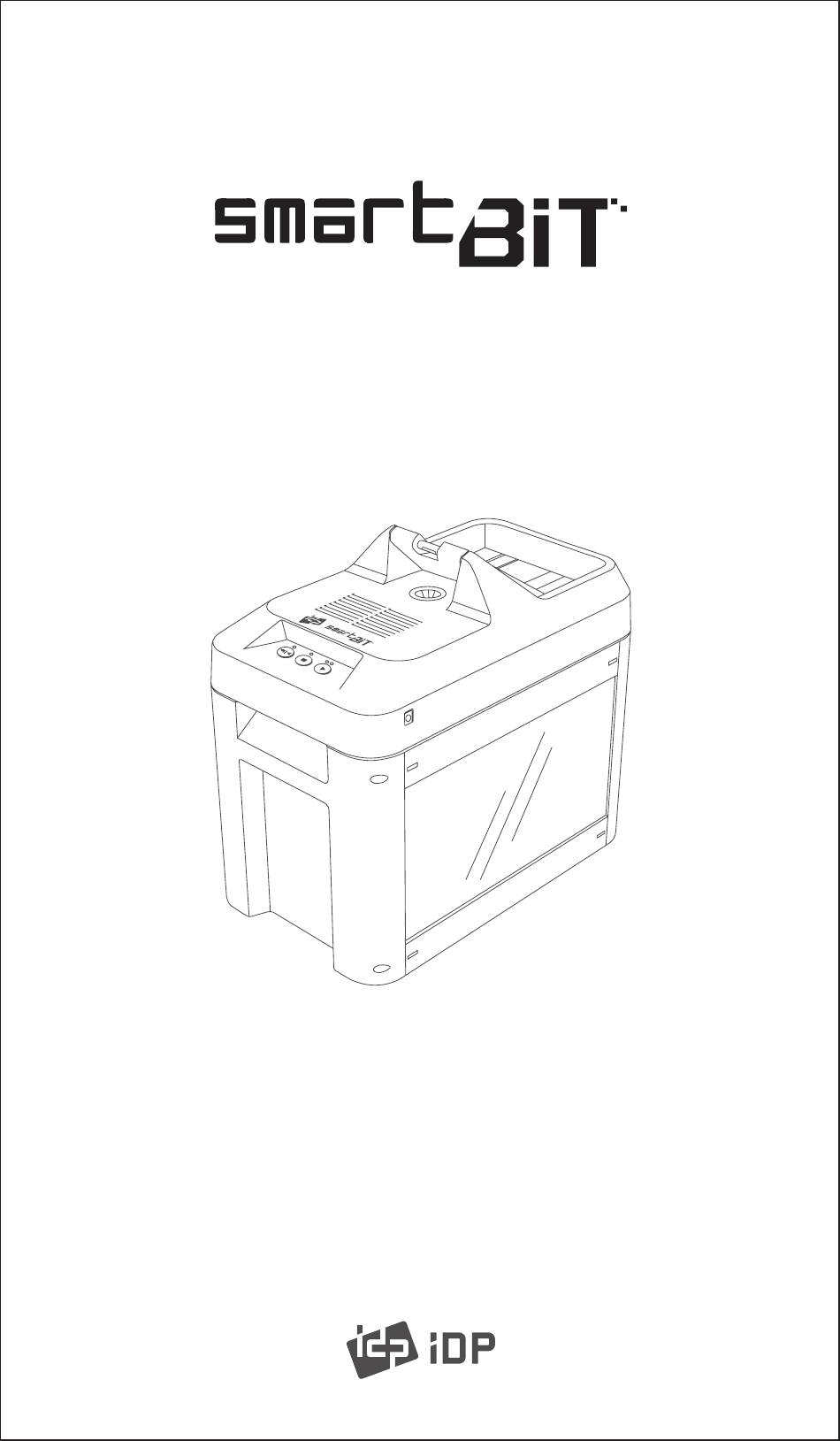

- Page 1 Securely Destroy Sensitive Personal Information Topping Foil USER GUIDE...
- Page 2 CAUTIONS Disconnect and unplug the power adapter BEFORE lifting the Top Body from the Waste Bin. ● Exposed shredder motor may cause injury or damage if the unit becomes operational while Top Body is detached from Waste Bin. Do NOT disassemble or modify device, this will void the warranty and may cause the unit to malfunction. ● Use only topping foils from card printers with a maximum width of 90mm. ● Do NOT shred foils which are attached to the core with adhesive tape. Adhesives tape and ● residue may cause damage to the cutter blades. Do NOT over-fill the shredder’s Dust Bag. ● Do NOT shred foils over the “Full-line” presented on the Waste Bin or Dust Bag. ● It may cause serious damage to the cutter parts. FULL FULL DO NOT shred ribbons...
- Page 3 1. Features 1. Body (Top Body) 2. Waste Bin 3. Foil Tray 4. Foil Guide 5. Foil Hole Guide 6. Shredding Hole 7. Operation Buttons Shred (Normal | Fast) Stop Reverse 8. Power Disconnector 9. Cutter Module Bottom Included SMART-BIT x1 Power AC Power Dust bag x1...
-
Page 4: Installation
2. Installation Install the dust bag for SMART-BIT that is provided in the Waste Bin. Put the Top Body of SMART-BIT on the Waste Bin. Align the rubber feet with the Check the join fits properly. grooves on the Waste Bin. Connect the power adapter. -
Page 5: Preparation And Operation
3. Preparation and operation To prepare the foil for shredding, lift the foil Guide, place the foil in the Foil Tray, then lower Foil Guide into position. Lift up Place the end of the foil Lower Foil Guide. face down as a pictured. Foil guide. -
Page 6: Maintenance
4. Detach / Remove Foil When shredding is complete, SMART-BIT will stop automatically and the LED blink. The foil to be shredded can be detached and removed using the following steps. Push ‘Reverse’ button Lift up the Foil Guide. Take out the foil core Push ‘Stop’... - Page 7 The adjustment of the tension of cutter ● Please adjust a tension of cutter when the debris of foil is irregular in size or shredding operation is abnormal. Turn a tension control screw clockwise by (-) screwdriver for increasing a tension of cutter. Normal Needs an adjustment Excessive tension of cutter can lead to critical failure.
- Page 8 Error status and countermeasures ● The LED lamps on buttons display the status of error. The error types and countermeasures are as follows. LED No. Status Description Countermeasures Remark Blink Completion of shredding Removal of foil Warranty service / Error on sensor / Push ‘Shred’...
-
Page 9: Specifications
Dust Bag x 5 (1 Pack) Large Waste Bin Large Dust Bag (70 Liter) ● ● ● 20 ea / 1 Pack Frame x1 Large Dust Bag 1 Pack ⓒ2024 IDP Corporation. All rights reserved. Specifications and availability may change without notice. - Page 10 Securely Destroy Sensitive Personal Information IDP Corp., Ltd. IDP Americas, Inc. IDP Middle East #601, 50, Digital-ro 33-gil, 1485 S County Trail, Unit 306 LOB18 O ce#1203, JAFZA Guro-gu, Seoul, Korea, East Greenwich, RI 02818 VIEW 18, Jebel Ali extension, 08377 U.S.A.
