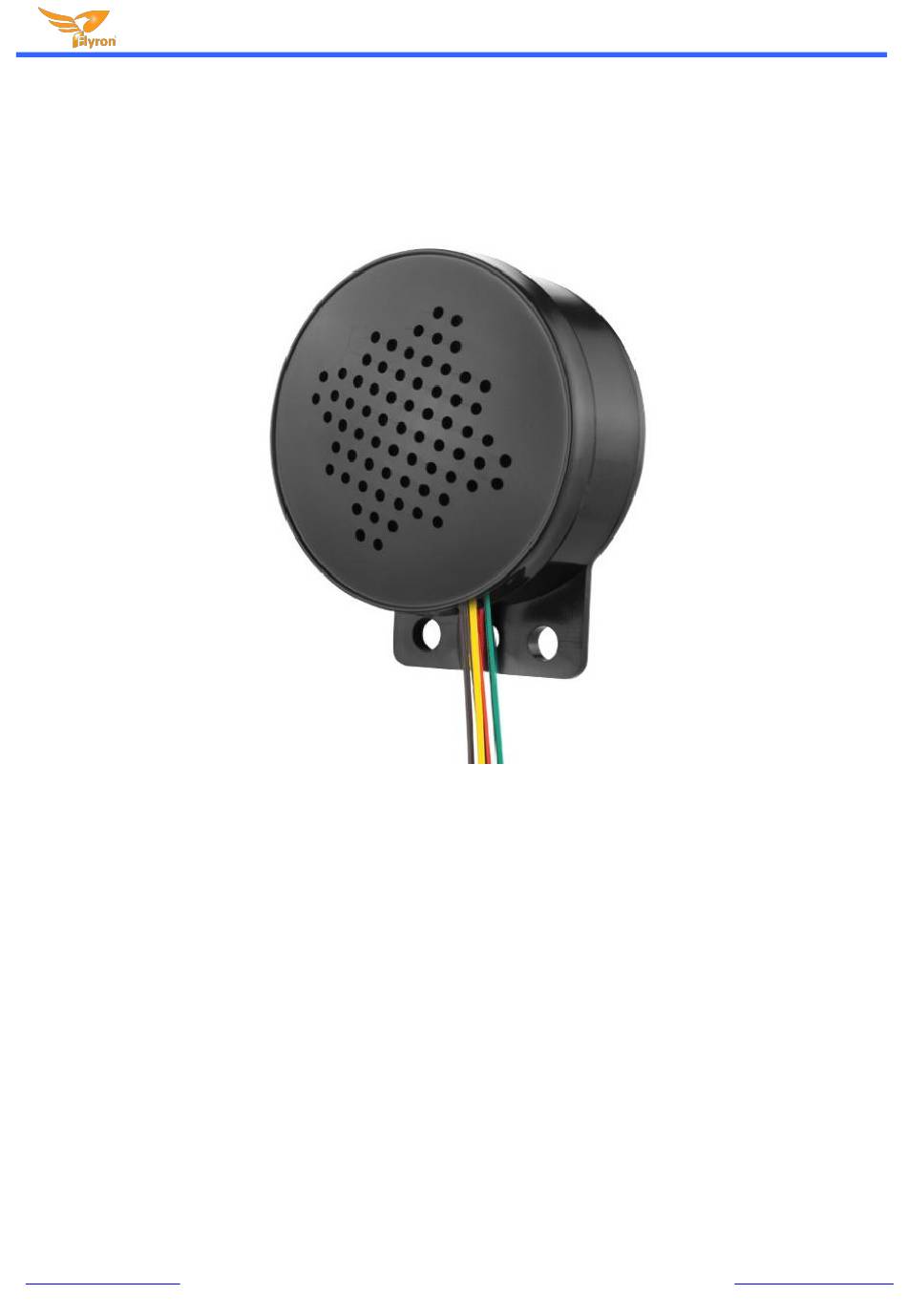

Flyron Technology Co., Ltd.

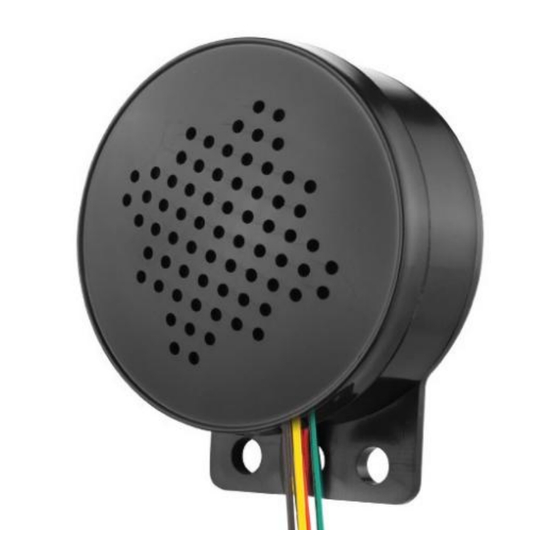

Recordable Speaker MP3 Voice Announcer Siren Alarm
Features
Built-in high quality MP3 player with great sound quality.
Built-in 4MB flash memory as the storage device.
Update sound files easily on computer through USB connection.
Able to play four one-on-one sound files.
Able to play a sound for once when power is applied.
Able to play a sound (multiple sounds) in a loop when power is applied under MP3 player mode.
Able to play multiple sounds in order through the first key input port under MP3 player mode.
Able to play multiple sounds in random through the second key input port under MP3 player mode.
Can be hooked up to a push button/switch/relay.
Equipped with a high quality class D amplifier.
Adjustable sound volume through the blue potentiometer on the internal sound module.
Wide power input and stable performance.
www.flyrontech.com
FN-H860 Recodable Speaker MP3 Voice Announcer
User's Manual V2.0
Model No.: FN-H860
1
E-mail: info@flyrontech.com
Advertisement
Table of Contents
Related Manuals for Flyron Technology FN-H860
Summary of Contents for Flyron Technology FN-H860
- Page 1 Flyron Technology Co., Ltd. FN-H860 Recodable Speaker MP3 Voice Announcer Recordable Speaker MP3 Voice Announcer Siren Alarm User’s Manual V2.0 Model No.: FN-H860 Features Built-in high quality MP3 player with great sound quality. Built-in 4MB flash memory as the storage device.
-
Page 2: Technical Parameters
Flyron Technology Co., Ltd. FN-H860 Recodable Speaker MP3 Voice Announcer Technical Parameters Working voltage: 6V to 30V DC Working current: ≤1000mA Standby current: ≤10mA Power consumption: ≤3W Flash memory size: 4MB Audio format: MP3 (≤192Kbps) ... - Page 3 Flyron Technology Co., Ltd. FN-H860 Recodable Speaker MP3 Voice Announcer 2). Connect the internal sound module to computer through a USB data cable as shown below. It will be detected as a USB flash drive on computer. Once the connection is successful, the LED indicator on the board will flash.
- Page 4 Flyron Technology Co., Ltd. FN-H860 Recodable Speaker MP3 Voice Announcer Detailed Explanations Pulse Interruptible: In this mode, a single negative pulse will start playback. It is possible to interrupt the playback by pressing the same button used to activate. Once playback is interrupted, it will automatically restart the audio file immediately.
- Page 5 Flyron Technology Co., Ltd. FN-H860 Recodable Speaker MP3 Voice Announcer 3). Save the file and close it. 4). Change the file name “xxx.txt” to “Config.txt” as shown below. 5). After that, put the config file onto the memory with the sound files as shown below.
-
Page 6: Examples Of Connection
Flyron Technology Co., Ltd. FN-H860 Recodable Speaker MP3 Voice Announcer Examples of Connection 1). Play four corresponding sounds 2). Play a sound for once when power is applied / play a sound in a loop when power is applied Note: K1(P01) and GND need to be shorted first. If your need it to play a sound for once, you don’t need to put a config file. -
Page 7: Installation Methods
Flyron Technology Co., Ltd. FN-H860 Recodable Speaker MP3 Voice Announcer Installation Methods www.flyrontech.com E-mail: info@flyrontech.com...
