Flyron Technology Co., Ltd.

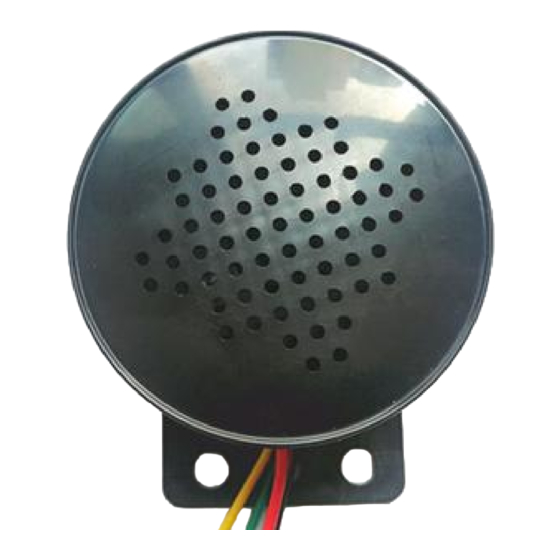

FN-H86C MP3 Speaker/Sound Effects Box
1. Features
Built-in a high quality MP3 player with great sound quality.
Incorporated with a 4MB flash memory for the storage device.
Update MP3/WAV files to the flash memory easily through the micro USB port based on PC like using a USB
flash(need to open the enclosure).
Hook up to a switch/button to trigger the sound easily.
Able to play the same one sound file or play different sound file after each triggering.
Equipped with a class D amplifier to guarantee a great sound output.
Adjustable sound volume.
Wide power input and stable performance.
Dimensions: 61mm(D)x28mm(H)x75mm(L)
2. Electrical parameters
Working voltage: 9V to 24V DC
Working current: ≤200mA (Input: 9V DC)
www.flyrontech.com
FN-H86C MP3 Speaker/Sound Effects Box
User's Manual
V1.0
1
E-mail: info@flyrontech.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Flyron Technology FN-H86C
Summary of Contents for Flyron Technology FN-H86C

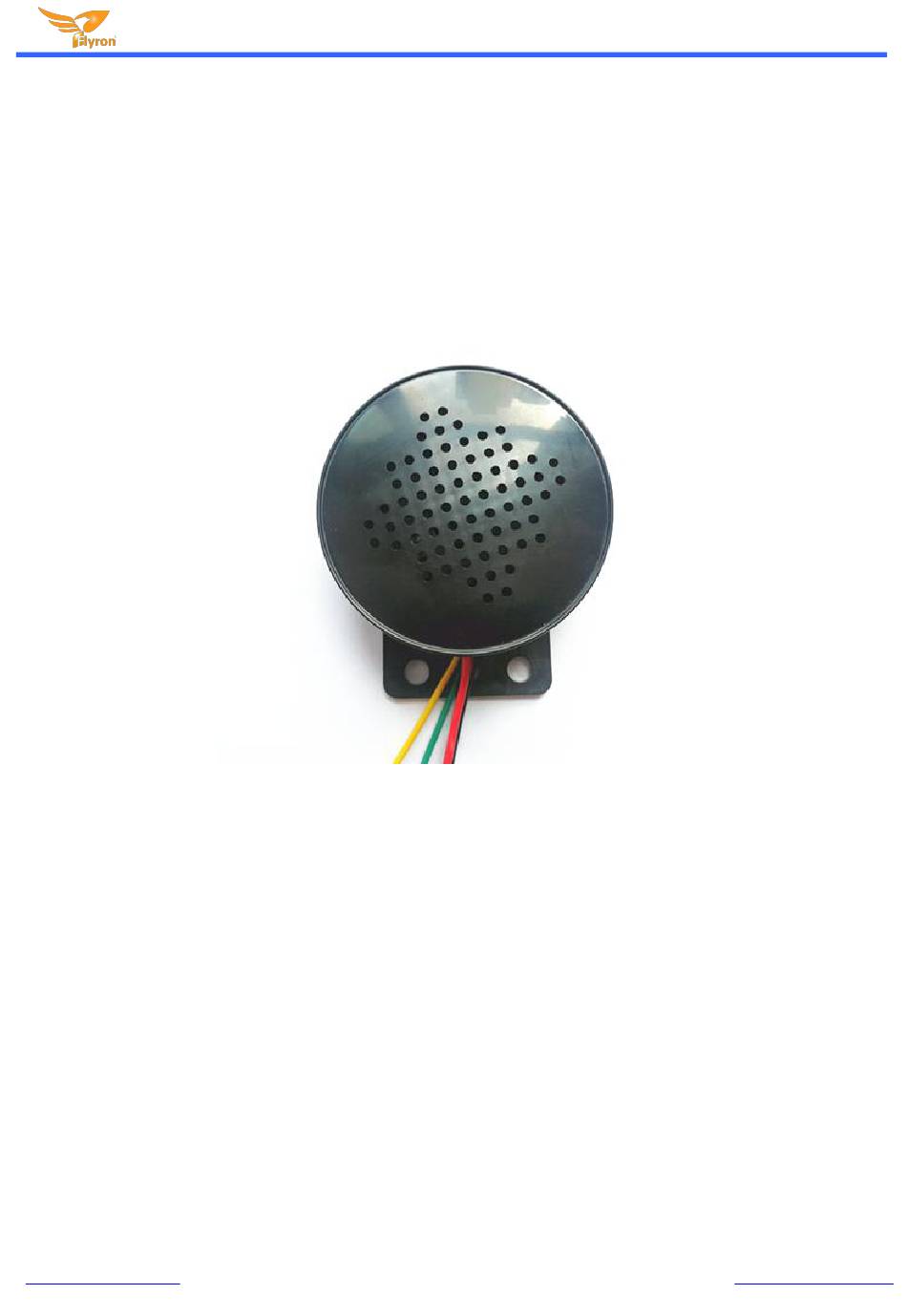

- Page 1 Flyron Technology Co., Ltd. FN-H86C MP3 Speaker/Sound Effects Box FN-H86C MP3 Speaker/Sound Effects Box User’s Manual V1.0 1. Features Built-in a high quality MP3 player with great sound quality. Incorporated with a 4MB flash memory for the storage device.
- Page 2 Flyron Technology Co., Ltd. FN-H86C MP3 Speaker/Sound Effects Box Power Consumption: ≤3W Flash memory size: 4MB Audio format: MP3/WAV 3. Operation Guide for Sound Files Uploading 1). Before loading sound files into the device, you need to take off the top cover by hand easily, then you will see the device as picture shown below.
- Page 3 Flyron Technology Co., Ltd. FN-H86C MP3 Speaker/Sound Effects Box Potentiometer Micro USB port Note: As the amplifier on the module is powerful, we suggest users adjust the sound volume to the moderate or even lower than moderate to protect the speaker for long time use.
-
Page 4: Wiring Connection
Flyron Technology Co., Ltd. FN-H86C MP3 Speaker/Sound Effects Box And change the file name “xxx.txt” to “read.cfg” as below, then the configuration file is created successfully. Please note the extension name”.txt” of the text file must be changed to “.cfg”, otherwise the configuration will not work. - Page 5 Flyron Technology Co., Ltd. FN-H86C MP3 Speaker/Sound Effects Box Note: The yellow wire is from the triggering port while the green wire is from GND port on the module. If these two wires are short-circuited together, once the power is up it plays the sound tracks automatically in loop till the power is off.
