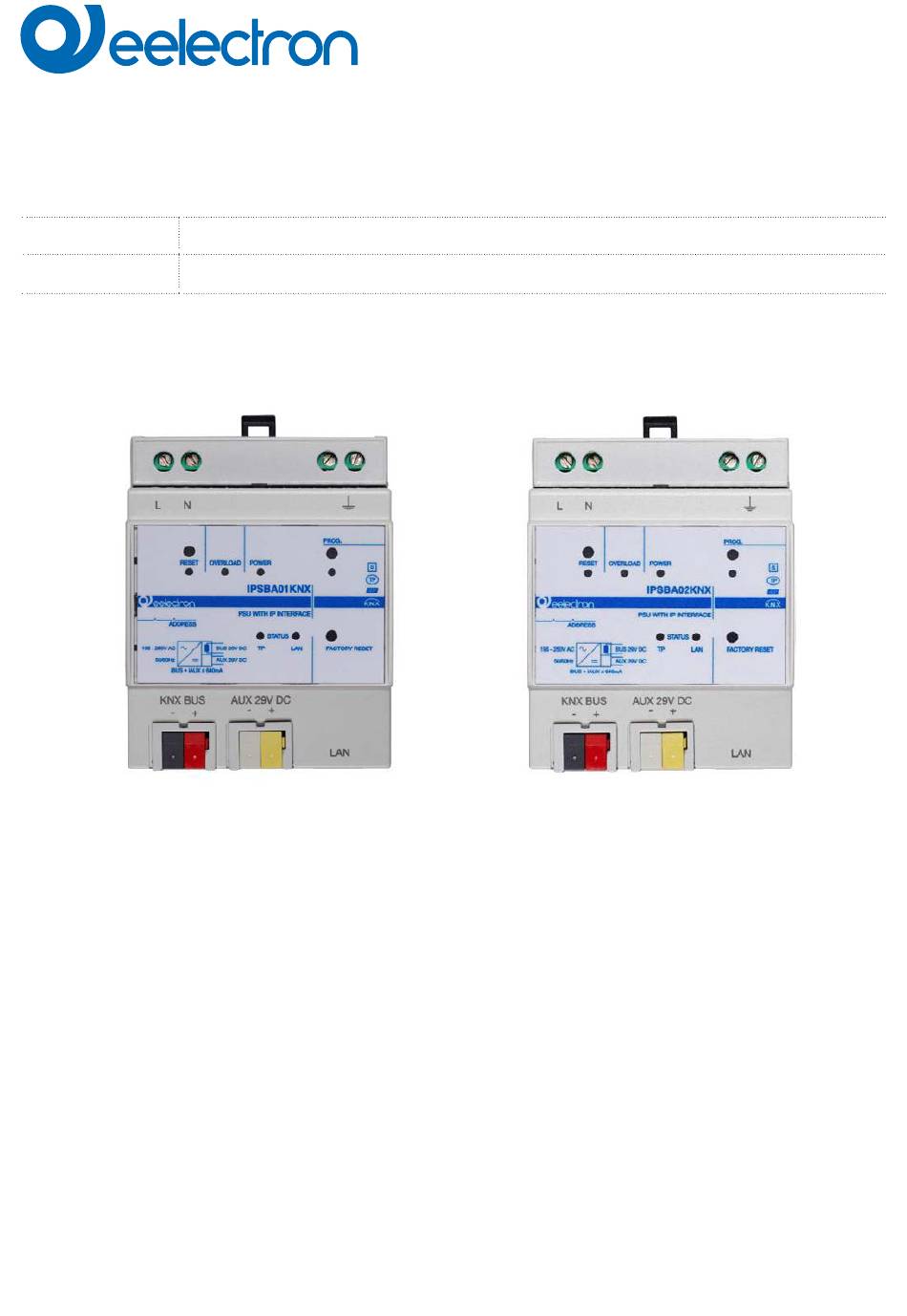

- Page 1 IPSBA01KNX KNX bridge with IP interface and power supply KNX + AUX 640mA + MQTTs IPSBA02KNX KNX bridge with IP interface and power supply KNX + AUX 640mA USER MANUAL Translation of the original instructions Version: 1.1 Date: 19/May/2024...
-
Page 2: Table Of Contents
Behaviour on bus failure, recovery and download ........................8 Behaviour on bus voltage failure ............................8 Behaviour on bus voltage recovery ............................8 Wrong application download ..............................8 VERSION DATE CHANGES 19/Jun/2023 19/May/2024 added IPSBA02KNX and 4 bytes alarms IPSBA0xKNXFI00020101_UM_EN M E M B E R... - Page 3 IPSBA01KNX - IPSBA02KNX Any information inside this manual can be changed without ad- vice. This handbook can be download freely from the website: www.eelectron.com Exclusion of liability: Despite checking that the contents of this document match the hardware and software, deviations cannot be completely exclu- ded.
-
Page 4: Introduction To The User Manual
The presence detection solu- programming of the IPSBA01KNX and IPSBA02KNX using the tion can deduce the presence of people in the room using one or ETS software tool. -
Page 5: Configuration And Commissioning
In large systems, after a power outage or shutdown, this delay avoids ETS® program. -
Page 6: Surveillance Configuration
IPSBA01KNX - IPSBA02KNX Bus controlled Warning time - seconds 20 ... 255 Initial enable state This parameter defines the warning time (seconds). This time indicates disabled / enabled how much before the end of the surveillance time a group value read is It defines the initial state of the IP interface function when bus con- sent on the bus through the “Warning Read Request” object. Used by... -
Page 7: Diagnostic
IPSBA01KNX - IPSBA02KNX “<General> Alarm 4 Bytes” Alarm 4 bytes 4 Bytes disabled / enabled “<General> Alarm Text” This parameter enables the object “<General> Alarm 4 Bytes” which 14 Bytes sends to the BUS a bit mask (27.001) containing the network errors. KNX PARAMETER SETTINGS The general alarms available are: DNS 1 address max 15 bytes 0 ALARM_IDX_DHCP: failed to obtain IP address from DHCP 1 ALARM_IDX_PING: failed to PING address With this parameter (Domain Name System) it’s possible to convert... -
Page 8: Timer
IPSBA01KNX - IPSBA02KNX Please refer to the “Surveillance” user manual. 8. Timer Please refer to the “Timer” user manual. 9. Logics Please refer to the “Logics” user manual. In the devices described, the logical expression can have a maximum of 24 characters. 10. MQTT Please refer to the “MQTT” user manual.
