Aura Audio S2 MANUAL
SAFETY INSTRUCTIONS
Read this user manual and keep it with the product
Always follow all safety instructions and local security
regulations
Never use accessories not manufactured or approved by
Aura Audio
Make sure no audience or crew member is too close to
loudspeakers when operating with high sound pressure levels
(SPL) Professional loudspeaker systems are capable of
producing sound pressure levels high enough to cause
permanent hearing damage even at exposure times less than
couple of minutes
Please check the Aura Audio website on a regular basis for
latest downloads and updates
In case of any questions please don´t hesitate to contact us
for more information via info@auraaudio.fi
We also welcome all comments and system pics from you!
TABLE OF CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
www.auraaudio.com
Version 1.0
1
2
3
4
5
6
7
8
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aura Audio S2
Summary of Contents for Aura Audio S2
-
Page 1: Table Of Contents
Please check the Aura Audio website on a regular basis for latest downloads and updates In case of any questions please don´t hesitate to contact us for more information via info@auraaudio.fi... -
Page 2: Introduction

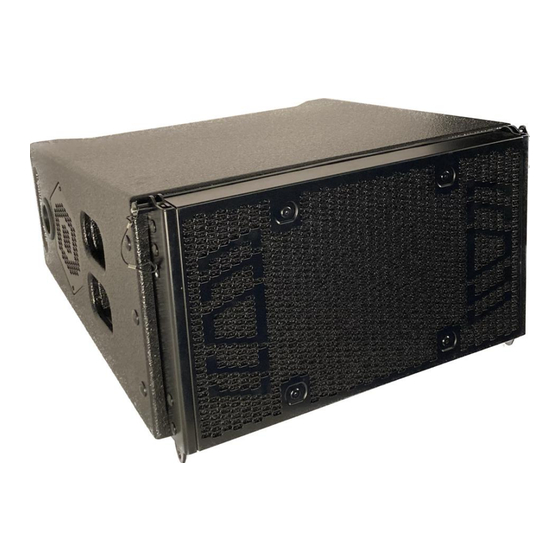

Aura Audio S2 MANUAL Version 1.0 INTRODUCTION S2 is a compact passive 3.5-way line source speaker. It consists of folded horn-loaded 10” neodymium magnet cone driver, two side-firing reflex tuned 6.5" cone drivers, 6.5” neodymium magnet cone driver loaded with a multi-path waveguide coaxially mounted with two 1”... -
Page 3: Applications And System Options
S2R Flying Frame for S2 array of 1 to 20 units S2RG Ground stacking or on a top of S-series subwoofer Aura Audio D100DSP - S2 Presets - max 3 units /ch (12 units) Aura Audio D80DSP - S2 Presets - max 2 units /ch (8 units) Aura Audio D2.25 ! 80Hz HP-mode - max 1 unit /ch (2 units) -
Page 4: Prediction With Ease Focus2
PREDICTION WITH EASE Focus 3 EASE Focus 3 is a 3D system design software developed by AFMG GmbH. Before using the software visit S2 page in Aura Audio website to download S2 GLL file and then download EASE Focus 3 software from http://afmg.eu Install the software and import S2 GLL file to your project: Edit / Import System Definition File…... -
Page 5: Operation With S2R Fly Frame
2# Connect the angle rod according to Ease Focus simulation. S2 features 11 choices for angles; 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10 degrees. S2R only has three connection for angle rod. -
Page 6: Specifications
Aura Audio S2 MANUAL Version 1.0 S2 - SPECIFICATIONS Frequency Response (+-3 dB): 95!20000 Hz Horizontal Coverage (-6 dB): 80 degrees Vertical Coverage (-6 dB): 10 degrees Max peak SPL : 138 dB (free space) Sensitivity, 1w/1m: 107 dB (free space) Impedance: 6 Ohms Crossover: 250Hz, 400Hz, 3.2kHz passive... -
Page 7: Directivity & Spl Measurements
Aura Audio S2 MANUAL Version 1.0 DIRECTIVITY & SPL MEASUREMENTS www.auraaudio.com Page 7 of 8... -
Page 8: Declaration Of Conformity
Aura Audio S2 MANUAL Version 1.0 www.auraaudio.com Page 8 of 8...
