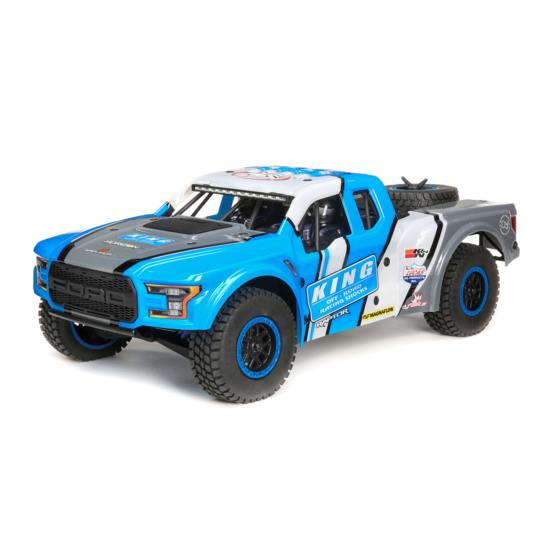

- Page 1 FORD RAPTOR LIMITED EDITION INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI Before operating this vehicle, please read all printed materials thoroughly. Horizon Hobby is not responsible for inadvertent errors in this manual.
-
Page 2: Safety Precautions And Warnings
This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. -
Page 3: Table Of Contents
BOX CONTENTS TABLE OF CONTENTS IC INFORMATION .......................11 EU COMPLIANCE STATEMENT ..................11 SAFETY PRECAUTIONS AND WARNINGS ...............2 REPLACEMENT PARTS ..................39–40 WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS ........2 OPTIONAL PARTS .......................40 BOX CONTENTS ......................3 EXPLODED VIEW ....................41–45 REGISTER YOUR LOSI PRODUCT ONLINE ..............3 COMPONENTS ......................3 REGISTER YOUR LOSI PRODUCT ONLINE QUICK START .......................3... -
Page 4: Charging The Battery
CHARGING THE BATTERY The recommended battery for the Ford Raptor Baja Rey is an 7.4V, 5000mAh 2S 30C SMART To charge the included battery: Technology LiPo battery with an IC3 connector (SPMX50002S30H3). If using a different ™ 1. Using the supplied Type-C USB cable, connect the charger to a USB power source (not battery, it should be of similar capacity, dimension and weight. -
Page 5: Transmitter
TRANSMITTER 1. Steering Wheel Controls direction (left/right) of the model 2. Throttle Trigger Controls speed and direction (forward/brake/reverse) of the model 3. ON/OFF Switch Turns the power ON/OFF 4. Throttle Trim/Dual Rate Adjusts the throttle trim/end points 5. Steering Trim/Dual Rate Adjusts the steering trim/end points 6. -
Page 6: Control Test
CONTROL TEST DRIVING PRECAUTIONS • Maintain sight of the vehicle at all times. • Inspect the vehicle for loose wheel hardware. • Inspect the steering assembly for any loose hardware. Driving the vehicle off-road can cause fasteners to loosen over time. •... -
Page 7: Dynamite ® Fuze™ 130A Sensorless Brushless Esc
DYNAMITE FUZE™ 130A SENSORLESS BRUSHLESS ESC ® SPECIFICATIONS For sensorless brushless motors: 1. Connect the ESC terminal A (typically designated by a blue wire) to the motor’s terminal Type Sensorless A (red wire on a Dynamite Fuze™ sensorless motor). This may also be changed in ®... - Page 8 ESC FUNCTIONS AND MODES 4. Press and release the SET button as needed to get to the desired menu option (the Green LED will blink corresponding to the menu item number). Programming menu items 1 The ESC includes programming options so you can adjust the way your vehicle performs. through 9 are accessible using the SET button on the ESC.
-
Page 9: Dynamite ® Fuze™ 3800Kv Brushless Motor
Resolder the motor wire with the proper equipment Motor does not run Motor wire broken Repair or replace as needed ESC damaged Contact Horizon Hobby Product Support Motor over-geared Use smaller pinion or larger spur gear ESC gets hot Driveline bound up... -
Page 10: Limited Warranty
Product Support Inquiry, or call the toll Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the free telephone number referenced in the Warranty and Service Contact Information section to “Product”) will be free from defects in materials and workmanship for a period of 2 years from... -
Page 11: Warranty And Service Contact Information
Horizon Technischer Service service@horizonhobby.eu Hanskampring 9 European Union +49 (0) 4121 2655 100 D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH *For the most up-to-date customer service contact information, please visit: www.horizonhobby.com/content/service-center-render-service-center FCC AND CANADA IC INFORMATION COMPLIANCE INFORMATION CAN ICES-3 (B)/NMB-3(B) -
Page 14: Replacement Parts
Replacement Parts Part # Description Part # Description DYN4955 Fuze 130A Sensorless Brushless WP ESC LOS233005 Front and Rear Spring Set DYNS1616 Fuze 550BL Motor, 3800Kv LOS234002 Shock Tower, Upper/Track Rod Mounts, Rear LOSA3573 1.0 Module Pitch Pinion, 13T LOS234003 Trailing Arm, Steering, Upper, Drag Link St LOSA6250 Set Screws, 4mm &... - Page 15 THE MINT 400 LIMITED EDITION • INSTRUCTION MANUAL...
-
Page 16: Exploded View
EXPLODED VIEW EXPLOSIONSZEICHNUNG VUE ÉCLATÉE DES PIÈCES VISTA ESPLOSA DELLE PARTI LOS232002 TLR5909 LOS232007 TLR5904 LOS232007 TLR6352 LOSA6250 LOSA6937 LOS43025 DYN4955 LOS235003 LOSA6937 LOS232002 LOSA3573 LOS231012 LOS232012 LOS235015 DYNS1616 LOS232004 LOS234008 TLR6313 LOS233001 LOS233001 LOS233004 LOS232007 LOSA6956 TLR5904 LOS233001 LOS233004 TLR6352 LOS233002 TLR5904... - Page 17 CHASSIS EXPLODED VIEW CHASSIS EXPLOSIONSZEICHNUNG VUE ÉCLATÉE DU CHÂSSIS VISTA ESPLOSA DEL TELAIO LOS231008 LOSB3008 VTR236025 LOS231008 LOS231013 LOS231013 LOSB3008 LOSB3008 LOS231013 LOS234003 LOS231013 LOS231008 TLR6313 LOSB3008 LOS231013 TLR6313 LOS231008 TLR5913 LOS231013 LOS231008 TLR5910 LOS231005 LOS235006 LOS231008 TLR6313 TLR5913 LOS234008 LOS234002 LOS235011 TLR5910...
- Page 18 FORD RAPTOR BAJA REY : 1:10 4WD RTR • INSTRUCTION MANUAL ® ®...
- Page 19 EXPLODED VIEW EXPLOSIONSZEICHNUNG VUE ÉCLATÉE DES PIÈCES VISTA ESPLOSA DELLE PARTI VTR236003 LOS230011 LOS230068 LOS43025 LOS230011 LOS230011 TLR255007 TLR5933 TLR5935 LOS235011 LOS235013 LOS230011 LOS234007 TLR5935 VTR236003 LOS234007 TLR6313 LOS231007 LOS234007 LOS234007 TLR5904 LOS235011 TLR5913 LOS231058 LOS235006 LOS234006 TLR5913 LOS231058 TLR5913 LOS230011 TLR5913 LOS230012...
- Page 20 Losi, Baja Rey, DSM, DSM2, DSMR, IC3, Dynamite, Fuze, Prophet and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Ford Motor Company Trademarks and Trade Dress are used under license to Horizon Hobby.
