Ram Mounts GDS Uni-Conn Assembly Instructions

Part Index
*not to scale
A

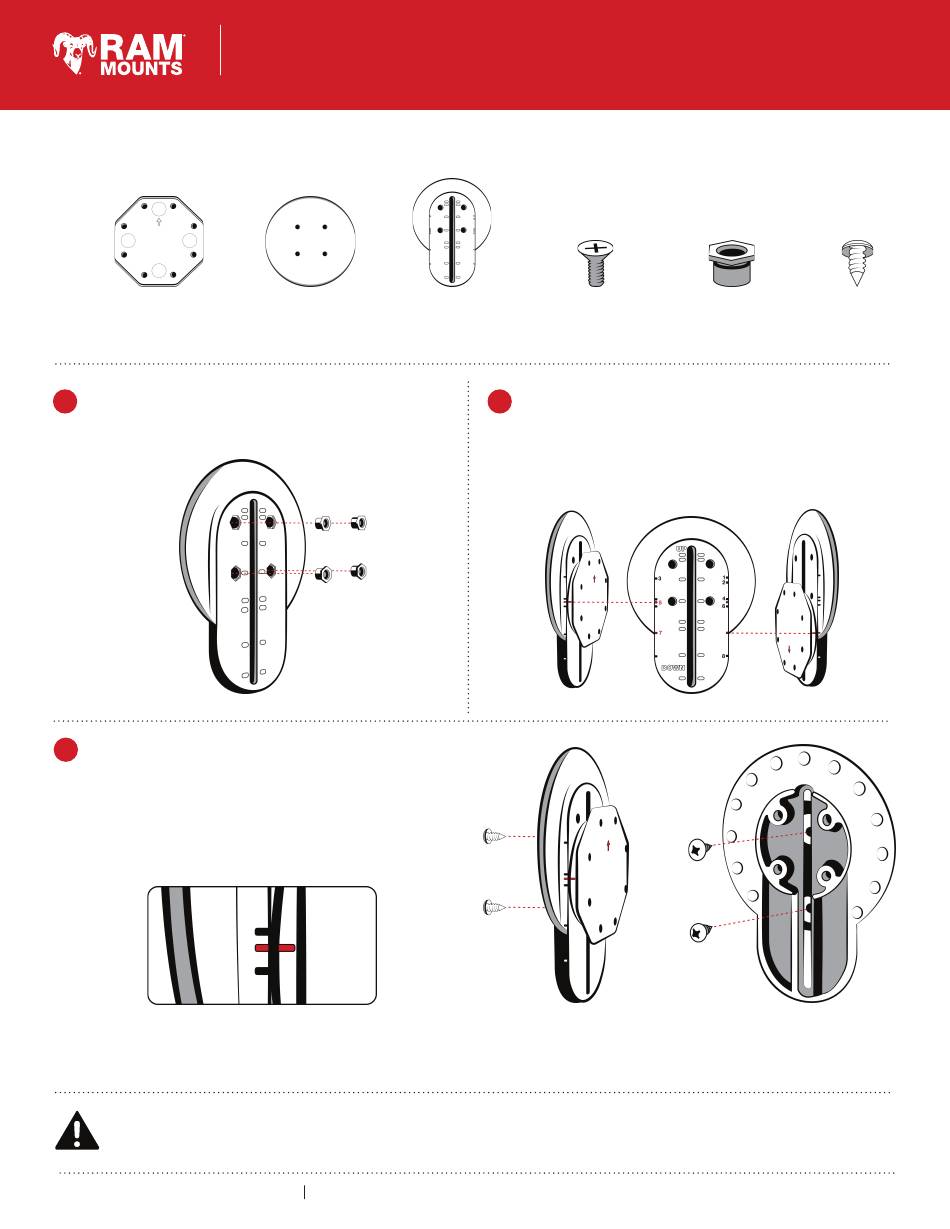

(1) Octagon Button
Insert (E) Nut Inserts into pockets of the (C) Interval
1
Plate. Nuts should press fit and remain secure when
inserted.
Connect the (A) Octagon Button to (C) Interval Plate.
3
Set direction of arrow on (A) Octagon Button to face
the "Up" or "Down" marking on the (B) Interval Plate,
based on the reference in the Number Setting Chart.
Align the notch on the side of the (A) Octagon Button
to align with the notch next to the designated number.
When in place, secure with (F) Screws.
Closeup of Aligned Notch
