Optronics SLL17ACC2B Installation And Operation Instruction

Please read all of the following instructions before installing your new WARNING LIGHT HEAD.
IMPORTANT:
Failure to install or use this product according to manufacturer's recommendations may result in
WARNING!!!!
property damage, serious injury, and/or death to those you seek to protect!
* Proper installation of this product requires the installer to have a good understanding of automotive electronics, systems and procedures.
* This product contains high-intensity LEDs. Do not stare directly into these lights. Momentary blindness and/or eye damage could result.
* Use only soap and water to clean the outer lens.
* Do not install this product or route any wires in the deployment area of your air bag. Equipment mounted or located in the air bag deployment area will damage or reduce
the effectiveness of the air bag, or become a projectile that could cause serious personal injury or death. Refer to your vehicle owner manual for the air bag deployment
area. The user/installer assumes full responsibility to determine proper mounting location, based on providing ultimate safety to all passengers inside the vehicle.
* If mounting this product requires drilling holes, the installer must be sure that no vehicle components or other vital parts could be damaged by the drilling process. Check
both sides of the mounting surface before drilling begins. Also deburr any holes and remove any metal shards or remnants. Install grommets into all wire passage holes.
* Inspect and operate this product regularly to confirm its proper operation and mounting condition. Do not use a pressure washer to clean this product.
* For this product to operate at optimum efficiency, a good electrical connection to chassis ground must be made. The recommended procedure requires the product ground
wire to be connected directly to the NEGATIVE (-) battery post.
* It is recommended that these instructions be stored in a safe place and referred to when performing maintenance and/or reinstallation of this product.
* FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS AND INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT OR VEHICLE AND/OR
SERIOUS INJURY TO YOU AND YOUR PASSENGERS!
* If this product uses a remote device to activate or control this product, make sure that this control is located in an area that allows both the vehicle and the control to be
operated safely in any driving condition.
* Do not attempt to activate or control this device in a hazardous driving situation.
Technical Specifica ons
Input Voltage 10-30VDC
1.2 A max@DC12V
Work Current
0.6 A max@DC24V
Waterproof IP67
Wire:
RED: Posi ve - Module A&C (add 5A fuse)
BLACK: Nega ve
BLUE: Pa ern Switch
YELLOW: Synchronized Func on
WHITE: Posi ve - Module B&D (add 5A fuse)
Inspect the contents to be certain that the following items are included:
A. LIGHT HEAD *1 B. Screw *2 C. M anual *1 D. M ounting Gasket *1
Recommended Operating Environment
Ambient Temperature: -30 to 50℃
Relative Humidity: 10 to 85% , non-condensing
Trouble Shooting
This warning light has been factory tested and approved. If the functions of device fail, please check the following:
1. Check connections of each wire, ensuring that no shorts have occured.
2. Plug device in and ensure that the power switch LED is on.
3. Press the pattern switch to be sure the "OFF" pattern is not selected. If the blue wire touches the black wire for over 5 seconds, it will switch to the "OFF" pattern.
It will light up again when the blue wire touches the black wire for less than 1 second.
Warranty
For warranty information regarding this product, visit www.optronicsinc.com
Installation and Operation Instructions
SLL17ACC2B WARNING LIGHT HEAD
Amber/White

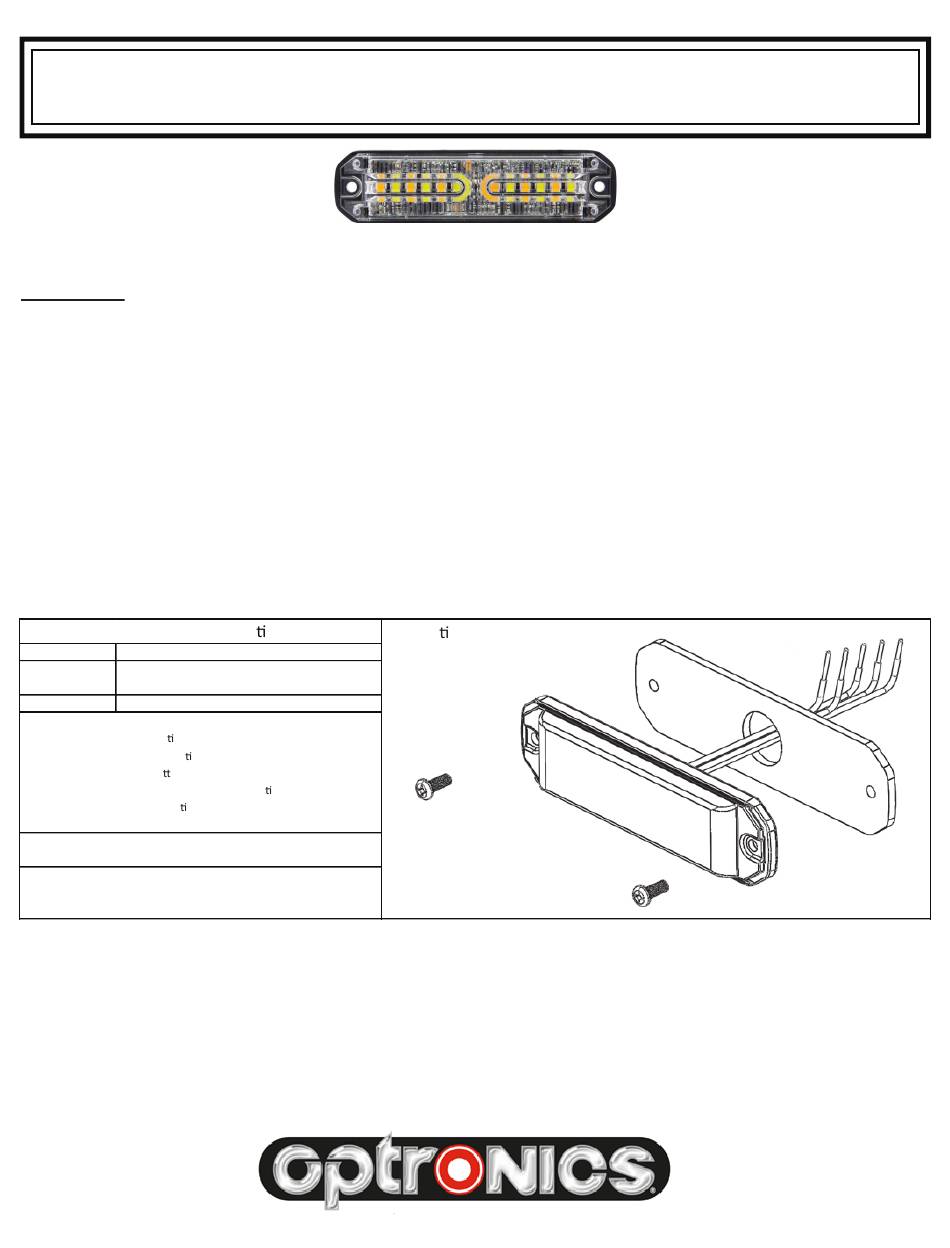

Moun ng:
6101 E Apache St, Tulsa OK 74115
Page 1 of 2
