- Page 1 Sabre G300...
- Page 2 Index 1. EU Declaration Of Conformity 2. Technical data 3. Application of tools 4. Technical data 5. Guidelines For The Operation Of 110v Sabre G230 6. Application of tools 7. Safety rules for the operation of the floor grinder 8. Operating 9.
-
Page 3: Eu Declaration Of Conformity

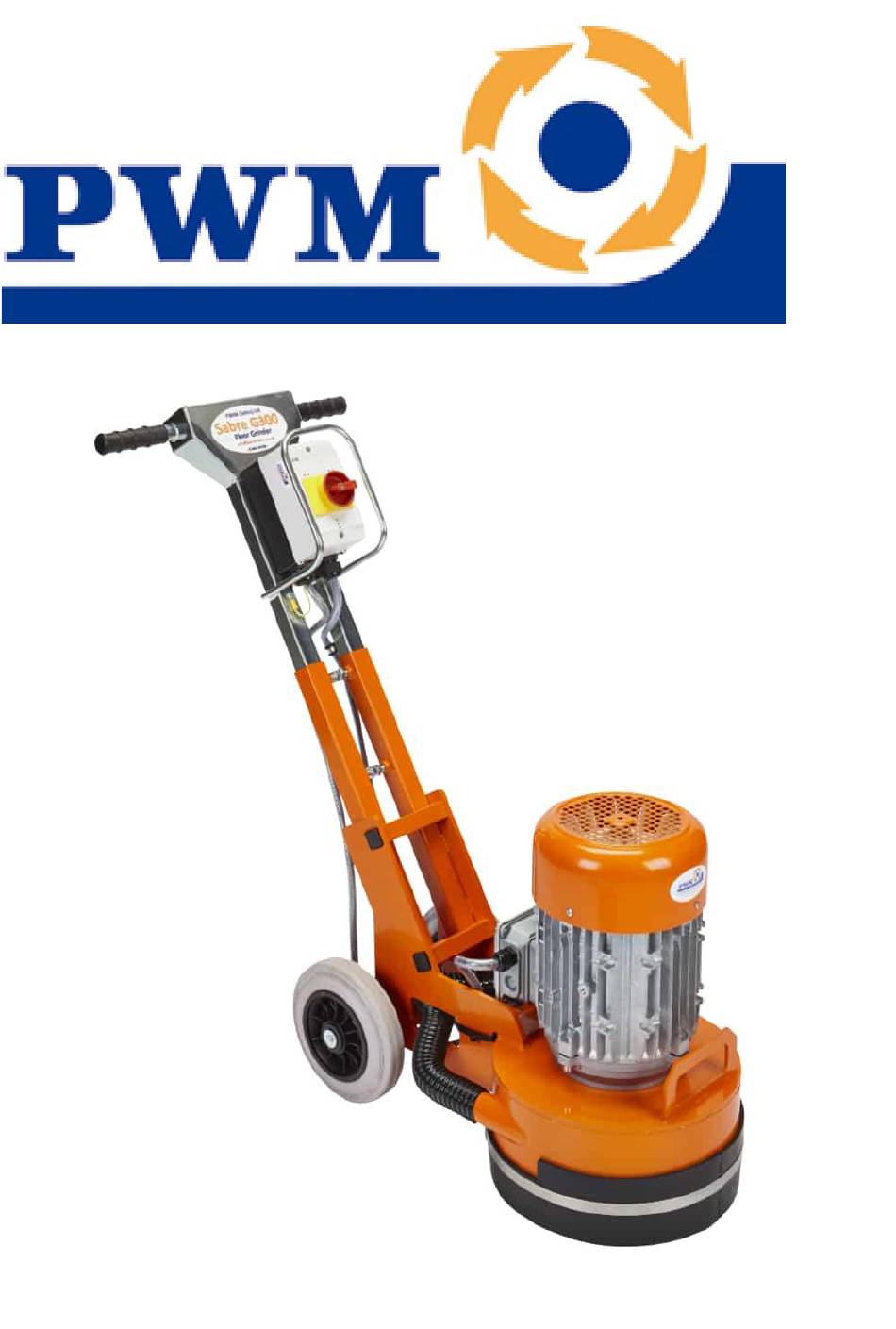

We hereby declare that the machine Type: Floor grinder Name: Sabre G300 Conforms with the following standards which have been valid at the date written below: EC-Directive 98/37/EC (89/392/EEC), in its current wording EC-Directive 89/336/EEC, in its current wording EC-Directive 73/23/EWG (89/392/EEC), in its current wording... -
Page 4: Please Read
IMPORTANT Guidelines for reliable operation of Sabre G250 / G300 PLEASE READ Quick Start Guide Always disconnect the Sabre G300 from the power supply before working on the machine or making any adjustments. Do not operate in in the wet. -
Page 5: Technical Data
Technical Data G300 Grinding width 290 mm Width 46 cm Length 94 cm Height 97 cm Weight 400v 3Phase 67kg Speed of grinding head 1500 rpm Hose 50 mm Power Europe; 400V, 4.0kW, 50 Hz Average value of acceleration a 4.2 m/s Noise level L 105 dB(A) -
Page 6: Application Of Tools
Application of tools General applications Tool Application Diamond Tungsten carbide grit Cutters Grinding of plain floors, Smooth surface Semi rough surface Rough surface Levelling of uneven surfaces Smooth surface Semi rough surface Rough surface Levelling of Steps, corners, joints etc. Renovation Repair Faults in concrete... -
Page 7: Safety Rules For The Operation Of The Floor Grinder
Safety rules for the operation of the floor grinder Attention! The Sabre G250/300 floor grinders are constructed according to existing safety rules and regulations. These technical precautions should not be removed or changed under any circumstances. While operating the machines the following points should also be kept in mind: 1. - Page 8 Operating Disconnect the grinder from the power supply! After mounting the appropriate tools, the operation of the grinder can begin. Adjust the grinder by loosening the screws of the rear wheel swing and changing its position in the slots so that the motor axis is 90°...
- Page 10 Appendix Diagrams Tools Part list...
-
Page 11: Parts List
Parts list SABRE G250/ G300 Main component list G300 Drive Plate G300 Segment Drive plate G250 Diamond Drive Plate G300 Bush Hammer Drive plate Coupling Outer - Alloy Coupling Rubber Coupling Inner 28 G250 110v Motor Side Plate Spacers 8/machine G250 214v motor Side Plate 2/machine...
