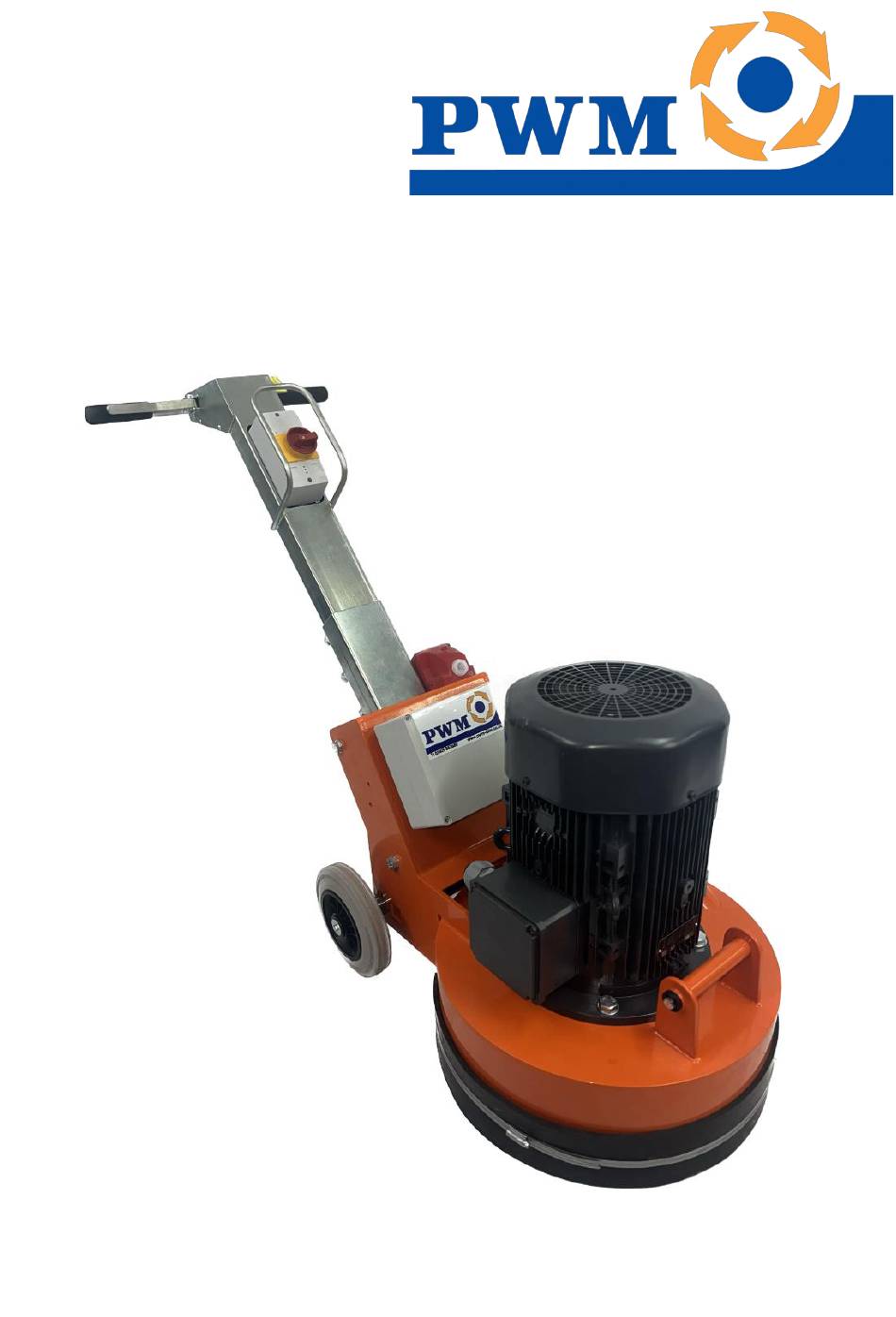

- Page 1 Sabre G500 Floor Grinder Owner’s Manual www.pwm-sales.co.uk — info@pwm-sales.co.uk — 01405 862688...
- Page 2 Sabre G500 Floor Grinder Quick Start Guide Always disconnect the Sabre G500 from the power supply before working on the machine or making any adjustments. Do not operate in in the wet. It is important that the machine is always adjusted so that the grinding head is level and parallel to the floor i.e.
-
Page 3: Table Of Contents
Index: EU-Declaration of Conformity ...4 2. Technical data ...5 3. Tool applications ...6 4. Safety rules for the operation of the Sabre G500 ...6 5. Operating ...7 6. Changing and replacing of the tools ...8 www.pwm-sales.co.uk — info@pwm-sales.co.uk — 01405 862688... -
Page 4: Eu-Declaration Of Conformity
According to the Machinery Directive 98/37/EC (89/392/EWG), Appendix 11 A We hereby declare that the machine: Type: Floor Grinder Name: Sabre G500 Conforms with the following standards confirmed as being valid at the date written below: EC-Directive 98/37/EC (89/392/EEC), in its current wording... -
Page 5: Technical Data
Weight 400 V, 3 phases 106 kg Hose 70 mm Height adjustment PRESET Power Europe 400 V, 5.5 kW, 50 Hz Average value of acceleration ah, 10.2 m/s Noise level L 105 dB(A) Noise level Leg 95 dB(A) www.pwm-sales.co.uk — info@pwm-sales.co.uk — 01405 862688... -
Page 6: Tool Applications
This machine has been designed and is intended for the grinding of flat, horizontal, dry surfaces that are typically concrete, or asphalt and with or without a coating. For optimum performance and compatibility always use tools supplied by PWM. Operation of the grinder outdoors is only permitted if the weather is dry. -
Page 7: Operating
Operation: After mounting the appropriate tools, the operation of the SABRE G500 grinder can begin. Connect the hose of the dust collector to the hose port on the grinder. Ensure the grinding head is level i.e. the motor axis is at 90 degrees to the floor. -
Page 8: Changing And Replacing Of The Tools
Attention ! Before working on the grinder allow the motor to come to a complete stand still and disconnect from the mains. Tilt the machine onto the back wheels and rest it on the handlebar. All tools are fixed with 3 screws onto the tool bracket. Loosen and remove the screws with a 6 mm Allen key. - Page 9 Sabre G500 Lovato soft start. Red warning light sequence; 2 Flashes – wrong phase sequence 3 Flashes – line voltage out of range 4 Flashes – frequency out of range 5 Flashes – locked rotor condtion 6 Flashes – Ramp up time 7 Flashes –...
