- Page 1 KEZERS Optical Level Manual KL-36X For FAQs and more information,please contact Kezers.service@gmail.com...
- Page 2 Notice: 1. For a good state,the instrument should be checked and adjusted by responsible person especially After long time storage or transportation. 2. Before measuring,please conform instrument sunning properly. 3. After working,please clean the instrument and put it into cases. 4.
-

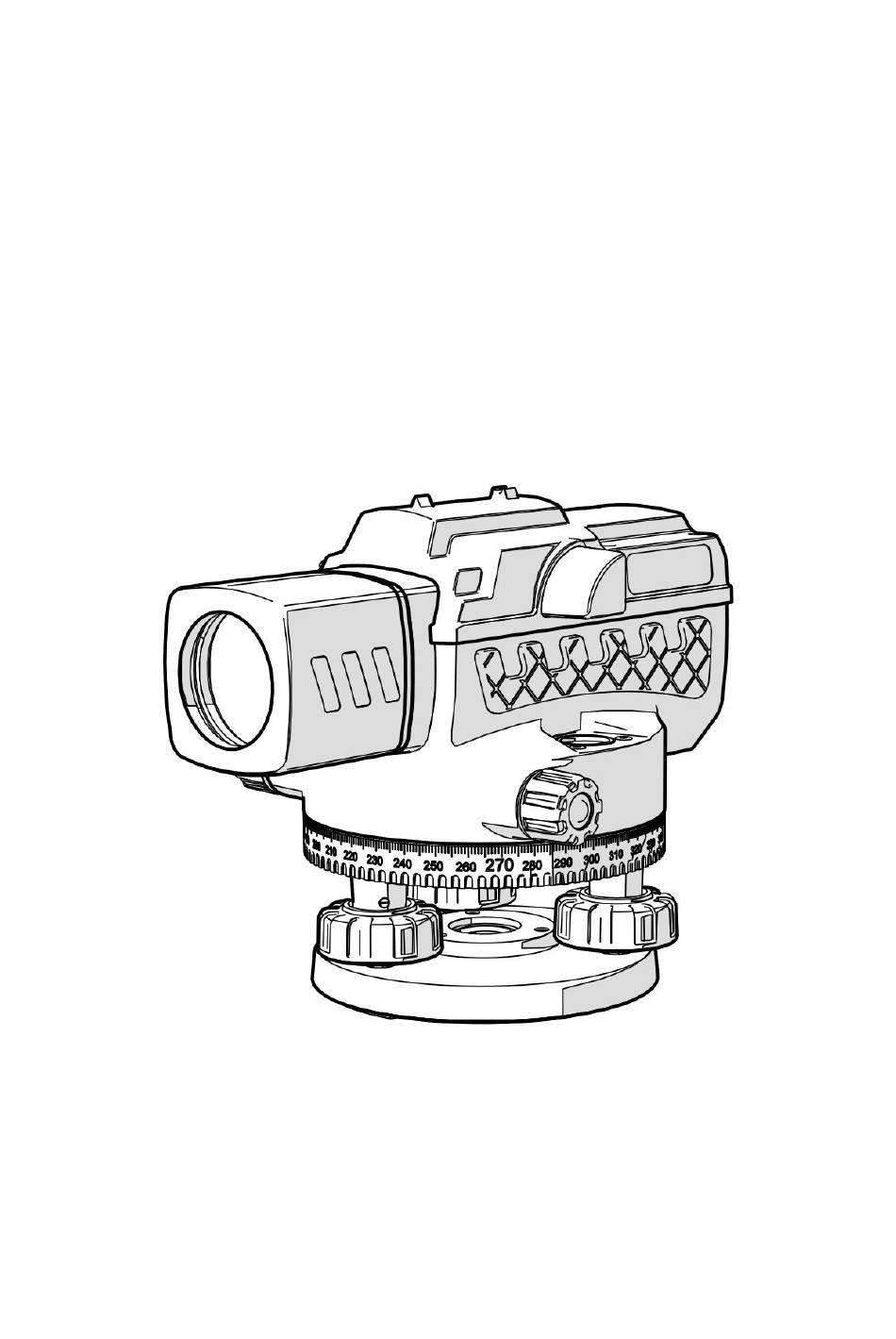

Page 3: Important Parts
1. Important Parts 2. Operation 2.1 Setting Up the Instrument 1) Extend the tripod legs until the head is roughly at eye level then re-tighten the tighten screw. 2) Make sure that the tripod head is approximately level fix the tripod shoes firmly into the ground.(Figure 2) - Page 4 3) Hold the instrument on the tripod head and tighten the Centering Screw.( Figure 3) 4) Adjust the leveling foot screws until the bobble is exactly centered in the center circle. 2.2 Sighting and Focusing 1) Turn the eyepiece of the telescope to make the graduation line on the reticle being clear.(Figure 4) 2) Sight the staff through the peep sight.
-
Page 5: Height Difference
3. Measure Method 3.1 Height Difference 1) Set up the instrument at a point approximately halfway between point A and point B. (Figure 6) 2) Posit the staff vertically at point A,take the reading a (back-sight). (Example a=1.865m) 3) Then sight the staff at point B and obtain reading b(fore-sight).(Example b=1.166m) 4) The difference a-b is the AB height difference “h”... -
Page 6: Horizontal Angle
3.3 Horizontal Angle 1) Direct instrument to staff A and turn Horizontal Circle to “0”.(Figure 8) 2) Point instrument to staff B. 3) Read off Hz-angle from Horizontal Graduation Circle.(Example : Hz=32°) 4. Check and Adjustment 4.1 Circular Level 1) Adjust the leveling foot screws to center the bubble in the circular level. 2) Turn the instrument 180°the bubble in the circular level should be centered,if the bubble does move,must be adjust as follows: a. - Page 7 b. Eliminate the remaining half shift with the circular level adjustment screws,using the Allen key.(Figure 9b) c. Repeat the above check and adjustment until no bubbles shift occurs for any telescope direction. 4.2 Cross-lines of reticle 1）Set the instrument at a point halfway between points A and B spaced about 30-40m apart take reading a ,and b .
-
Page 8: Technical Data
Turn the Adjustment Screw until the middle hair gives the nominal reading(b ’). (Figure 12) 5）Repeat the operation until the reading |b ’-b |<3mm 5. Technical Data Mode KL-36X Image Erect Magnification Valid Objective Aperture 36mm Field of View 1°20’ Min Focusing Distance 0.3m...
