ERA-RXPG Plugin Receiver
Helpful Notes
• Dimensions: 4.75'' H x 2.75'' W x 1.55'' D.
• The unit plugs into a standard 120V outlet.
• The ERA-RXPG has three operational modes: strobe only, sound only,
and strobe + sound (figure 3).
• The ERA-RXPG has 12 different melodies to choose from.
• The ERA-RXPG may be programmed with up to 12 ERA transmitters.
Each transmitter may have a distinct melody.
• There is no limit to the number of ERA receivers that may be used with a
compatible ERA transmitter.
An ERA transmitter's range (line of site) to the receiver is 4,000 ft.
•
The plug for the ERA-RXPG is UL-Listed.
•
Volume Control:
The volume button is located on the side of the unit (figure 1). Pushing it will
scroll through four (4) levels of volume control. Pushing it a fifth (5
turn the unit off.
ERA-RXPG Modes of Operation:
The ERA-RXPG has three (3) modes of operation. Change the mode of operation
by moving the selector switch located on the side of the receiver (see Figure 1.)
1) In the top position, the receiver will flash a bright LED strobe light for
approximately 12 seconds (no sound).
2) In the middle position, the receiver will flash the strobe light and play the
melody programmed to the receiver.
3) In the bottom position, the receiver will play the selected melody (the
strobe will not flash).
Pair Transmitter to the Receiver:
All ERA transmitters are compatible with the ERA-RXPG receiver, which
programmed to operate with an ERA-compatible transmitter.
1. Ensure the ERA-RXPG is plugged into a standard 120V wall outlet.
2. On the ERA-RXPG receiver, hold down the "mode" button (lower button
in figure 1) until you hear a short tone sound & the red LED (inside the
front lens cover) begins to blink. This denotes the unit is in programming
mode. Release the button.
3. The first melody is the "ding-dong" sound. If you want to use this
melody, skip to the next step. Otherwise, scroll through available
th ) time will
melodies by pressing the melody selector button (figure 1). Stop pushing
this button when you hear the sound you want.
4. Trigger the transmitter. Consult the transmitter's user manual for
instructions on how to trigger the transmitter. The receiver will play a
quick chime sound, notifying the transmitter is programmed to the
receiver. The red LED should still be blinking.
5. To program a second transmitter (push button, door contact, motion
sensor, or driveway sensor), push the melody selector button (the button
on top) to scroll through available melodies. Once you have the sound
you want, stop pressing the melody selector button and repeat step 4
above, triggering the sensor/transmitter.
6. Once you have programmed all the transmitter(s), exit programming
mode by holding down the "mode" button until you hear a short tone
sound & the red LED disappears (approx. 3 seconds).
Test the Programming of Transmitter to Receiver:
must be
• Ensure the ERA-RXPG receiver is plugged in & the battery is installed in
the ERA transmitter.
Trigger the transmitter.
•

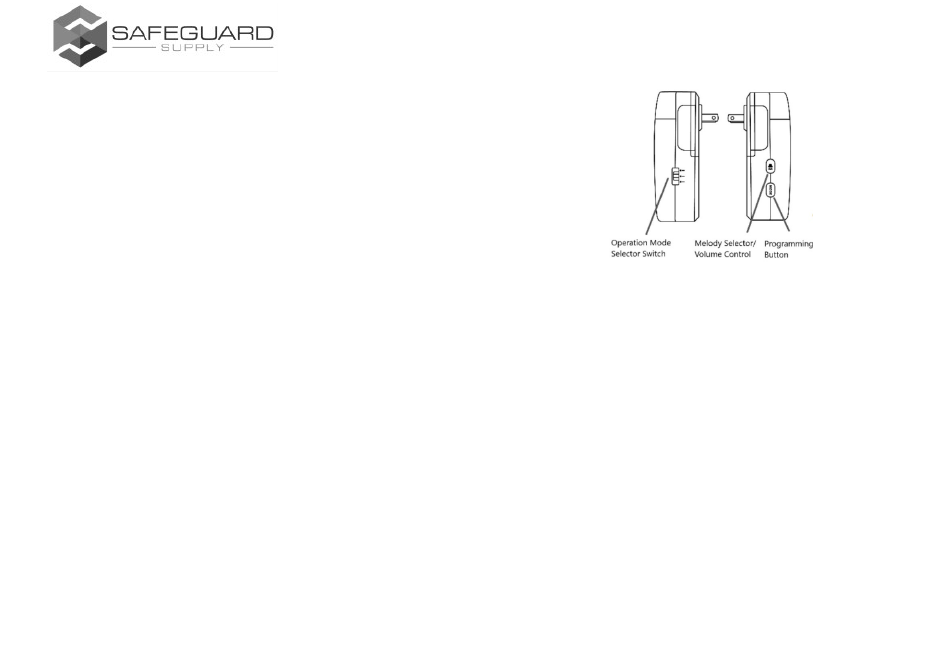

Figure 1
