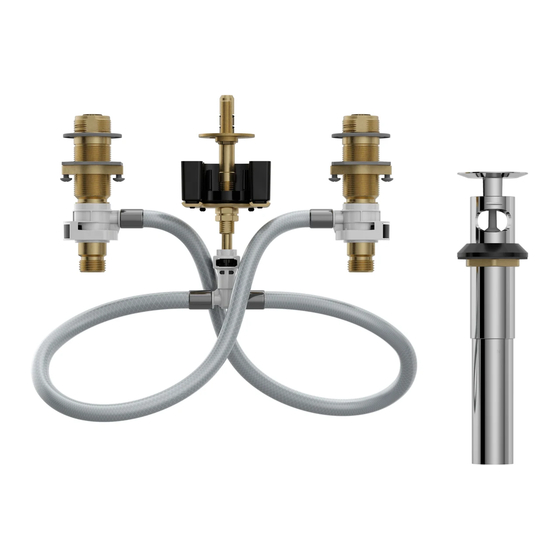

DESCRIPTION
• Quick connect installation - Duralock
• Brass construction
• 1/2" IPS connections
• Includes metal pop-up type waste assembly
OPERATION
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
CARTRIDGE
• 1234 cartridge design with nonmetallic and stainless steel materials
STANDARDS
• Third party certified to meet: ASME A112.18/CSA B125.1
and all applicable requirements referenced therein
• NSF 61/9 & 372
• Complies with California Proposition 65 and with
the Federal Safe Drinking Water Act
WARRANTY
• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
• 5 year limited warranty when used in a commercial installation
• 10 year limited warranty when used in a multifamily installation
Quick Connect
Hose Assy.
Rev. 04/2023
8" (203mm)
16" (406mm)
Centers

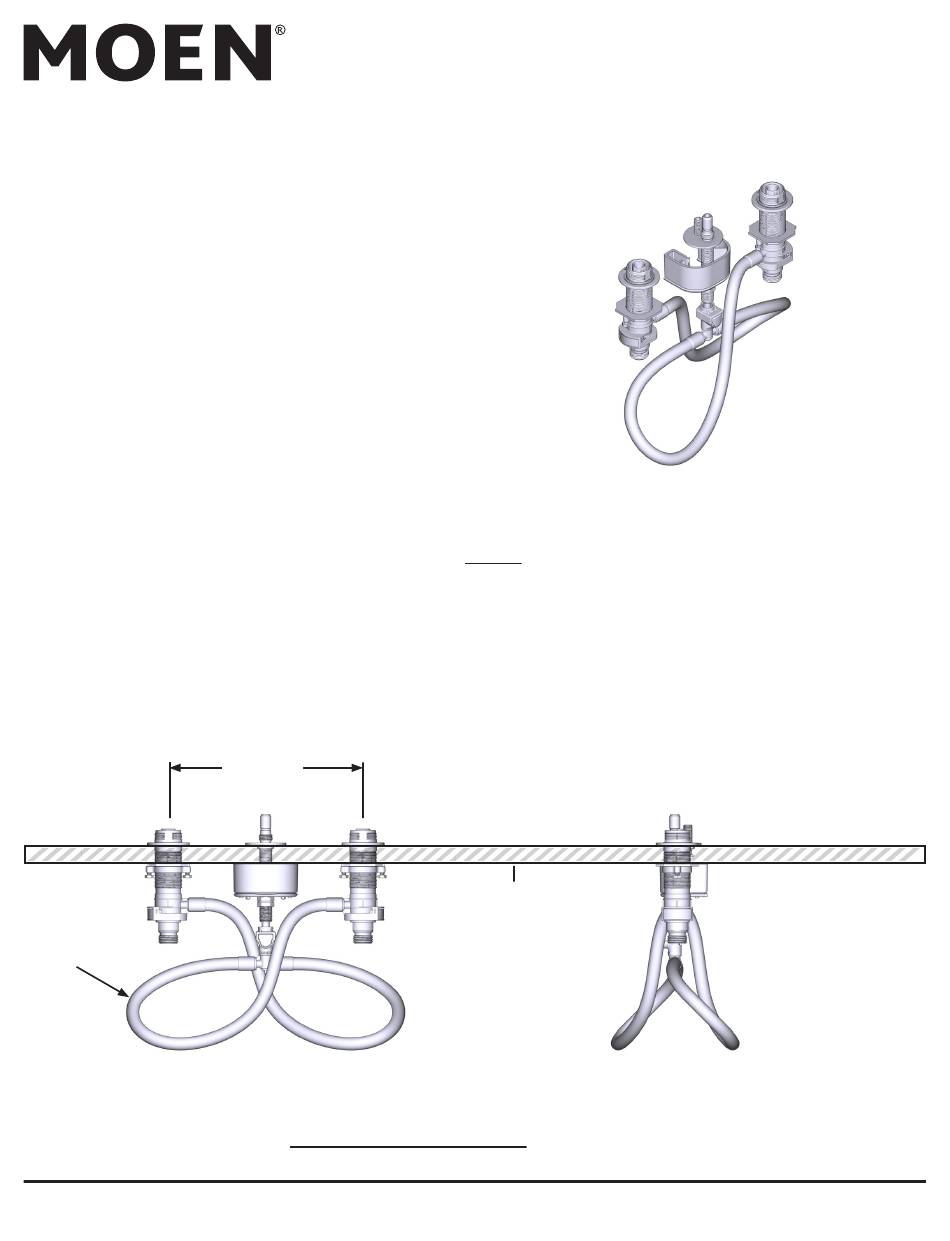

CRITICAL DIMENSIONS
SPECIFICATIONS
M·PACT VALVE
Widespread Lavatory Rough-In Valve
MODELS: 9000, 69000 (69000-Bulk Packed 6 per carton)
NOTE: FOR DECK THICKNESS 1-1/2" to 3", USE SERVICE KIT #175709.
VALVES INSTALL THROUGH 1-1/4" DIA. HOLE.
NOTE: SPOUT INSTALLS THROUGH 1-1/8" MIN. DIA. HOLE.
VALVES INSTALL THROUGH 1-1/8" MIN. DIA. HOLE.
NOTE: MAXIMUM HOLE DIA. 1-1/2"
1-1/2" (38mm) max.
deck thickness
DO NOT SCALE
1-800-BUY-MOEN
www.moen.com
