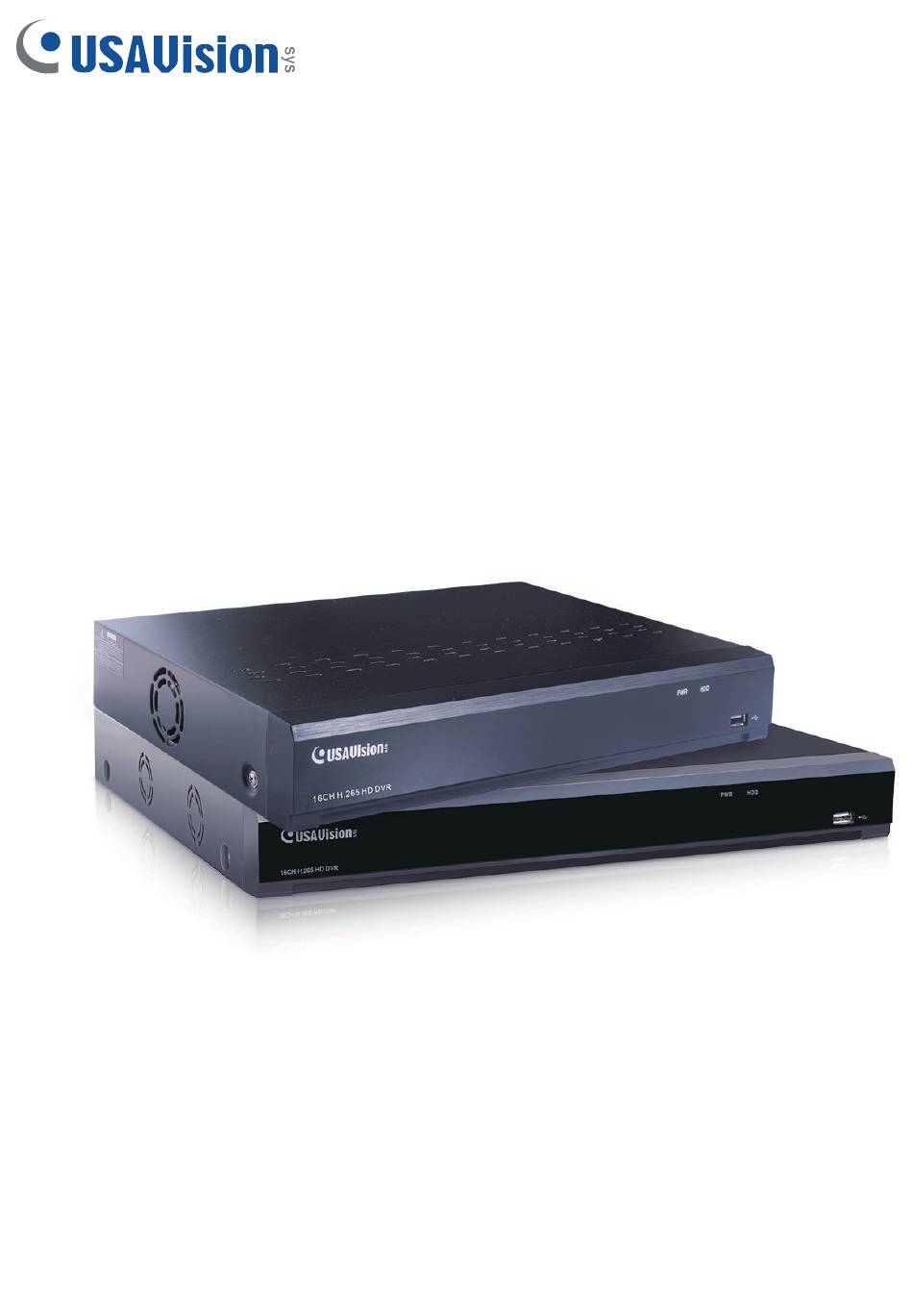

- Page 1 Quick Start Guide UA-XVL1611 / XVR1620 Before attempting to connect or operate this product, UVSUAAI-QG-B please read these instructions carefully and save this manual for future use.
- Page 2 Every effort has been made to ensure that the information in this manual is accurate. USAVision makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
-
Page 3: Table Of Contents
1.2 UA-XVL1611 Packing List..................1 1.2 Overview ........................2 1.2.1 UA-XVR1620 Front View ..................2 1.2.2 UA-XVR1620 Rear View................... 3 1.2.3 UA-XVL1611 Front View ................... 4 1.2.4 UA-XVL1611 Rear View.................... 4 2. Installation ......................6 2.1 HDD Installation......................6 ... -
Page 4: Introduction
1. Introduction Welcome to the UA-XVL1611 / XVR1620 Quick Start Guide. In the following sections, you will learn about the basic installations and configurations. For more details, see UA-XVL1611 / XVR1620 User’s Manual. 1.1 UA-XVR1620 Packing List UA-XVR1620 Audio Cable ... -
Page 5: Overview
1.2 Overview 1.2.1 UA-XVR1620 Front View Item Description Power LED Show constant green when power is supplied. Blink red when the HDD is writing or reading data. HDD LED No LED when no HDD is installed. USB port Connect the supplied mouse or USB flash memory. -
Page 6: Ua-Xvr1620 Rear View
1.2.2 UA-XVR1620 Rear View Item Description e-SATA Connect to e-SATA HDD for recording & backup. Audio Input (1-4) Connect with audio input signals, RCA port. Audio Input (5-16) Connect to the input ports with supplied connector. CVBS Connect to your TV or monitor, BNC port. Audio Output Audio signal output, RCA port. -
Page 7: Ua-Xvl1611 Front View
1.2.3 UA-XVL1611 Front View Item Description Power LED Show constant green when power is supplied. Blink red when the HDD is writing or reading data. HDD LED No LED when no HDD is installed. USB port Connect the supplied mouse or USB flash memory. - Page 8 Load default settings of the DVR. Reset Note: The Reset button is below the USB port. Poke the Reset button to load default settings. Power Connect to the supplied power adaptor.
-
Page 9: Installation
2. Installation 2.1 HDD Installation Follow the instructions below to install the HDD in the DVR for video data storage. Caution: DO NOT install or remove the hard drive while the power is turned ON. Note: The DVR supports 3.5” and 2.5” SATA HDD of up to 10 TB only. The following procedures are for reference only. -
Page 10: Connection Diagram
2.2 Connection Diagram Speaker 2.3 Power Supply Connection Caution: Use only the supplied power adapter of the DVR. Connect one end of the power adapter to the power connector on the back of the DVR. Plug the other end of the power adapter into the wall outlet. For specific models, press the Power Switch to turn on the power. -
Page 11: Getting Started
3. Getting Started 3.1 Start Wizard 3.1.1 Start Wizard Click Start Wizard to proceed to the next step. 3.1.2 Connecting IP Cameras After finishing setting Network Configuration and Date and Time, this page appears. - Page 12 Click Search to search IP cameras in the same network. Choose the IP camera(s) you want to add, and then click icon to add to the DVR. Or, click button to manually add individual IP camera to a single channel. ...
-
Page 13: Live View Overview
3.2 Live View Overview 3.2.1 Main Window Camera Title To display the camera title A-: This indicates that the camera connected is an AHD camera T-: This indicates that the camera connected is a TVI camera C-: This indicates that the camera connected is a CVI camera IP: This indicates that the camera connected is an IP camera State Icon : Trigger Intelligence Detection... - Page 14 User name or password error: IPC username and password are wrong Click to open menu to add IP camera Quick Add Click to edit current IP camera For more details, see 4.2 Live View Screen Overview in UA-XVL1611 / XVR1620 User’s Manual.
-
Page 15: Task Menu Bar
3.2.2 Task Menu Bar Click to open the Start Menu. Click to choose different layouts for live view. More Layout: Click to choose more layouts for live view. Auto SEQ: Click to start viewing channels in a sequence. Playback: You can choose to play the latest recording for all channels from the beginning of the day, or you can choose the playback from the latest 5s, 10s, 30s, 1Min, 5Min. - Page 16 Click to play the last 5 minutes of recording of this channel. Click to enter PTZ control panel. Click to zoom-in the channel. When the icon appears, press and hold the left button of your mouse to drag the area you want to zoom in. Click to adjust the image color of the channel.
-
Page 17: Recording Playback
Select the desired files and click Start Download to download the video clips. Playing Video Clips Exported Locally or from the Web Interface of UA-HD DVR Install one of the following players: USAVision Player VLC Media Player ... -
Page 18: Remote Access Via Web Client
4. Remote Access via Web Client Use the Web Client to remotely access your DVR at any time via a PC. Before you access the Web Client, ensure that your PC’s system meets the basic requirements and that the network settings of the DVR are configured properly. 4.1 Basic System Requirements Item Minimum... -
Page 19: Looking Up The Dynamic Ip Address
4.2 Looking Up the Dynamic IP Address By default, when the DVR is connected LAN with DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address. Download and install the UVS Device Utility program here. On the UVS Device Utility window, click Search to search for the devices connected in the same LAN. -
Page 20: Web Client Manager Live Interface
4.3 Web Client Manager Live Interface Once you log in the Web Client Manager interface, you will see the live view as shown below. 1- Channel: Quick turn on camera channel Click icon show channels list. Click icon shut up channels list. Turn on/off live streaming. - Page 21 3- Main menu: Preview: Check realtime video on camera. Playback: Check the records in DVRHDD drive. Remote setting: DVR menu to set up device parameters. Local setting: Set up Web records and picture save location, select video “file type”. 4- Information: Mouse stop, check system user, IE version and plug-in version 5- Exit.
- Page 22 8- Color setting: Click to hidden the settings. 9- PTZ Control: Click to show/hidden PTZ.
- Page 23 PTZ Control Plug-in...
- Page 24 Watch Mode： Time Interval: watch mode waiting time interval, the time since stop watch mode operation. Mode：select watch mode, default/preset/line scan/tour/pattern scan Click to start cruise. Line Scan: to record the start Area scan: Click position , after moving PTZ, click ；...
- Page 25 Pattern Scan： to record the cruise Record: Click route. to stop record Click to cruise the recorded Cruise: Click route Live View Control Buttons: switch windows modes Open all of channels Close all of channels Original: Display preview with original scale Stretch: Stretch the live window to suitable every scale screen full screen Manual record: Click the manual recording of all the display channels.
-
Page 26: Upgrading Firmware
5. Upgrading Firmware You can upgrade the firmware on the device remotely through UVS Device Utility. Follow the instructions below. Download and install the UVS Device Utility program here. On the UVS Device Utility window, click Upgrade and check the box of the device you wish to upgrade the firmware on.
