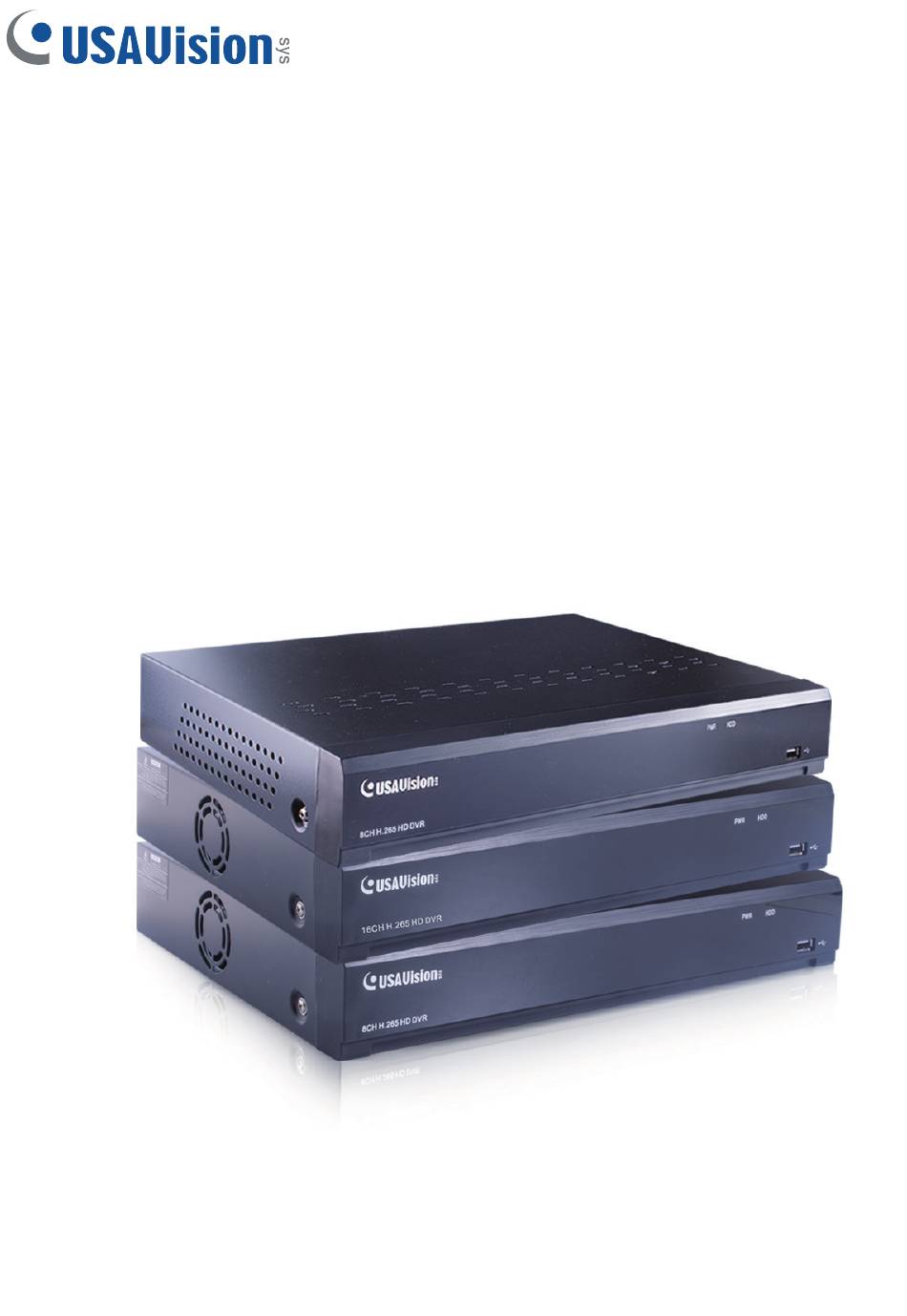

- Page 1 Quick Start Guide UA-XVL810, UA-XVL1610, UA-XVR810 Before attempting to connect or operate this product, UVSUAV102-QG-A please read these instructions carefully and save this manual for future use.
- Page 2 © 2022 GeoVision, Inc. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of GeoVision. Every effort has been made to ensure that the information in this manual is accurate.
-
Page 3: Table Of Contents
Contents 1. Introduction ......................1 1.1 Packing List ......................1 1.2 Overview ........................ 2 1.2.1 UA-XVL810 Font Panel .................... 2 1.2.2 UA-XVL810 Rear Panel .................... 3 1.2.3 UA-XVL1610 Front View ................... 4 1.2.4 UA-XVL1610 Rear View ................... 5 1.2.5 UA-XVR810 Front View .................... 6 1.2.6 UA-XVR810 Rear View ..................... -
Page 4: Introduction
Welcome to the UA-XVL1610, UA-XVR810 Quick Start Guide. In the following sections, you will learn about the basic installations and configurations. For more details, see UA-XVL1610, UA-XVR810 User’s Manual. 1.1 Packing List UA-XVL810 / UA-XVL1610 / USB mouse UA-XVR810 3.5” HDD screw Kit Power adapter (DC 12V, 2A, 24W) ... -
Page 5: Overview
1.2 Overview 1.2.1 UA-XVL810 Font Panel Item Description Power LED Show constant green when power is supplied. Blink red when the HDD is writing or reading data. HDD LED No LED when no HDD is installed. USB port Connect the supplied mouse or USB flash memory. -
Page 6: Ua-Xvl810 Rear Panel
1.2.2 UA-XVL810 Rear Panel Item Description Audio Input Connect with audio input signals, RCA port. CVBS Connect with video input signals, BNC port. Audio Output Audio signal output, RCA port. Video Input Connect with video input devices, BNC port. HDMI Connect to your digital TV or monitor with HDMI input. -
Page 7: Ua-Xvl1610 Front View
1.2.3 UA-XVL1610 Front View Item Description Power LED Show constant green when power is supplied. Blink red when the HDD is writing or reading data. HDD LED Show no LED when no HDD is installed. USB port Connect the supplied mouse or USB flash memory. -
Page 8: Ua-Xvl1610 Rear View
1.2.4 UA-XVL1610 Rear View Item Description Video Input Connect with video input devices, BNC port. Audio Input Connect with audio input signals, RCA port. Audio Output Audio signal output, RCA port. Connect to your TV or a monitor with VGA input. HDMI Connect to your digital TV or monitor with HDMI input. -
Page 9: Ua-Xvr810 Front View
1.2.5 UA-XVR810 Front View Item Description Power LED Show constant green when power is supplied. Blink red when the HDD is writing or reading data. HDD LED No LED when no HDD is installed. USB port Connect the supplied mouse or USB flash memory. -
Page 10: Ua-Xvr810 Rear View
1.2.6 UA-XVR810 Rear View Item Description CVBS Connect with video input signals, BNC port. Audio Output Audio signal output, RCA port. Video Input Connect with video input devices, standard BNC port. Audio Input Connect with audio input signals, RCA port. Load default settings of the DVR. -
Page 11: Installation
2. Installation 2.1 HDD Installation Follow the instructions below to install the HDD in the DVR for video data storage. Caution: DO NOT install or remove the hard drive while the power is turned ON. Note: The DVR supports 3.5” and 2.5” SATA HDD of up to 8 TB only. The following procedures are for reference only. -
Page 12: Connection Diagram
2.2 Connection Diagram Speaker 2.3 Power Supply Connection Caution: Use only the supplied power adapter of the DVR. Connect one end of the power adapter to the power connector on the back of the DVR. Plug the other end of the power adapter into the wall outlet. For specific models, press the Power Switch to turn on the power. -
Page 13: Getting Started
3. Getting Started 3.1 Start Wizard 3.1.1 Start Wizard Click Start Wizard to proceed to the next step. 3.1.2 Connecting IP Cameras After finishing setting Network Configuration and Date and Time, this page appears. - Page 14 Click Search to search IP cameras in the same network. Choose the IP camera(s) you want to add, and then click icon to add to the DVR. Or, click button to manually add individual IP camera to a single channel. ◼...
-
Page 15: Live View Overview
3.2 Live View Overview 3.2.1 Main Window Name Description Camera Title A-: This indicates that the camera connected is an AHD camera. T-: This indicates that the camera connected is a TVI camera. C-: This indicates that the camera connected is a CVI camera. IP: This indicates that the camera connected is an IP camera. - Page 16 Camera Quick Left-click on the screen to quickly access the camera’s toolbar. Toolbar Refer to 3.2.3 Camera Quick Toolbar in the Quick Start Guide for details. admin: To switch user. Start Menu Search: Search & Playback. Setup: DVR System Setup. Lock Screen: Lock and unlock screen.
-
Page 17: Task Menu Bar
3.2.2 Task Menu Bar Click to open the Start Menu. Click to choose different layouts for live view. More Layout: Click to choose more layouts for live view. Auto SEQ: Click to start viewing channels in a sequence. Playback: You can choose to play the latest recording for all channels from the beginning of the day, or you can choose the playback from the latest 5s, 10s, 30s, 1Min, 5Min. - Page 18 Click to play the last 5 minutes of recording of this channel. Click to enter PTZ control panel. Click to zoom-in the channel. When the icon appears, press and hold the left button of your mouse to drag the area you want to zoom in. Click to adjust the image color of the channel.
-
Page 19: Remote Access Via Web Client
4. Remote Access via Web Client Use the Web Client to remotely access your DVR at any time via a PC. Before you access the Web Client, ensure that your PC’s system meets the basic requirements and that the network settings of the DVR are configured properly. 4.1 Basic System Requirements Item Minimum... -
Page 20: Looking Up The Dynamic Ip Address
4.2 Looking Up the Dynamic IP Address By default, when the DVR is connected LAN with DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address. Download and install the UVS Device Utility program here. On the UVS Device Utility window, click Search to search for the devices connected in the same LAN. -
Page 21: Web Client Manager Live Interface
4.3 Web Client Manager Live Interface Once you log in the Web Client Manager interface, you will see the live view as shown below. Name Description Click button to display the Channel List. Channel List Click button to hide the Channel List. Play. - Page 22 Live View Stream Mainstream: View all live videos using high-quality mainstream Options video settings. SubStream: View all live videos using middle-quality sub-stream video settings. MobileStream: View all live video using lower-quality mobile stream video settings to conserve bandwidth. Available for IP channels only.
-
Page 23: Upgrading Firmware
5. Upgrading Firmware You can upgrade the firmware on the device remotely through UVS Device Utility. Follow the instructions below. Download and install the UVS Device Utility program here. On the UVS Device Utility window, click Upgrade and check the box of the device you wish to upgrade the firmware on.
