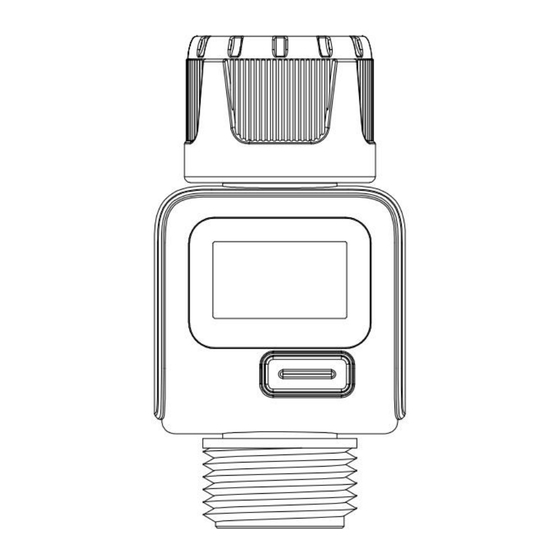

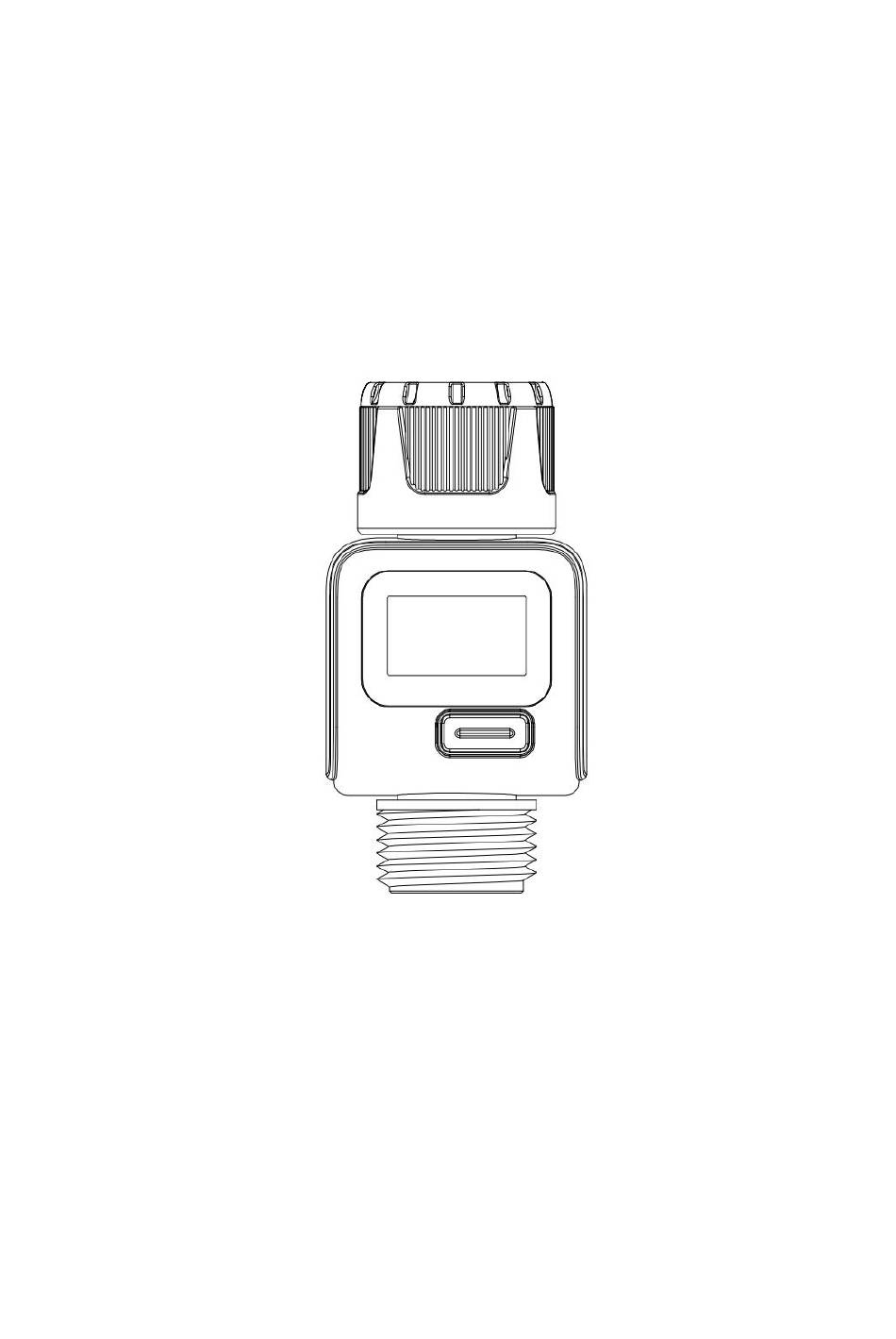

- Page 1 Geevon Water Flow Meter FML-04 ______________________________ USER MANUAL...
-
Page 2: Product Overview
PRODUCT OVERVIEW... -
Page 3: Specifications
SPECIFICATIONS Waterproof IPX6 Water Flow Rate 1-45.5L/Min (12.0GAL/Min) Max Water Consumption 99999L/99999GAL Working Pressure 0.5-10.0Bar Max Flow 45.5L/Min or 12.0GAL/Min Measurement Tolerance ±5% Water Temperature 3℃ - 65℃ Suitable for Sprinkler, 3/4 inch standard faucet,hose * When the maximum flow rate exceeds 45.5L/Min or 12.0GAL/Min, LCD displays HHHHH. QUICK INSTALLATION... - Page 4 OPERATIONS 4 MEASUREMENT MODE Press the button directly, the display switches to next display mode. a）Consumption Mode: Measure the single water consumption. Press the button shows last time water usage. Hold the button 3 seconds to reset the consumption. At next watering, the display starts at 0 again. b）Flow Mode: Shows the current flow in GAL/Min or L/Min.
-
Page 5: Other Functions
OTHER FUNCTIONS Switch L & GAL: Under FLOW MODE, press and hold the button for 3sec to switch the L/Min or GAL/Min. Reset: Hold the button in Consumption/Average/Total mode for 3sec, the display will reset to 0. Standby: No display (Without any operation or flow longer than 1min).
