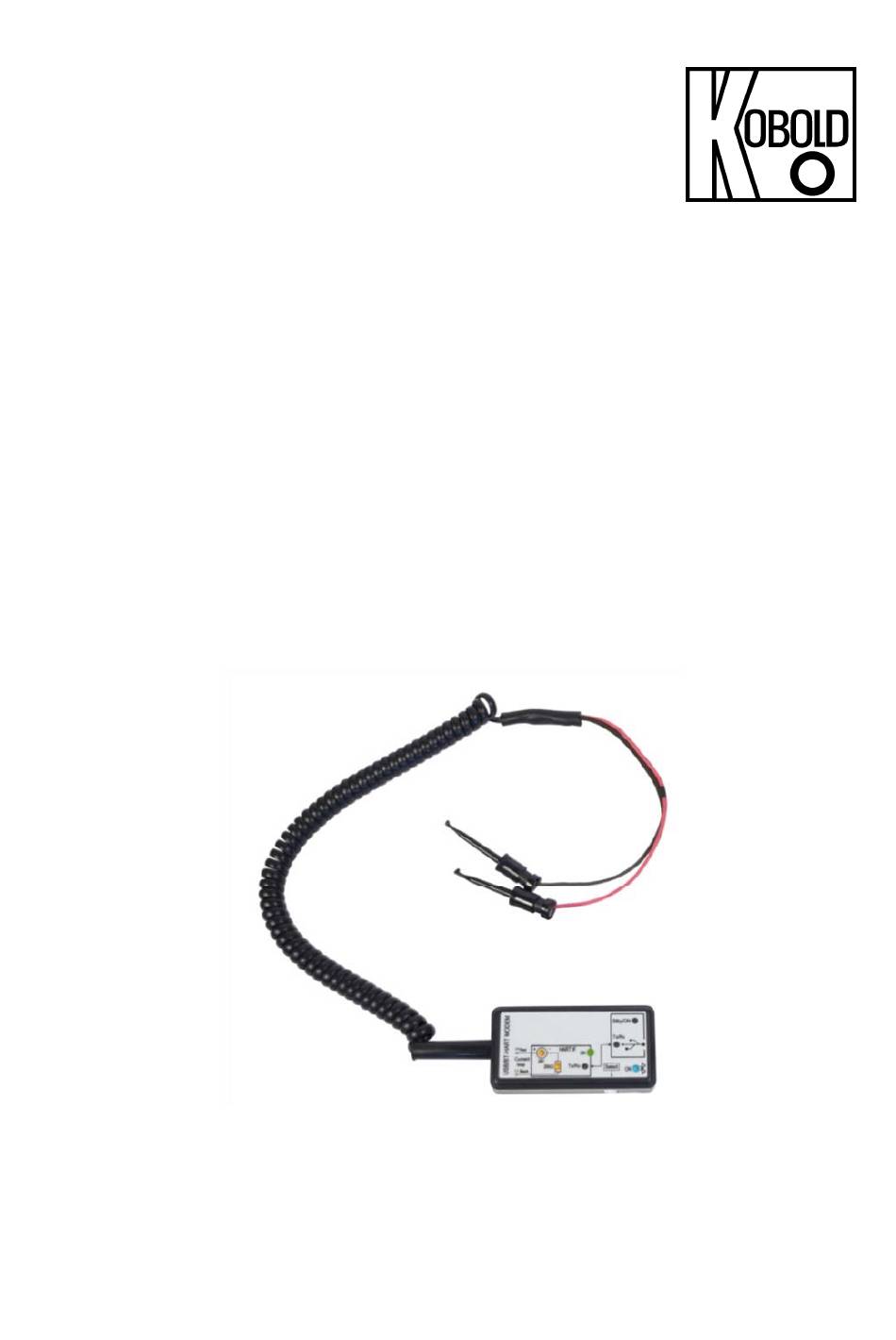

- Page 1 Operating Instructions ® HART -USB Modem Model: HARTCOM...
-
Page 2: Table Of Contents
® HART /USB Interface Function ............5 Current Loop Power Supply 24 V, additional Function (only for model HARTCOM-1) ..................6 Maintenance and Repair ................7 Storage Conditions ..................7 Technical Information ..................8 ... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Application
-capable transmitters that use standard HART ® communication. To enable communication through the USB 1.1. or USB 2.0. port of the PC a driver program (FT 232 RL) is needed, which can be downloaded from www.kobold.com product page. page 4 HARTCOM K01/0624... -
Page 5: Wiring, Operation
The modem should be connected to a HART ® field device by 2 pieces of KLEPS2 measuring clamps. The HARTCOM does not have surge protection, thus use of an adequate lightning protection that does not affect standard HART ® signal transmission is advised. -
Page 6: Current Loop Power Supply 24 V, Additional Function (Only For Model Hartcom-1)
HARTCOM 7.2 Current Loop Power Supply 24 V, additional Function (only for model HARTCOM-1) After turning on, the modem starts working in basic mode (marked with an asterisk (*)). Then, in addition to the states described in 7.1, the following modes can be set by pressing the “Select”... -
Page 7: Maintenance And Repair
A statement must be provided in the declaration that the decontamination process was successfully completed and that the device is clean from any hazardous substances. 9. Storage Conditions Ambient temperature: –25…+55 °C (–13…+131 °F) Relative humidity: max. 98% HARTCOM K01/0624 page 7... -
Page 8: Technical Information
HARTCOM 10. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 11. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. -
Page 9: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment HARTCOM K01/0624 page 9... -
Page 10: Eu Declaration Of Conformance
HARTCOM 14. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: HART®-USB Modem model: HARTCOM to which this declaration relates is in conformity with the following EU directives...
