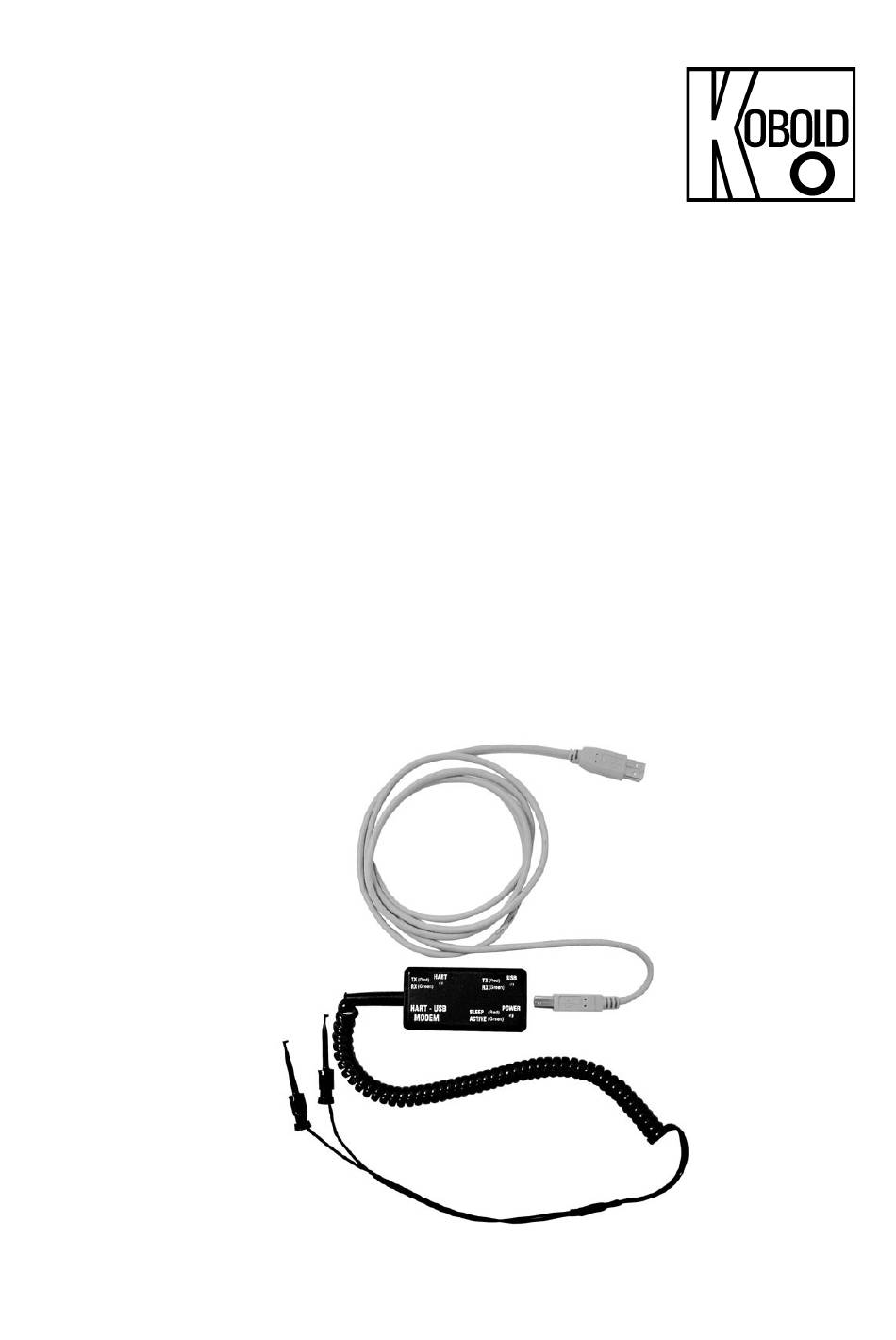

- Page 1 Operating Instructions ® Hart modem Model: HARTCOMM...
- Page 2 Dimensions ....................6 Disposal ......................7 EU Declaration of Conformance ..............8 Sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 HARTCOMM K03/0922...
- Page 3 Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.
- Page 4 HARTCOMM 5. Operating Principle HARTCOMM HART MODEM provides interface connection between field devices (slaves) with HART and IBM compatible PC. 6. Mechanical Connection Due to the test cable terminating in clips there is no need to disconnect the cable. 7. Electrical Connection 7.1 Blockscheme DRIVER MODEM...
- Page 5 The HARTCOMM is fully conform to the HART communication standards (up to HART FSK-5x revision). To enable communicating through the USB1.1. or USB2.0. port of the PC a driver program is needed. Drivers can either be downloaded from the Kobold homepage or from the following link: http://www.ftdichip.com/Drivers/VCP.htm HARTCOMM K03/0922...
- Page 6 HARTCOMM 9. Maintenance The unit does not require any maintenance. Repair under and beyond of the warranty period will be carried out at the manufacturer’s premises. 10. Technical Information - 25 C … + 55 C Operating temperature Enclosure Polystyrene Connection to PC USB 1.1 „B”...
- Page 7 HARTCOMM 12. Disposal Note! Avoid environmental damage caused by media-contaminated parts Dispose of the device and packaging in an environmentally friendly manner Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1.
- Page 8 HARTCOMM 13. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: ® HART -Modem model: HARTCOMM to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2010 + A1:2019 + A1:2019/AC:2019...
