Garmin GMR Fantom Open Array Series Field Service Manual

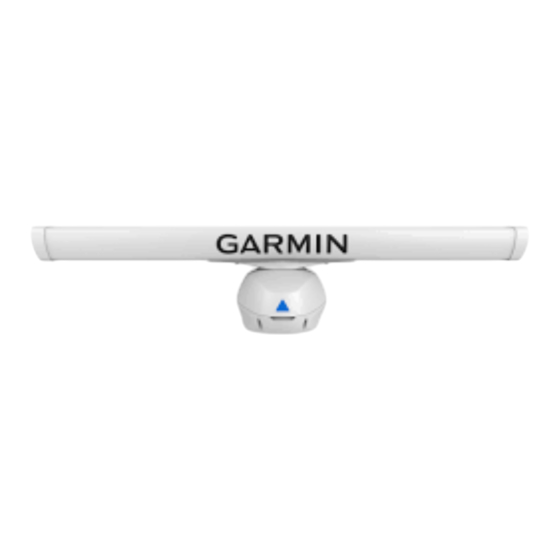

GMR Fantom™ Open Array Series
Field Service Manual
The GMR Fantom Open Array series radar generates and transmits
non-ionizing radiation. The radar must be turned off before approaching
the scanner for service. Avoid looking directly at the scanner while it
is transmitting, as the eyes are the most sensitive part of the body to
electromagnetic radiation. Before performing any bench test procedure,
remove the antenna and install the antenna terminator provided in the
Garmin Radar Service Kit (T10-00114-00). Failure to install the antenna
terminator will expose the service technician to harmful electromagnetic
radiation that can result in personal injury or death.
The GMR Fantom Open Array series radar contains high voltages. The
scanner must be turned off before the covers are removed. While servicing the
unit, be aware high voltages are present and take the necessary precautions.
The high voltages in the scanner can take some time to decay. Failure to
adhere to this warning can result in personal injury or death.
DO NOT place the GMR Fantom Open Array series radar into a test mode for
display purposes. When the antenna is attached, there is a danger of
non-ionizing radiation. The test modes should only be used for troubleshooting
purposes with the antenna removed and the antenna terminator in place.
Repairing and performing maintenance on Garmin electronics is complex
work that can result in serious personal injury or product damage if not done
correctly.
Garmin is not responsible for, and does not warrant, the work that you or a
non-authorized repair provider perform on your product.
Important Information Regarding Field Service of the
GMR Fantom Open Array Series Radar
• Before performing any service to the radar, ensure that the system
software is up to date. If it is not, go to
latest software version and update the radar
the service only if the software update does not resolve the issue.
• Record the serial number of your radar. You will need the serial number
when you order replacement parts.
Contacting Garmin Product Support
Replacement parts are available only through Garmin Product Support.
• For dealer specific support, call 1-866-418-9438
• Go to support.garmin.com.
• In the USA, call 913-397-8200 or 1-800-800-1020.
• In the UK, call 0808 2380000.
• In Europe, call +44 (0) 870.8501241.
WARNING
 
NOTICE
www.garmin.com to download the
(page 2). Proceed with

Table of Contents

Getting Started ....................................................................................
Radar Software Update .....................................................................................2
Radar Diagnostics Page ....................................................................................2
Tools Needed .....................................................................................................2
Troubleshooting .................................................................................
Universal Troubleshooting Steps
Radar Status LED ..............................................................................................3
Testing the Voltage Converter ...........................................................................3
Error Codes and Messages ...............................................................................3
1004 - Input Voltage Low
1005 - Input Voltage High ..................................................................................3
1013 - System Temperature High
1015 - Modulator Temperature High
1019 - Rotation Speed Failed During Spin Up
1025 - Rotation Speed Could Not be Maintained
Failure With No Error Code ...............................................................................4
Major Component Locations .............................................................
Radar Disassembly ............................................................................
Removing the Antenna ......................................................................................6
Opening the Pedestal Housing ..........................................................................6
Removing the Motor Assembly ..........................................................................6
Removing the Fan on the Electronics Box
Removing the Electronics Box ...........................................................................7
Removing the Motor Controller PCB
Removing the Rotary Joint ................................................................................7
Removing the Antenna Position Sensor PCB
Removing the Antenna Drive Gear
Removing the Antenna Rotator
Removing the Internal Power, Network, and Grounding Harnesses
Removing a Mounting Socket ............................................................................8
Service Parts .......................................................................................
.......................................................................3
..................................................................3
..............................................3
........................................................7
.................................................................7
....................................................7
....................................................................8
.........................................................................8
2
3
5
6
.................8
9
1
