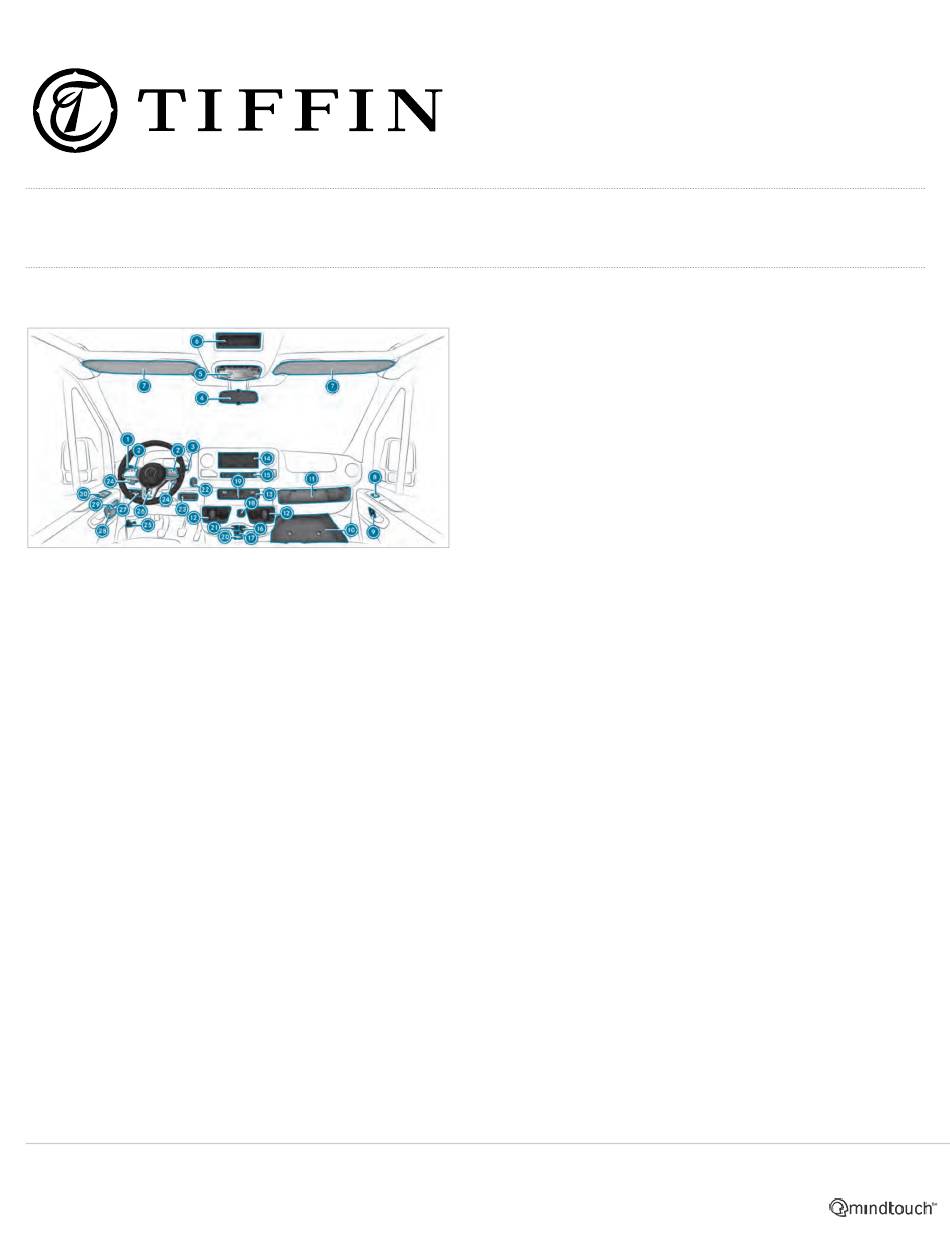

Mercedes Sprinter Van: Operator's Manual
Overview
1. Combination Switch
Turn Signals
High Beam
Windshield wiper
Rear passenger compartment window wiper
2. Steering-wheel buttons
3. DIRECT SELECT lever
4. Inside rearview mirror
Digital inside rearview mirror
5. Overhead control panel
6. Device installation frame, e.g. for mounting a
tachograph or the switch clock for the stationary heater
7. Sun visor
8. Front passenger window lifter
