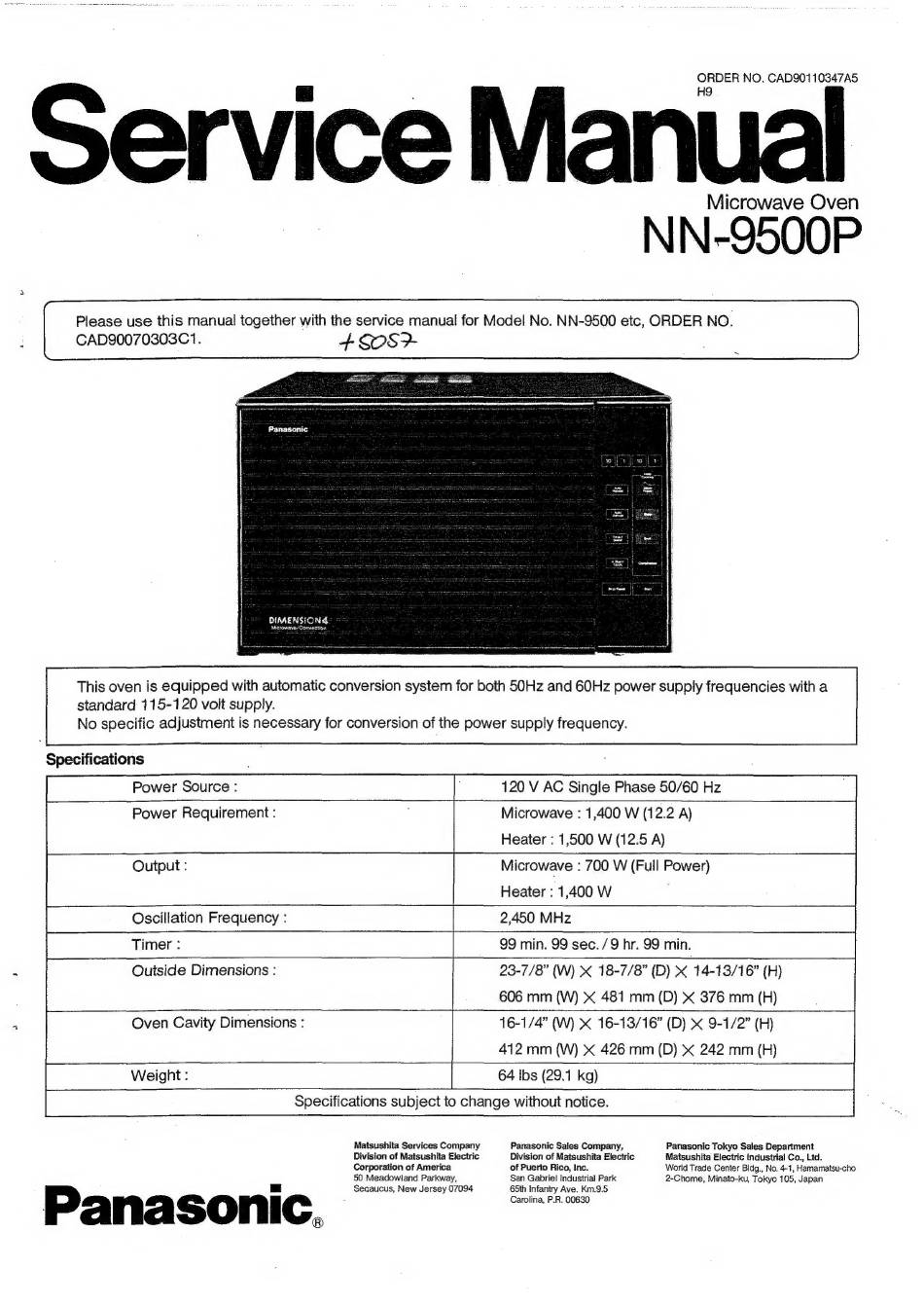

Panasonic NN-9500P Service Manual

ORDER NO. CAD90110347A5 Service Manual
Microwave Oven
NN-9500P
Please use this manual together with the service manual for Model No. NN-9500 etc, ORDER NO.
CAD90070303C1.
- GOS
This oven is equipped with automatic conversion system for both 50Hz and 60Hz power supply frequencies with a
standard 115-120 voit supply.
No specific adjustment is necessary for conversion of the power supply frequency.
Specifications
Power Source : 120 V AC Single Phase 50/60 Hz
Power Requirement: : Microwave : 1,400 W (12.2 A)
Heater : 1,500 W (12.5 A)
Output : Microwave : 700 W (Full Power)
Heater : 1,400 W
Oscillation Frequency : 2,450 MHz
Timer : 99 min. 99 sec. /9 hr. 99 min.
. Outside Dimensions : 23-7/8" (W) X 18-7/8" (D) X 14-13/16" (H)
606 mm (W) X 481 mm (D) X 376 mm (H)
3 Oven Cavity Dimensions : 16-1/4" (W) X 16-13/16" (D) & 9-1/2" (H)
412 mm (W) X 426 mm (D) & 242 mm (H)
Weight: 64 Ibs (29.1 kg)
Specifications subject to change without notice.
