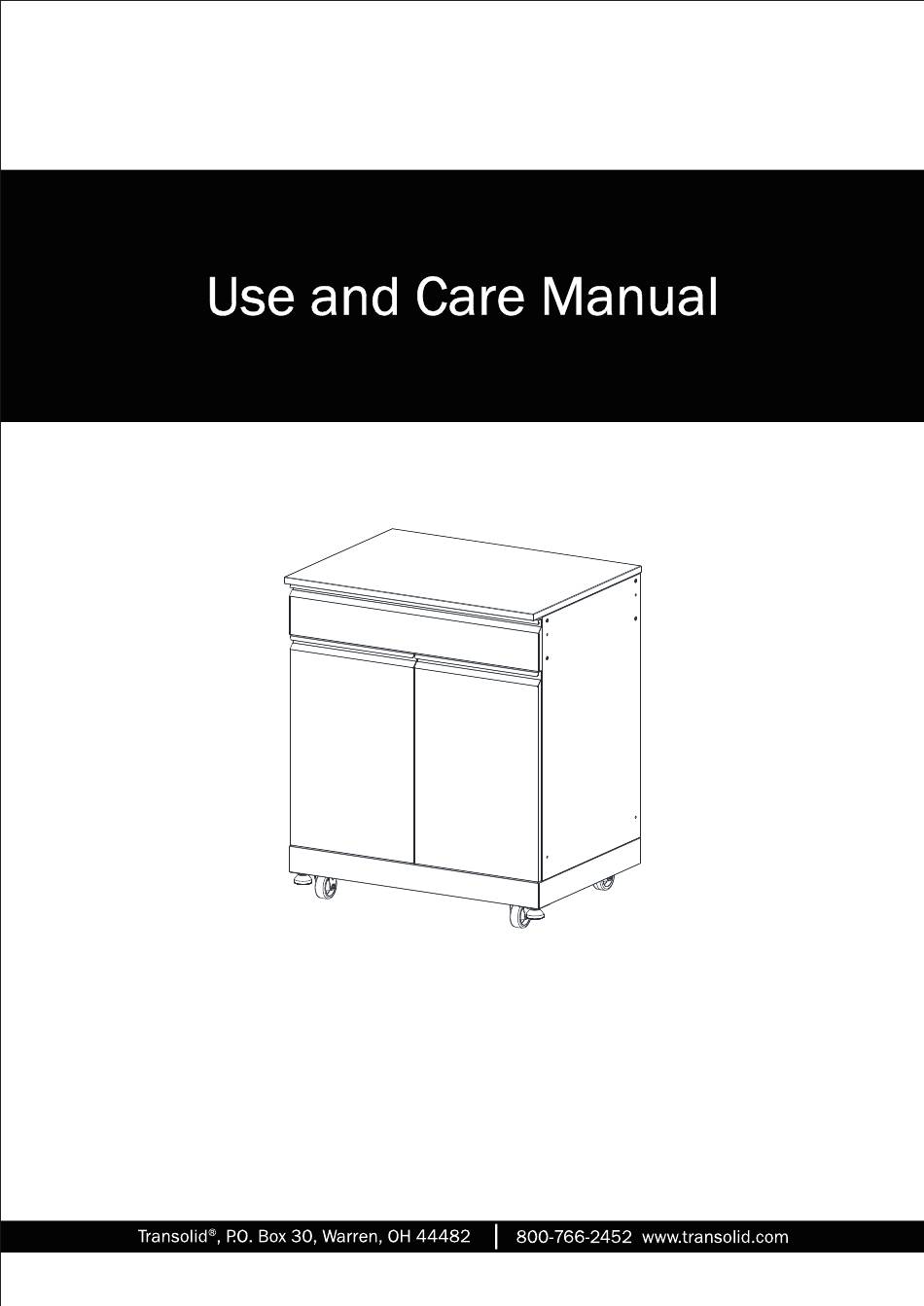

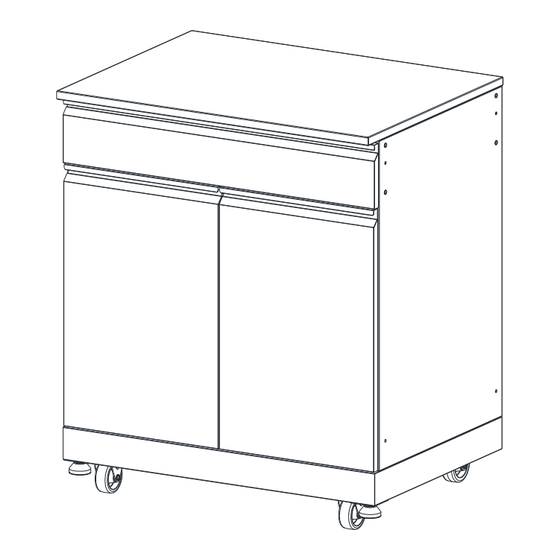

- Page 1 Stainless steel outdoor cabinet with drawer MODEL #OBC 3224 IMPORTANT: 1.One carton containing cabinet board and hardware. 2.One carton containing 32in worktop.
- Page 2 Assembly Weight capacity NEVER allow children to stand, climb or hang on drawers, doors, or shelves. NEVER open more than one drawer at a time. Place heaviest items in the lowest drawers.
- Page 3 Tin snip cut Open end wrench...
- Page 4 I x 2 J x 2 K x 2 L x 4 O x 2 P x 37 U x 16 Q x 4 R x 4 S x 10 T x 26...
- Page 5 Part Description Size Quantity Remark Bottom Panel 813x577x76mm Left side panel 556x773x21.5mm Right side panel 556x773x21.5mm Back panel lower part 770x430x20mm Back panel upper part 770x341.5x20mm Left door 403x613x19mm Right door 403x613x19mm Decoration panel 813x169x36mm Universal caster with brake Fixed caster Supporting leg Door hinge Door barrier strip...
- Page 6 1.Remove the protect film before installation. Turn the bottom panel (A) over and place it onto a protective surface. Connect fixed caster(J) and universal caster with brake (I) on bottom panel(A) with screw (P). Attached supporting leg (K) on bottom panel (A) and tighten the screw. Gently put the bottom panel (A) upright.
- Page 7 3.Install the cabinet drawer support (W) on the side panel (B) and (C) with screw (S). Back Front 4.Install the door hinge arm on the left door (F) and right door (G). Door Hinge Arm Installed...
- Page 8 5.Connect the left panel (B) , right panel (C) and lower back panel (D) on the bottom panel (A) with screw (P). WARNING! A second person is need to hold the panel to avoid any demage when installation. 6.Connect the upper back panel (E) on the lower back panel (D). Install the door barner strip (M) on the bottom panel (A).
- Page 9 8 .Gently push the drawer(AA) into the cabinet. If you want to remove the drawer, please gently pull the bar up on the left and press the bar down on the right at the same time. Then pull the drawer out of the runner. Push...
- Page 10 Click!
- Page 11 support 12.Using tin snips cut small webs to release the knockouts if needed. Cover the screw connection holes on side panel with supplied self-adhesive screw cover sticker (U). Remove the protect film before using. 13. Gently put the 32in countertop (X) on the cabinet and lock the screws(T). Adjust the supporting leg level if nessecery.
-
Page 12: Load Capacity
Load capacity 200 lbs 50 lbs 125 lbs 140 lbs WARNING! Do not over loaded when using. Place heaviest items in the lowest board. Wash regularly with clean fresh water, mild detergent and a micro fiber cloth. Allow cabinets to completely dry before Do not use abrasive cleaners or a scouring covering with supplied rain cover.
