SEON MVC-9710 Installation Manual

TIP: Fisheye Image Configuration
When the MVC-9710 camera is installed and set up as described in this Guide, it outputs a
360-degree fisheye image.
Image "de-warping" and configuration are performed in the Evidence Manager video man-
agement/player software. For more information, please see the Evidence Manager User
Guide (part #700-1157).
Service
If your MVC-9710 camera is to be returned for service, please call (toll free) 1.877.630.7366 or 1.844.899.7366, and
provide the model and/or serial number of your unit. Ask for a Return Merchandise Authorization (RMA) number. An RMA
number allows the Service Technicians to better track your product when it comes in for service. Please show the RMA
number on the outside of the package. ANY PRODUCT SENT WITHOUT AN RMA# MAY BE REFUSED.
Technical Support Documentation
• Email: service@seon.com
For more information on configuring the fisheye camera image, see the Evidence
Manager User Guide (part #700-1157). For details on the recorder, see the MobileView
• Phone: 1.877.630.7366
7000 Series documentation.
Additional copies of this guide, along with supporting documentation, are available on
the SafeFleet Community:
• https://community.seon.com/documents/
MVC-9710 Installation Guide

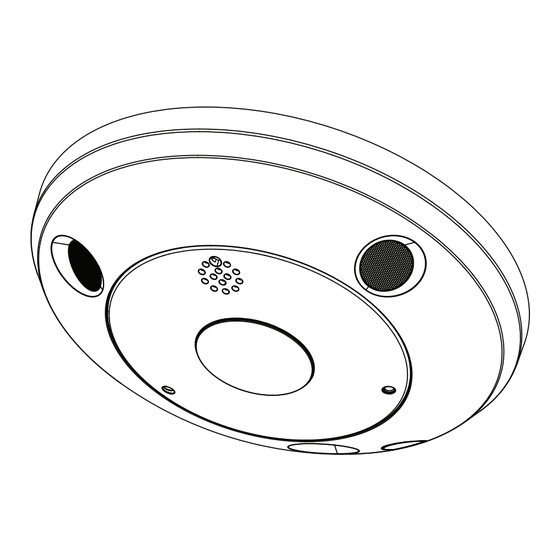

Product Overview
This install guide applies to the following camera model:
• MVC-9710-13-WI
The MVC-9710 camera is compatible with MobileView 7000 series recorders
running Service Pack 3 or newer firmware.
Package Contents Installation Requirements
•
Inspect the package contents for visibly
damaged or missing parts. If found, retain
original packaging, contact your supplier,
•
and do not use the camera.
Your package includes:
•
• Camera, drill template
• Installation Guide (this document)
•
• Torx wrench
•
• Rubber grommet
•
•

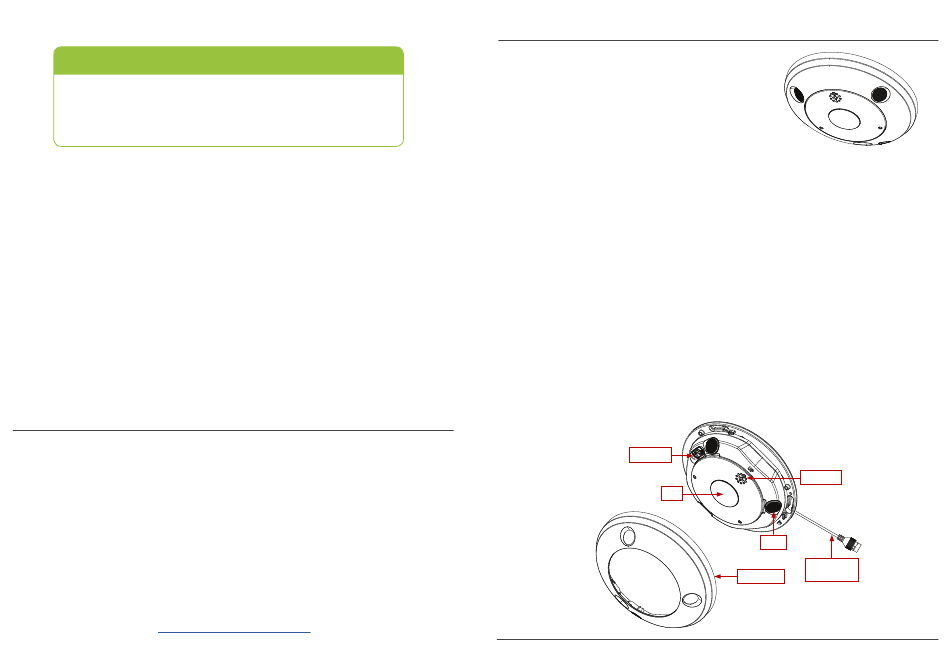

Camera Description
SD Card Slot
Lens
Ceiling Mount: this camera kit is designed for ceiling mount
applications.
Electrical: Only qualified service members should install wiring to
prevent overload of the power cord. Always use a genuine MobileView
PoE product, such as MVNS-3200 PoE Switch to power the camera.
Cables: PoE (802.3af) Cat5, 24AWG stranded or better. Standard RJ45
jack.
Ventilation: Install the camera in a well-ventilated location.
Temperature: Do not operate the camera beyond the specified
temperature and humidity ratings.
Service: Only qualified service personnel should repair and service the
camera, or the product warranty may be invalidated. To avoid personal
injury, do not dismantle the camera, except as required for normal
installation.
Cleaning: Dust or grease on the dome bubble will cause IR reflection.
If required, wipe the dome bubble with a clean, soft cloth and isopropyl
alcohol.
Microphone
IR LED
Network Cable/
RJ45 Connector
Camera Cover
© Safe Fleet | Feb. 2019 | All rights reserved | Part #: 700-1136 R3
