Scolmore ESP MAGPRO96GBB Manual

MAGPRO96GBB
Back-up power supply unit for
MAGPRO96G addressable fire alarm panel
18
1293
DoP No: 136
Tested by EVPU
Distributor: Elite Security Products Ltd,
Unit 7 Target Park, Shawbank Road
Lakeside, Redditch B98 8YN, UK
http://www.espuk.com
Manufacturer: Teletek Electronics JSC
14A Srebarna Str, 1407 Sofia, Bulgaria
EN 54-4:1997
EN 54-4:1997/AC:1999
EN 54-4:1997/A1:2001
EN 54-4:1997/A2:2006
! Installation
IP30 ~6kg
-5°C ÷ +40°C (working)
-10°C ÷ +60°C (storage)
(93 ± 3)% @ +40°C
2 2
0.5mm -2.5mm
ю
Indoor use Outdoor use
18021042; RevB; 01/2022
IMPORTANT NOTES
ATTENTION: Read carefully this installation Instructions before
installing the device! This manual is subject to change without
notice!
• Warning! An appropriate disconnect device shall be provided as
part of the building.
• Switch OFF the main power supply and the battery of the
MAGPRO96G panel before installing the MAGPRO96GBB power
supply unit!
• Use only the connection cables supplied with the equipment: red
and black wires for connection to JP4 terminals; white and grey
wires for connection to FLT terminals! Do not shorten or extending
these cables!
• Make all the wirings observing the polarity of the connections
following the presented connection diagrams. If after powering on
the MAGPRO96GBB, the LED "WRONG CONNECTION" is lighting
on, switch off the power supply immediately and check the
connection between the power supply unit of MAGPRO96G panel
and terminals JP4 of MAGPRO96GBB!
• If the LED "Hi Resist" for Battery 1 or 2 is blinking it is strongly
recommended to change the batteries immediately!
• The cover is mounted to the box bottom with hinges fixed with
dismountable rivets. The angle of opening of the front cover must
not be greater than 110°!
TECHNICAL SPECIFICATIONS
Main power supply . . . . . . . . . . . 230V~ +10%/ -15%, 0.6A, 4A fuse
Frequency . . . . . . . . . . . . . . . . . 50-60Hz
DC Output:
- Voltage . . . . . . . . . . . . . . . . . 9.9-14.2V
- Max. Current . . . . . . . . . . . . . 7A@1 battery, 14A@2 batteries
Int. resistance of the battery Ri . < 0.3Ohm
Max. battery capacity . . . . . . . . . 2x12V/18Ah
Charger outputs . . . . . . . . . . . . . 13.65V
Color of the box . . . . . . . . . . . . . grey
Dimensions . . . . . . . . . . . . . . . . 430x330x117mm
Max. dimensions of 1 battery . . . 167x181x76mm
!
Installation
Max. 110°!
INSTALLATION INSTRUCTIONS
General Description
MAGPRO96GBB is a power supply unit designed for back-up power
supply of MAGPRO96G addressable fire alarm panel. The power supply
is placed into a metal box suitable for building of a modular structure
with the addressable panel and a second power supply unit. The access
to the main board and the cable connections is secured with a key.
The status of MAGPRO96GBB is displayed via a LED indication on the
main PCB. The status of the power supply unit can be continuously
monitored with enabling the option "External PSU Check" from the
MAGPRO96G panel menus. When the option is enabled the panel will
display a fault message "External Power Supply Fault, Periphery Device
1-PSU" in case of any trouble with the power supply. The respective
trouble of the power supply is visualized with a blinking LED on the PCB.
At normal operation mode only "OK" green LED is blinking and all other
LEDs are off. In case of main power supply (230V~) loss the "FLT"
yellow LED starts blinking and "OK" green LED is off. In case of trouble
with a Battery 1 and/or 2, the yellow LEDs at sections Batt1 and/or Batt2
are blinking. A detail description of all LED indicators is performed at
Item 2: MAGPRO96GBB Main Board - see on page 2.
!

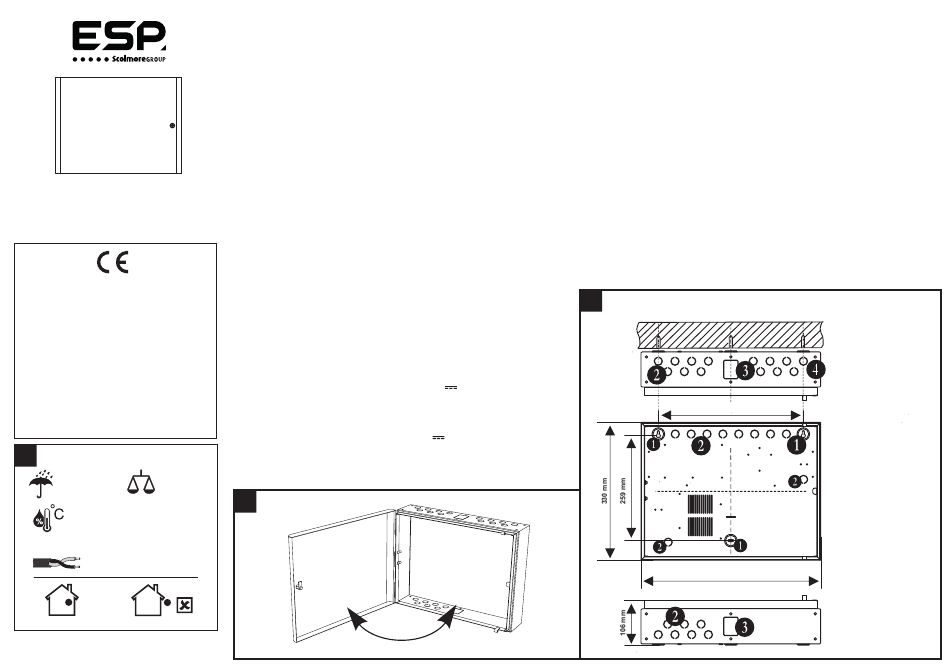

Mounting
±1%@20°C, max. 2A
1 - Mounting holes
2 - Openings for
running cables -
on the box bottom,
on the up and
down side*
347 mm
3 - Opening for
running cables
when a few
panels are fixed
in a modular
structure*
4 - Ø 5mm openings
(4 on upside and
4 on downside on
the box bottom) for
fixing the panel to
other boxes from
the same type
* Protected with a
430 mm
metal cap element
