Summary of Contents for BRASS MONKEY GH2028

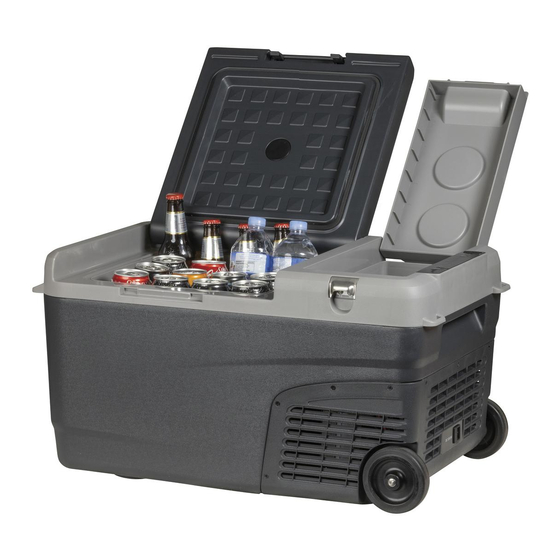

- Page 1 GH2028 25L PORTABLE FRIDGE/FREEZER WITH DUAL BATTERY COMPARTMENT INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ................ 3 Before First Use ....................4 Features ........................ 5 Box Contents ......................5 Product Diagram ....................5 Product Dimensions ................... 6 Operation ......................6 Optional Removable Battery ................7 Battery Usage ...................... 8 Food Storage ......................8 Troubleshooting .................... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse Warnings • Do not operate the appliance if it is visibly damaged. • Do not block the gaps of the fridge with things like pins or wires, etc. •... -
Page 4: Before First Use
Notice • Disconnect the power supply before each cleaning and maintenance and after every use. • Do not use sharp tools to defrost; Do not damage the refrigerant circuit. • Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the doors: leave the shelves in place so that children may not easily climb inside. -
Page 5: Features
FEATURES • Dual battery compartment • 3-stage low voltage battery protection • Internal LED light • Folding handle and wheels for portability • DC power connection • Bottle openner • AC adapter included • App control via Bluetooth • Digital temperature display with adjustable control •... -
Page 6: Product Dimensions
PRODUCT DIMENSIONS OPERATION Power Supply: connect to DC 12V/24V or AC 100-240V power (using dedicated adapter) Display Screen Initialization: connect to the power supply, the buzzer will make a long beep, and the display will be on for 2 seconds then enter the standby mode. Power ON/OFF: press to switch ON/OFF. -
Page 7: Optional Removable Battery
Voltage Reference *the voltage is theoretical value, there may be a deviation in different sceneries. *H should be set when the product is connected to car power, and M or L should be set when it is connected to a portable battery or other back-up battery. Temperature Unit Setting: switch off the fridge, long press for three seconds until E1 displays, then switch to E5 by pressing... -
Page 8: Battery Usage
BATTERY USAGE Optional Removable Battery: The lithium battery is back up power to keep the refrigerator working for short periods while off grid. Notice: When not using the battery power or fridge for a long time, please turn off the battery output. -
Page 9: Troubleshooting
TROUBLESHOOTING ISSUE SUGGESTED REMEDY Refrigerator does not work • Check if the switch is on. • Check if the plug and socket are connected well. • Check if the fuse has been burnt. • Check if the power supply is malfunctioned. •... -
Page 10: Cleaning, Care, Storage & Maintenance
CLEANING, CARE, STORAGE & MAINTENANCE WARNING: Never use hard or sharp tools to remove ice or to loosen objects frozen in place. Cleaning • Unplug the device first to avoid electric shock. • Use wet cloth to clean the device and dry it. •... -
Page 11: Smart Control - Fridge App Instructions
SMART CONTROL - FRIDGE APP INSTRUCTIONS (Battery is not supported on this model) -
Page 12: Specifications
SPECIFICATIONS Input Voltage 12/24V DC, (To power from mains use the included 240V AC to 12V DC power adapter) Average Power Consumption Power Consumption 0.23kw.h / 24hr Rated Current for DC 5.0A (12V) / 2.5A (24V) Temperature Range -20 to +20ºC (ambient temp. 25ºC) Refrigerant R134A Insulation...
