Table of Contents

5216 Portside Dr., Medina, OH 44256 USA • PH: 1 330.723.0599 • FAX: 1 330.722.5037
FOR CUSTOMER SERVICE CALL
330-723-0599. DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR WARRANTY AND FEDERAL SAFETY
STANDARD COMPLIANCE CERTIFICATES,
PLEASE VISIT OUR WEBSITE AT
www.childcraftbaby.com
ASSEMBLY ASSISTANCE
IMPORTANT: Retain for future reference and
read carefully.
Child Craft strives for the highest quality in our
products but occasionally a missing part or
problem can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.childcraftbaby.com or call Child Craft for
assistance at 1-330-723-0599 (Monday through
Friday, 9:00 a.m.– 4:00 p.m. Eastern Time). Please
have the model number and manufacture date
available when you call or write us at:
Child Craft, 5216 Portside Dr., Medina, OH 44256
ASSEMBLY INSTRUCTIONS
• Adult assembly required.
• Read all instructions BEFORE assembly and USE
of product.
• Unpack carton, remove packing materials,
including polybag. Identify and check all parts.
www.childcraftbaby.com
Cranbrook Chest
Model Covered: F03302
KEEP INSTRUCTIONS FOR FUTURE USE

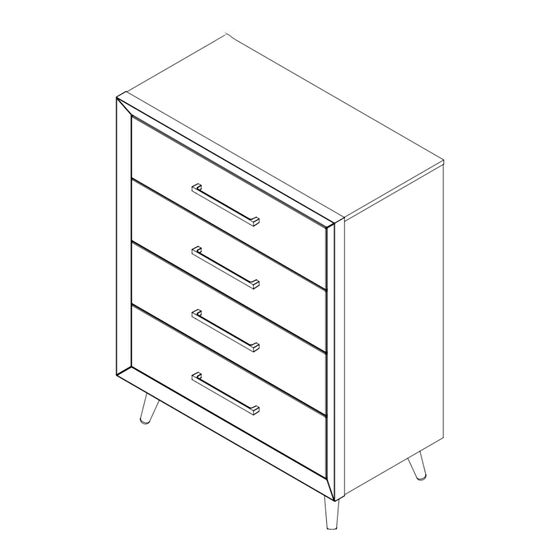

Assembled Chest
Record the information for your product here:
Model number:
Manufacture date: ___________________
PO number:
1
.
AB20469_G19
___________________
___________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cranbrook F03302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Child Craft Cranbrook F03302

Summary of Contents for Child Craft Cranbrook F03302

  • Page 1 ASSEMBLY ASSISTANCE IMPORTANT: Retain for future reference and read carefully. Child Craft strives for the highest quality in our products but occasionally a missing part or problem can occur during assembly. If any parts are missing or broken or you need assistance with assembly, DO NOT return the product to your dealer.

  • Page 2: Parts List

    Please identify the furniture F. Top 23102606 by the model number identification stamped on the assembly when you call or write to Child Craft. Make G. Drawer Front 23102618 note of all identification numbers and include this information with your request.
  • Page 3 Furniture Parts AB20469_G17 Hardware Package AB20469_G18...
  • Page 4 STEP 1 A x 1 Q x 4 Q x 2 Q x 2 AB20469_G1 STEP 2 B x 1 AA x 2 BB x 2 AA x 2 BB x 2 AB20469_G2...
  • Page 5 STEP 3 O x 1 P x 1 AA x 4 AA x 4 FF x 6 GG x 6 FF x 6 GG x 6 AB20469_G3 STEP 4 C x 1 AA x 6 AA x 6 FF x 4 GG x 4 BB x 2 FF x 4...
  • Page 6 STEP 5 F x 1 I x 2 AA x 4 AA x 4 BB x 8 FF x 2 FF x 2 GG x 2 GG x 2 BB x 8 I x 2 AB20469_G5 STEP 6 E x 1 AA x 10 AA x 10 BB x14...
  • Page 7 STEP 7 G x 1 J x 1 K x 1 CC x 4 CC x 2 CC x 2 AB20469_G7 STEP 8 X 3 G x 1 L x 1 N x 1 CC x 4 CC x 2 CC x 2 AB20469_G11...
  • Page 8 STEP 9 X 4 H x 1 CC x 2 D x 1 M x 2 CC x 6 CC x 2 CC x 2 M x 2 AB20469_G8 STEP 10 X 4 CC x 2 CC x 2 AB20469_G9...

  • Page 9: Drawer Installation

    STEP 11 X 4 DD x 1 EE x 2 EE x 2 AB20469_G10 DRAWER INSTALLATION These slide sections mounted on inside of dresser must be fully extended for install. This side section mounted to drawer. AB20469_G16...
  • Page 10 SAFETY BRACKET KIT Please refer to Safety Bracket Kit instructions for install. AB20469_G15...
  • Page 11 HOW TO REMOVE MULTIPLE DRAWERS ATTENTION: This product includes drawer interlocks to help prevent tipover hazards. Remove top drawer. Push toggle up and back to unlock. Repeat for other side of drawer opening. Remove next drawer. Repeat steps 2-3 until all drawers have been removed.

  • Page 12: Maintenance, Cleaning, And Storage

    DO NOT use furniture if any parts are missing or broken. If any parts are missing, broken or you need assistance DO NOT return furniture to your dealer. Call Child Craft at 330-723-0599 and include model identification numbers recorded on page 1. DO NOT substitute parts.
  • Page 13 1-330-723-0599 (du lundi au vendredi, de 9h00 à 16h00, heure de l’Est). Veuillez avoir le numéro de modèle et Child Craft, 5216 Portside Dr., Medina, OH 44256 Enregistrez les informations de votre produit ici: INSTRUCTIONS DE MONTAGE Numéro de modèle:...

  • Page 14: Liste Des Pièces

    G. Façade du tiroir 23102618 numéro de modèle estampillé sur l’assemblage lorsque H. Arrière du tiroir 23102613 vous appelez ou écrivez à Child Craft. Notez tous les numéros d’identification et joignez ces renseignements à I. Rail avant 23102626 votre demande.
  • Page 15 Pièces de meubles AB20469_G17 Ensemble matériel AB20469_G18...
  • Page 16 ÉTAPE 1 A x 1 Q x 4 Q x 2 Q x 2 AB20469_G1 ÉTAPE 2 B x 1 AA x 2 BB x 2 AA x 2 BB x 2 AB20469_G2...
  • Page 17 ÉTAPE 3 O x 1 P x 1 AA x 4 AA x 4 FF x 6 GG x 6 FF x 6 GG x 6 AB20469_G3 ÉTAPE 4 C x 1 AA x 6 AA x 6 FF x 4 GG x 4 BB x 2 FF x 4...
  • Page 18 ÉTAPE 5 F x 1 I x 2 AA x 4 AA x 4 BB x 8 FF x 2 FF x 2 GG x 2 GG x 2 BB x 8 I x 2 AB20469_G5 ÉTAPE 6 E x 1 AA x 10 AA x 10 BB x14...
  • Page 19 ÉTAPE 7 G x 1 J x 1 K x 1 CC x 4 CC x 2 CC x 2 AB20469_G7 ÉTAPE 8 X 3 G x 1 L x 1 N x 1 CC x 4 CC x 2 CC x 2 AB20469_G11...
  • Page 20 ÉTAPE 9 X 4 H x 1 CC x 2 D x 1 M x 2 CC x 6 CC x 2 CC x 2 M x 2 AB20469_G8 ÉTAPE 10 X 4 CC x 2 CC x 2 AB20469_G9...
  • Page 21 ÉTAPE 11 X 4 DD x 1 EE x 2 EE x 2 AB20469_G10 INSTALLATION DE TIROIRS Ces sections de diapositives monté à l’intérieur de la com- mode doit être complètement déployé pour l’installation. Cette section latérale montée sur le tiroir. AB20469_G16...
  • Page 22 KIT DE SUPPORT DE SÉCURITÉ Veuillez vous référer aux instructions du kit de support de sécurité pour l’installation. AB20469_G15...
  • Page 23 COMMENT RETIRER PLUSIEURS TIROIRS: ATTENTION : Ce produit comprend des verrouillages de tiroirs pour éviter les risques de renversement. Poussez la bascule vers le haut et vers l'arrière pour déverrouiller. Retirez le tiroir supérieur. Répétez l’opération pour l’autre côté de l’ouverture du tiroir. Retirez le tiroir suivant.
  • Page 24 Si des pièces sont manquantes, cassées ou si vous avez besoin d’aide, NE PAS retourner les meubles à votre revendeur. Appelez Child Craft au 330-723-0599 et incluez les numéros d’identification du modèle enregistrés à la page 13. NE PAS remplacer les pièces.
