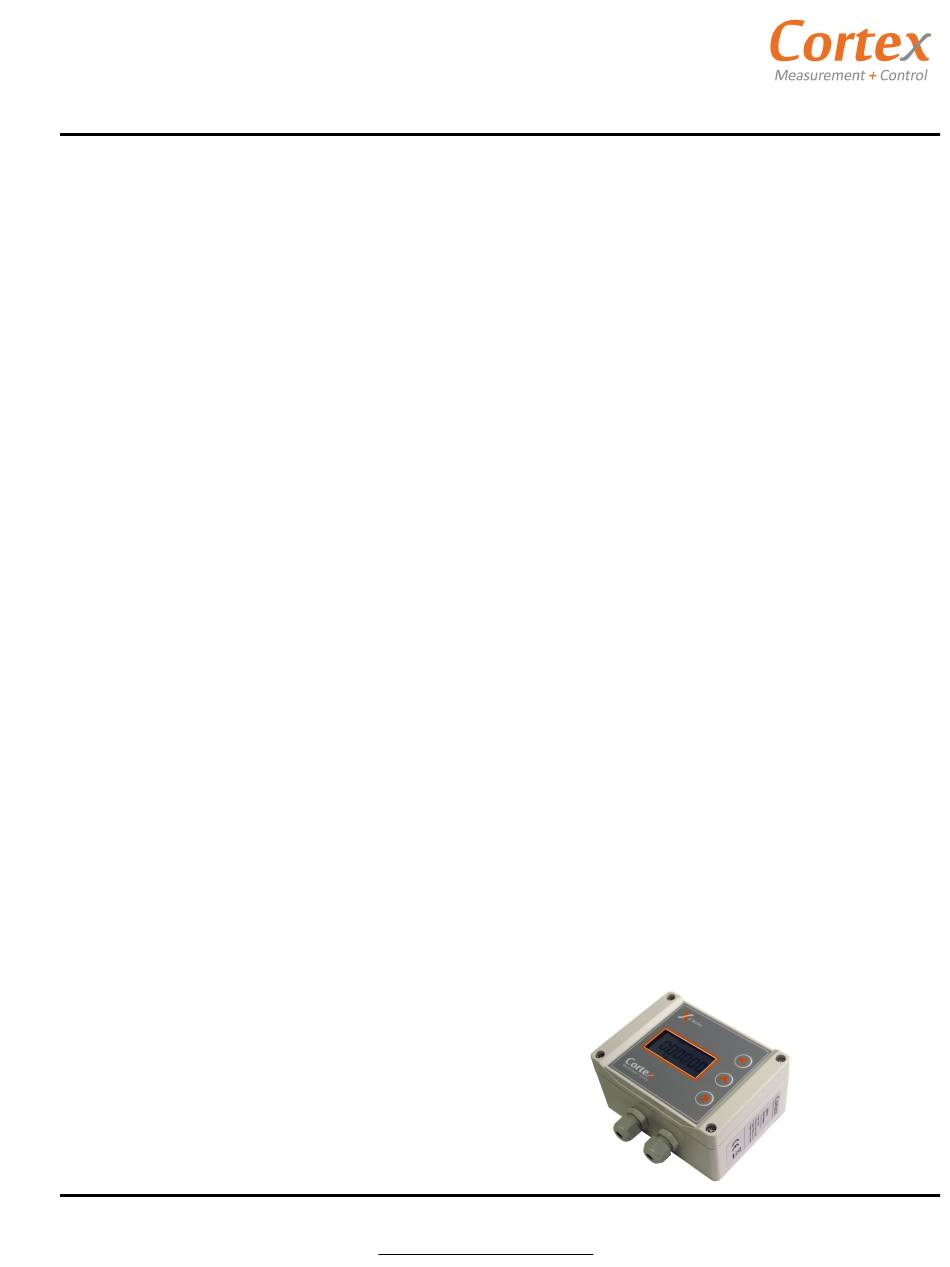

Cortex XEF Series Manual

GFC-111EA-B
XEF Series
4-20mA output and programmable digital output
FEATURES
l FLOW A: UNIVERSAL INPUT, 5 kHz, CAN
POWER THE SENSOR. NO NEED OF
AMPLIFIER FOR THE COIL
l FLOW B: NPN OPEN DRAIN/COLLECTOR,
WAVES, LOGICAL SIGNALS, REED SWITCHES,
DRY CONTACTS
l THREE 7 DIGIT FLOW RATES WITH
PROGRAMMABLE DECIMAL PLACES
l THREE, UP TO 9 DIGITS TOTALS, WITH
PROGRAMMABLE DECIMAL PLACES. BOTH
TOTAL A AND B RESETTABLE
l TWO KFACTORS FROM 0.00001 TO 9,999,999
l SEPARATE RATE AND TOTAL VOLUME UNITS
l MILLILITERS, LITERS, GALLONS, CUBIC FEET,
CUBIC METERS, ACRE FEET
l PER SECOND, PER MINUTE, PER HOUR, PER
DAY
l ISOLATED 12 BIT ANALOG 4-20 mA PASSIVE
OUTPUT. PROGRAMMABLE FOR RATE A, B,
A+B, OR A-B
l ISOLATED NO POLARITY 100V/100mA DC/AC
OUTPUT THAT CAN BE PROGRAMMED TO BE:
l RATE ALARM, HIGH OR LOW, FOR
RATE A, B, A+B OR A-B
l PULSE OUTPUT, HIGH OR LOW
FREQUENCY, FOR TOTAL A, B, A+B
OR A-B
l PROGRAMMABLE FILTER (DAMPING) FOR
EACH INPUT
l PROGRAMMABLE FLOW RATE CUT-OFF FOR
EACH INPUT
l ALL SETTINGS STORED IN A NON-VOLATILE
MEMORY
l SETTINGS LOCK/UNLOCK FOR SECURITY
l HIGH CONTRAST IN THE ENTIRE
TEMPERATURE RANGE
l SIMPLE PROGRAMMING, SMALL SIZE
APPLICATIONS
l DIESEL ENGINE FUEL CONSUMPTION
l FLOW RATE AND TOTAL MEASUREMENT AND
CONTROL
l COMPOUND METER SUMMATION
l METERING PUMPS PRECISE CONTROL FOR
DOSING & RATIO APPLICATIONS
l SCADA
© 2014 Cortex Displays – All rights reserved
Two Pulse Inputs - Flow Computer
(Sum or Difference)
www.cortexdisplays.com
DESCRIPTION
The GFC-111EA-B is a two input flow computer /
totalizer that can be used to measure diesel engines
fuel consumption and many other applications that
require measuring the sum or the difference of two
flow rates and totals. Input A is universal, input B
accepts a variety of flow sensors. Input A provides
regulated and filtered 10 VDC power for the sensor.
Input B does not.
- The GFC-111EA-B has an isolated no-polarity
100V/100mA DC/AC output that can be programmed
to work as a rate alarm or pulse output.
- The alarm can be programmed to be high or low
and to compare against rate A, rate B, A+B or A-B.
- The pulse output can be programmed for low or
high frequency and to represent total A, total B, A+B
or A-B.
- The GFC-111EA-B also has one isolated analog 4-
20 mA output that can be programmed to represent
rate A, rate B, A+B or A-B.
- A programmable filter (damping) for each input
helps to generate a stable flow rate reading.
- A programmable flow rate cut-off for each input can
halt the reading when the flow becomes unstable.
- The GFC-111EA-B has a version in one inch wider
enclosure – GFC111E-A-B.
The GFC-111EA-B is the perfect solution for flow
measurement and control applications that require
high accuracy and reliability, electrical isolation,
output signals, small
performance and low maintenance.
size, industrial grade
