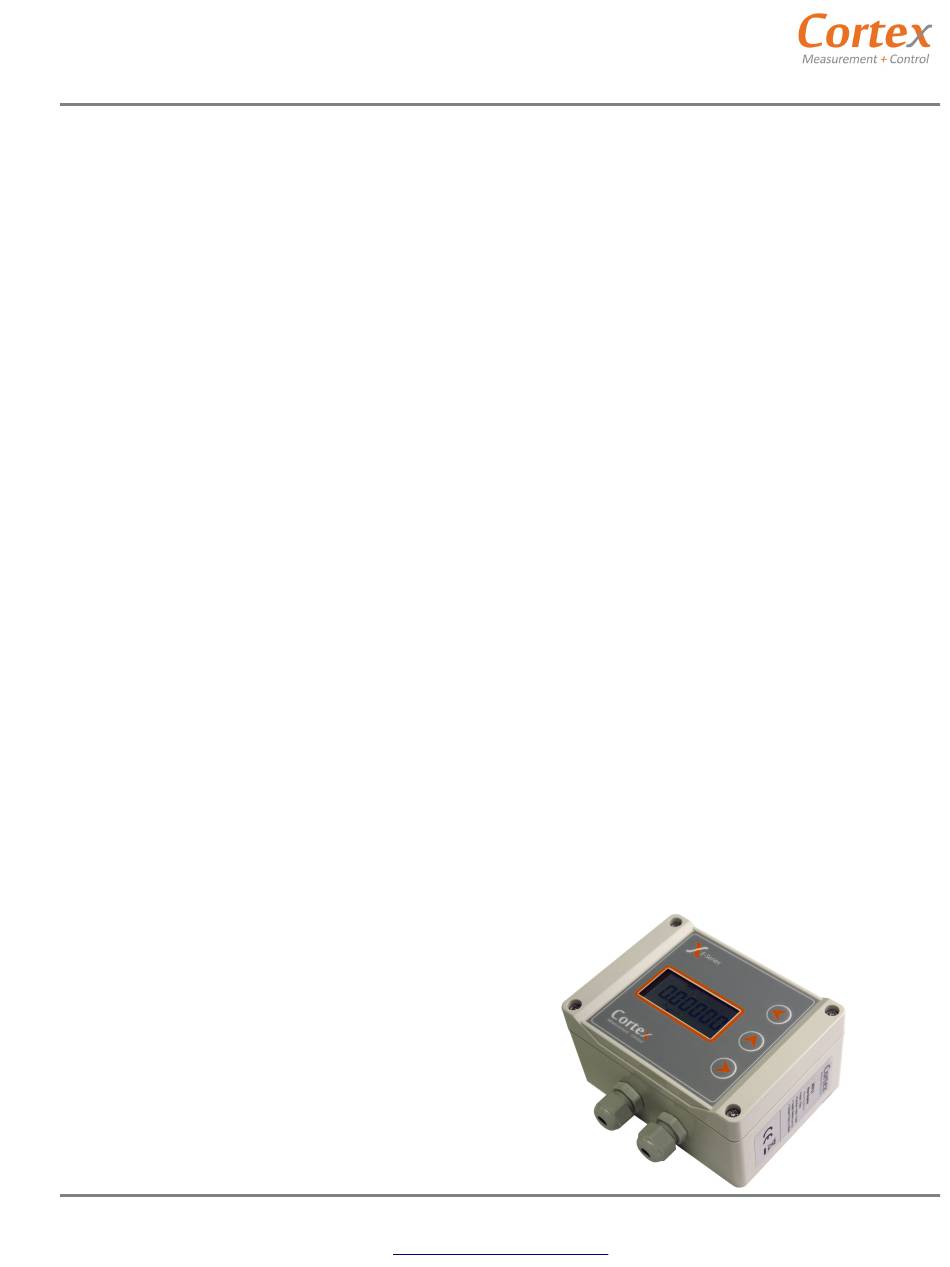

Cortex XEF Series Manual

GFC-101E
Battery Powered Flow Computer – Pulse Input
XEF Series
FEATURES
l 4 YEARS, UP TO 8 YEARS ON A SINGLE AA
SIZE BATTERY (BASED ON COIL INPUT)
l "C" SIZE BATTERY OPTION
l UNIVERSAL INPUT, 5 kHz
l NO NEED OF AMPLIFIERS OR LINEARIZERS
l ISOLATED 4-20mA, 12 BIT ANALOG OUTPUT
l DISPLAY: 7 DIGIT RATE AND THREE UP TO 9
DIGIT TOTALS WITH PROGRAMMABLE
DECIMAL PLACES
l SINGLE K-FACTOR OR 10 POINT
CALIBRATION CURVE
l K-FACTORS FROM 0.00001 TO 9,999,999
l MILLILITERS, LITERS, GALLONS, CUBIC FEET,
CUBIC METERS, ACRE FEET
l PER SECOND, PER MINUTE, PER HOUR, PER
DAY
l 100V/100mA OPEN DRAIN OUTPUT THAT CAN
BE PROGRAMMED TO BE:
l RATE ALARM: HIGH OR LOW
l BATCH OUTPUT WITH A START INPUT
l TOTAL LIMIT FOR 1 TO 64 DAYS WITH
A RESUME INPUT
l PULSE OUTPUT, UP TO 480 PULSES
PER MINUTE (METERING PUMPS etc)
l 64 DAY DATA LOGGER (TOTAL FOR EACH 24
HOURS)
l PROGRAMMABLE SLEEP MODE FOR THE
DISPLAY TO SAVE POWER
l SETTINGS LOCK/UNLOCK FOR SECURITY
l HIGH CONTRAST IN THE ENTIRE
TEMPERATURE RANGE
l BATTERY LOW INDICATOR
l SIMPLE PROGRAMMING, SMALL SIZE
l WALL MOUNT, DIN 72x72 PANEL MOUNT
OPTION
APPLICATIONS
l FLOW RATE AND TOTAL MEASUREMENT
AND CONTROL
l BATCHING APPLICATIONS
l LIMITING THE TOTAL IN ANY ROLLING
PERIOD OF 1 TO 64 DAYS
l PROGRAMMABLE METERING PUMPS
PRECISE CONTROL FOR DOSING
APPLICATIONS
© 2018 Cortex Displays – All rights reserved
rev. H
4-20mA & programmable digital output
www.cortexdisplays.com
1. DESCRIPTION

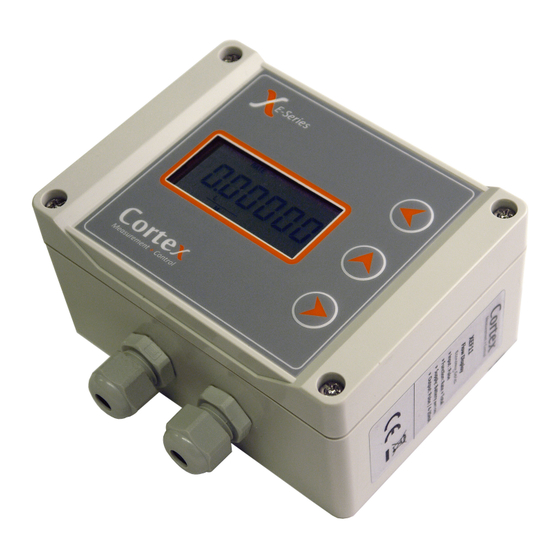

The GFC-101E is a micro power battery powered
flow computer totalizer
combination of excellent features, extremely long
battery life, universal input, high input frequency and
a variety of outputs. It accepts open drain/collector
npn/pnp, reed switch, dry contact, coils, almost any
wave and logical signals. GFC-101E has an open
drain 100V/100mA output that can be programmed
to work as a rate alarm:- high or low, with +/- 1 %
hysteresis, batch, limit or pulse output.
Regardless of the type of output chosen, GFC-
101E stores up to 64 totals for each 24 hours that
can be easily viewed on the liquid crystal display.
For improved accuracy, the GFC-101E provides
capabilities of using calibration tables for up to 10
points. In seconds the operator can switch between a
single K-FACTOR and the curve of up to 10 points.
The GFC-101E software implements a version of
our proprietary predictive/adaptive, self-adjusting
digital filtering which provides extremely stable
reading at any input frequency, plus very fast
response to any change in the flow.
The GFC-101E has an option for panel mount in
DIN 72x72 mm box.
The GFC-101E is the perfect solution for flow
measurement and control applications that require
high accuracy and reliability, small size, industrial
grade performance and low maintenance, at an
affordable price.
with an outstanding
Page 1
