Daktronics 5000 Series Installation Quick Manual

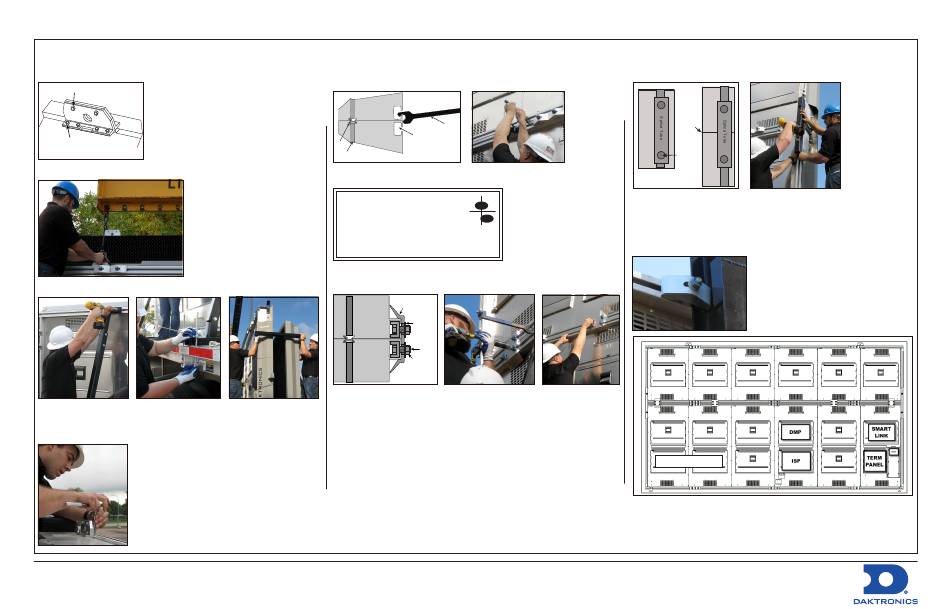

5000 Series Digital Billboard Installation Quick Guide
Display Installation
1. Verify lift-eye and set bolts are secure.
Lift-Eye Bolts
Use / " Wrench
7
16
Set Bolts
Top of Display
2. Attach the crane to the lift-eyes in the top section.
3. Remove the shipping hardware from the top section.
4. Use a / " wrench to remove the bolts holding the lift-eyes in the bottom
7
16
section together and to the display. Slide the two pieces of the lift-eye past
each other and lift them out of the channel.
DD3058925 Rev 02
03 March 2016
5. Lift the top section off of the truck.
6. Lower the top section on to the bottom section.
7. Use the splice wrench to align the display sections.
Top Section
Splice
Wrench
Bottom Section Mounting
Channel
Splice
Key
Splice
Channel
8. Verify the LEDs on both display sections align with each other.
LED Alignment
Verify LEDs align in all
directions between splices.
If the LEDs are more than 1/4
of an LED out of alignment,
adjust until properly aligned.
9. Evenly distribute the flat splice plates along the back of the display. Note:
The C-shaped splice plates must remain near the ends of the display.
Splice
Plate
Top
Section
Washer
Bolt
Bottom
Nut
Section
10. Use the torque stick from the spare parts rack, a 1
wrench to loosen the bolts that hold the vertical splice tube in the bottom
section. Tighten bolts to 75 to 100 ft.-lb. Consult the shop drawing for more
information.
Note: The spare parts rack is located behind the bottom-left display doors.
Refer to graphic at right
PO Box 5128 201 Daktronics Drive, Brookings, SD 57006-5128
tel: 800-325-8766 fax: 605-697-4700
www.daktronics.com
11. Rotate the vertical splice tube out of the channel, slide it out of the channel,
and rotate it back into the channel when it is split evenly between the
Installed Position
Shipped Position
display sections. After Splice
Top of Bottom Section
Back of
Display
Splice
Nut Access
Hole
12. Repeat Steps 10 - 11 on all vertical splice tubes.
13. Measure the uprights on the structure head and space the mounting clamps
on the back of the display to match the spacing. Note: If needed to match
the upright spacing, loosen and slide the horizontal splice tube until one of
the alternate alignment marks lines up with the display splice.
/ " socket, and an impact
1
16
SPARE PARTS
Page 1 of 2
Back of
Display
