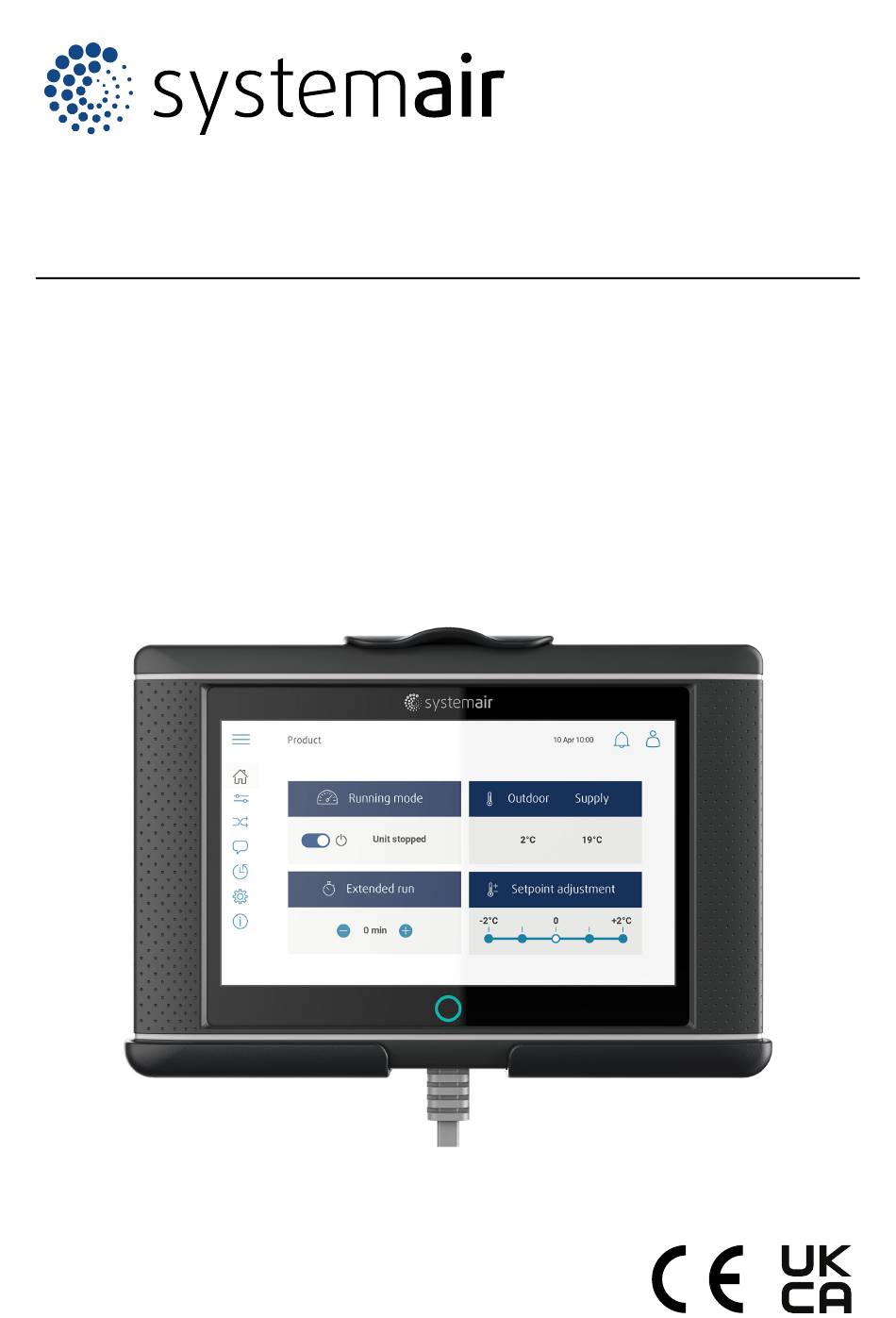

- Page 1 Installation instruction NaviPad...
-
Page 2: Table Of Contents
Table of contents 1 Introduction ............1 Product description ........1 2 NaviPad............... 1 To install the NaviPad holder ......1 To connect the NaviPad ........ 2 To clean the NaviPad ........2 Technical specification ........3 Troubleshooting .......... 3 Dimensions of the NaviPad and NaviPad holder ............ -
Page 3: Introduction
0-50° C. Find an applicable location for installation on the product or on a wall. The NaviPad is supplied with 3 m cable. To install the NaviPad holder more than 3 m from the unit, an extension cable is necessary. -
Page 4: To Connect The Navipad
Attach the cover for the plugs (A) and tighten the 3 screws. Attach the cover of the Access control cabinet and tight- en the 6 screws. To clean the NaviPad Disconnect the NaviPad and clean it with a dry cloth and a cleaning product for touch screens. -
Page 5: Technical Specification
Technical specification Technical data Refer to the data sheet in the online catalogue at www.systemair.com. Environmental Operating temperature, °C -0…+50 Storage temperature -20 to +50 Shock resistance 1.2 m drop Degree of protection, front/back IP54 System software Operating system Linux, Yocto... -
Page 6: Dimensions Of The Navipad And Navipad Holder
Dimensions of the NaviPad and NaviPad holder c/c D 40.3 59.4 77.5... - Page 8 © Copyright Systemair AB All rights reserved Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Document in original language...
