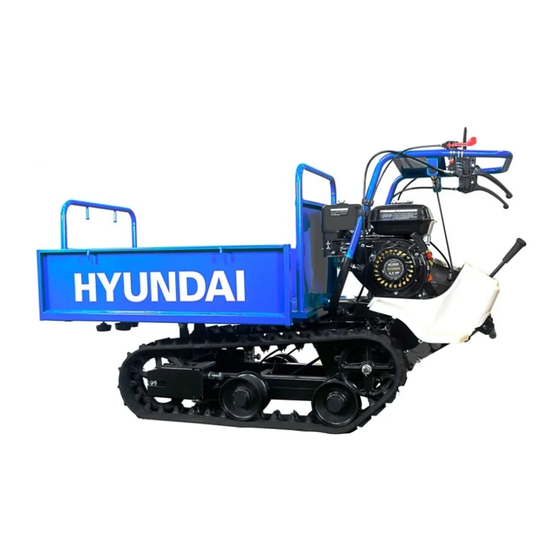

- Page 1 MINI DUMPER TRACKED FORKLIFT HYMD330-8B User Manual Under license from HYUNDAI CORPORATION HOLDINGS, Korea...
- Page 2 User and maintenance manual SECURITY INFORMATION Pay attention to the information provided in this manual and on the appliance for your safety and the safety of others. Pay particular attention to the headings shown below: Danger: This mark indicates instructions that must be followed to prevent accidents that could result in serious personal injury or death.
-
Page 3: Table Of Contents
User and maintenance manual CONTENTS ONE. SECURITY 1.1 Before driving 1.2 Driving 1.3 Loading Precautions 1.4 Parking 1.5 Inspections TWO. INFORMATION ABOUT THE NAMEPLATE LOCATION OF PARTS AND THEIR FUNCTION THREE FOUR. HANDLING 4.1 Preparations 4.2 Starting 4.3 Driving 4.4 Shifting gears 4.5 Parking MAINTENANCE AND REPAIR FIVE. -
Page 4: Before Driving
INTRODUCTION Dear user: Thank you for purchasing our HYMD330-8B tracked forklift. Before operating it, please read the instruction manual carefully to understand the operation of the truck and how to operate it safely. Keep this manual handy for future reference. Make sure that the manual remains with the machine when it is moved or loaned out. - Page 5 User and maintenance manual Do not use under the influence of alcohol Do not use the machine if you have drunk alcohol or taken any other drug or medication that could affect your ability to react. 1.2 Handling Do not use the machine in poorly ventilated areas Operating the machine in poorly ventilated or poorly ventilated areas can lead to poisoning by toxic fumes.
-
Page 6: Parking
User and maintenance manual Precautions regarding loading on sloping roads On roads with a gradient between 15-20 degrees, the load capacity should not exceed 150 kg. On slopes between 20-25 degrees, no load should be carried. Do not operate the machine on slopes steeper than 25 degrees. - Page 7 User and maintenance manual 3. LOCATION OF PARTS AND THEIR FUNCTION 1 Start lever ......Starts and stops the machine 2 Throttle lever ....... Controls engine speed 3 Turning mechanism .... Allows the machine to turn 4 Gear lever ......Controls the direction of travel (forward and reverse) 5 Speed lever ......
-
Page 8: Handling
User and maintenance manual 4. HANDLING 4.1 Preparations 4.1.1 Inspections Inspect the machine before starting it. See "inspection checklist" 4.1.2 Checking fuel and refuelling WARNING! Refuel away from open flames or sparks Refuel with the engine switched off Refuelling 1. Remove the tank cap, check the fuel level and top up if necessary. 2. - Page 9 User and maintenance manual Warning Do not allow persons to approach the machine while driving it. Be familiar with the work sites (roads, slopes etc.) before starting work to ensure safe driving. Do not exceed speed limits. Do not drive, accelerate or turn the machine sharply as this may cause skidding or overturning.
-
Page 10: Parking
User and maintenance manual 4.4 Change of speed WARNING! Changing speed can cause the machine to stall if not carried out correctly. 1. Make sure that the machine is stationary. Do not change speed while unloading or on a slope. 2. -
Page 11: Maintenance And Repair
User and maintenance manual 5. MAINTENANCE AND REPAIR CAUTION! Lack of proper maintenance is the main cause of breakdowns and accidents. To extend the service life of the product, carry out regular maintenance. Changes Recommended Capacity Frequency Product Fuel Unleaded petrol 95 At any time 3.6 L Engine oil... - Page 12 User and maintenance manual Inspection Frequency Every Every Every month year ° ° ° Displacement Gearbox Emission of noise or heat equipment during work ° ° V-belt Belt is worn ° ° Belt length is correct ° ° Friction clutch Noise emission at idling speed °...
-
Page 13: V-Belt Adjustments
User and maintenance manual 5.2 Displacement equipment Warning Stop the engine for maintenance or repair work Engine parts reach very high temperatures, even after the engine has been switched off. To avoid burns, carry out maintenance and repair work after the engine has cooled down completely. - Page 14 User and maintenance manual 5.4 Adjustments of the V-belt Caution To extend the life of the product, adjust the belt tension. 5.4.1 Inspections 1. Remove the plastic cover 2. Inspect the V-belt. Contact your dealer if any defects are found. 3.
- Page 15 User and maintenance manual 5.5.2 Adjustments 1. Remove the plastic cover 2. Loosen nut 1 3. Move the clutch lever to the "STOP" position. 4. Adjust nut 1 to ensure that the spring length is between 185-190mm. 5. Tighten nut 1 6.
-
Page 16: Problem Solving
User and maintenance manual 6. PROBLEM SOLVING Caution If you encounter any problems when using the machine, stop the machine and carry out the necessary checks. 6.1 Displacement mechanism 1. Move the starter lever to the "WALKING" position without starting the engine. 1.1 Check that the gearbox transmission is in the correct place. -
Page 17: Technical Data
User and maintenance manual 7. TECHNICAL DATA Name and model HYMD330-8B Weight Rated loading capacity Dimension Length 1620 Width Height Track length in contact with ground Track distance from the centre Cargo container bottom plate height Container Inner dimensions Length... - Page 18 User and maintenance manual 7. TECHNICAL DATA Name and model HYMD330-8B Walking Walking Speed Forward 1 Km/h performance Forward 2 Km/h Forward 3 Km/h Forward 4 Km/h Forward 5 Km/h Forward 6 Km/h Backward 1 Km/h Backward 2 Km/h Minimum turning radius 1.15...
- Page 19 Mini Dumper • Mini Dumper • Mini Dumper • Mini Dumper • Mini Dumper • Mini Dumper • Mini Dumper HYMD330-8B, HYMD500-4BH Cumple con las especificaciones de la directiva de la máquina y las modificaciones posteriores • Is in compliance with the specifications of the machine directive and subsequent modifications •...
- Page 20 Imported into Spain and Portugal by: GRV POWER PRODUCTS, S.L. Av. Àlguema, 8A 17771 Santa Llogaia d’Àlguema (Girona) T: (+34) 972 673 836 www.grvpower.com Under License from HYUNDAI CORPORATION HOLDINGS, KOREA...
