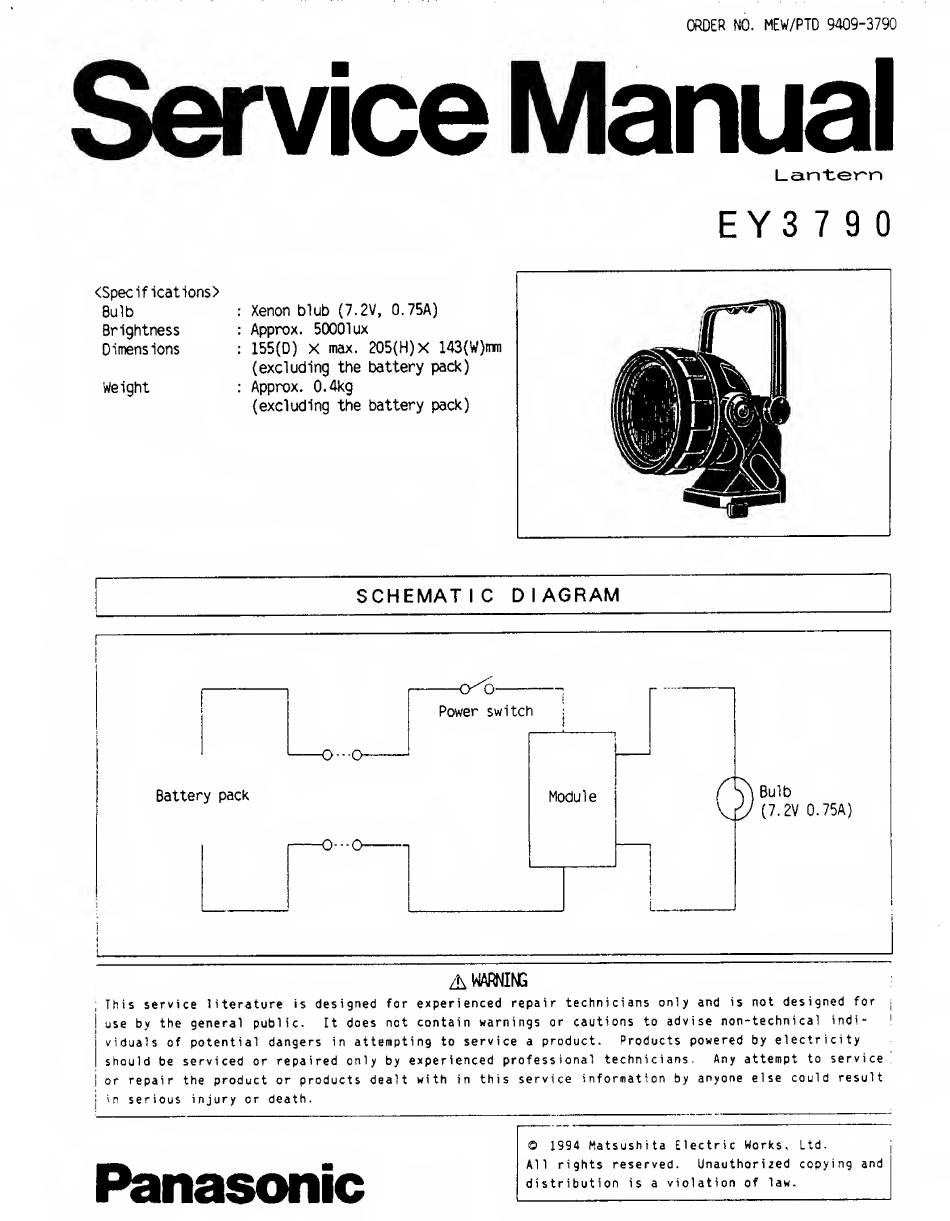

Panasonic EY3790 Service Manual

ORDER NO. MEW/PTD 9409-3790
Service Manual
Lan'ter'n
EY 3 7 9 0
<Specifications>
Bulb
Brightness
Dimensions
Weight
Xenon blub (7.2V, 0.75A)
Approx. 50001ux
155(D) X max. 205(H)X 143(W)mm
(excluding the battery pack)
Approx. 0.4kg
(excluding the battery pack)
SCHEMATIC DIAGRAM
I
I-Q..-Q.
Battery pack
I I-0---0-
A WARNING
; This service literature is designed for experienced repair technicians only and is not designed for
I
use by the general public. It does not contain warnings or cautions to advise non-technical indi-
i
viduals of potential dangers in attempting to service a product. Products powered by electricity
I
should be serviced or repaired only by experienced professional technicians. Any attempt to service
I
or repair the product or products dealt with in this service information by anyone else could result
I
in serious injury or death.
O 1994 Matsushita Electric Works, Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
-cKo
Power switch
Bulb
(7.2V 0.75A)
