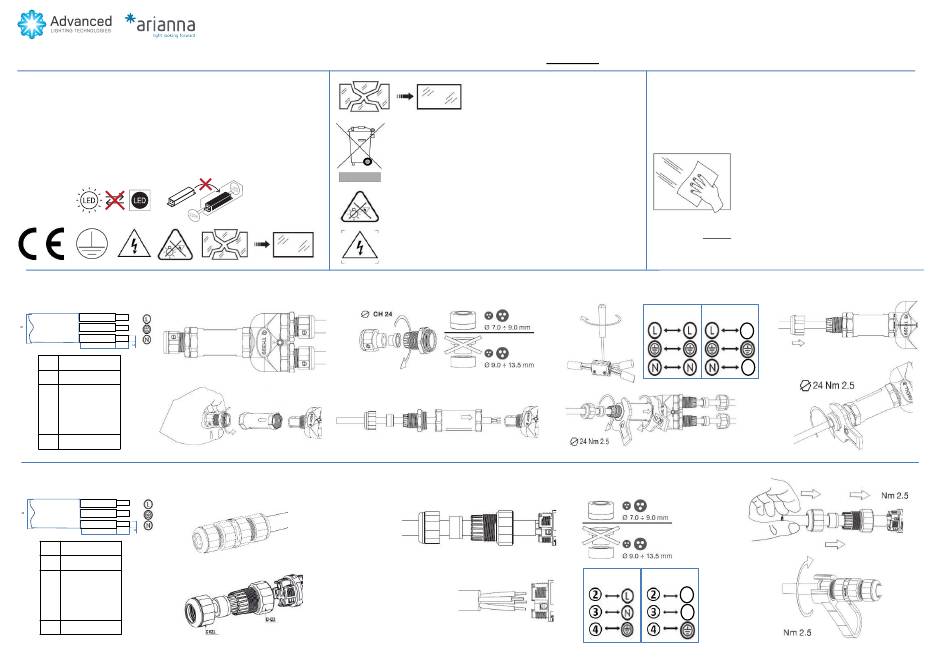

Advanced Arianna Petrarca 2.0 Installation Instructions

Arianna Petrarca 2.0 LED Floodlight Installation Instructions
Warning:
To ensure correct installation, follow these instructions.
Keep these instructions after installing the product.
This product must be installed by a qualified electrician or other authorised installer.
There are no serviceable parts in this product. Return to the manufacturer for any repairs.
Ensure the unit is not connected to the power during installation.
During installation and maintenance do not touch the glass and the reflectors to prevent
the deposit of dirt on them.
Do not use if the power cord is damaged.
This document is not subject to interpretation: if in doubt, contact the manufacturer.
INTEGRATED DRIVER POWER CONNECTION | 4-6 MODULES PETRARCA + 2 INTEGRATED DRIVERS.
Use a 2.5m2 H05RN-F or H07RN-F cable as power cable. Wire the power cable into the free terminals of the 3-way connector (the connector can be removed for easier installation).
①
BROWN-PHASE
CLASS I
Y/G-GROUND
BLUE-NEUTRAL
A B
A MAX 22 mm
B 8 mm
②
MIN 1.5 mm²
MAX 2.5 mm²
C
refer to local
requirements
D 7÷13.5 mm
INTEGRATED DRIVER POWER CONNECTION | 1-3 MODULES PETRARCA + 1 INTEGRATED DRIVER.
Use a 2.5m2 H05RN-F or H07RN-F cable as power cable. Wire the power cable into the free terminals of the 2-way connector (the connector can be removed for easier installation).
BROWN-PHASE
①
CLASS I
Y/G-GROUND
BLUE-NEUTRAL
B
A
A MAX 19 mm
B 6 mm
MIN 1.5 mm² ②
MAX 4 mm²
refer to local
C
requirements
D 7÷13.5 mm
Damaged safety glass must be replaced by
the manufacturer or their authorised re-sellers.
This symbol indicates that this product, once arrived at the end of life,
should not be disposed with other household waste. Users must provide a
separate collection. This behavior ensures that the equipment is treated
properly contributing to the conservation of resources of the environment.
Do not stare at the operating light source
The luminaire should be positioned so that prolonged staring into the
luminaire at a distance closer than 22m is not expected.
Caution, risk of electric shock
The light source contained in this luminaire shall only be replaced by the
manufacturer, authorised service agent or a similar qualified person.
NOTE: A 2.5m2 H07RN-F or H05RN-F cable (or equivalent) should be used. Flat cables are not acceptable.
③
④
NOTE: A 2.5m2 H07RN-F or H05RN-F cable (or equivalent) should be used. Flat cables are not acceptable.
③
Advanced Lighting Technologies Australia, Inc. | 110 Lewis Road Wantirna South VIC 3152 | www.adlt.com.au
IIS087 - ADLT Revision Date: 10 10 2023
Disclaimer: The design features and layout drawings are subject to change without notice.
GENERAL DATA:
Ingress protection: IP66
Impact resistance: IK08 - 5J
Electrical protection: CLASS I
Suitable for indoor use
Minimum distance to enlightened objects: 1m
Compliance: CEI EN 60598-1, CEI EN 60598-2-5, IEC TR 62778
Maximum installation height: 50m
OPTIONAL CABLE PROTECTION:
This document does not show the optional cable guard designed to protect
wiring from birds and other wildlife. When cable guard is fitted, the installer
should ensure cable is protected from birds at the connection point. Refer to
spec sheet on adlt.com.au for more information.
⑤
220V 380V
⑥
220V 380V
L1
L2
| Integrated Driver Instructions: (S-+050048SMS– rev. 0 – 31/08/2021)
MAINTENANCE:
Periodically perform surface cleaning,
taking care not use abrasive materials or
substances in order to prevent its damage
⑦
L1
L2
⑧
④
⑤
