Advanced Arianna Petrarca Installation Instructions

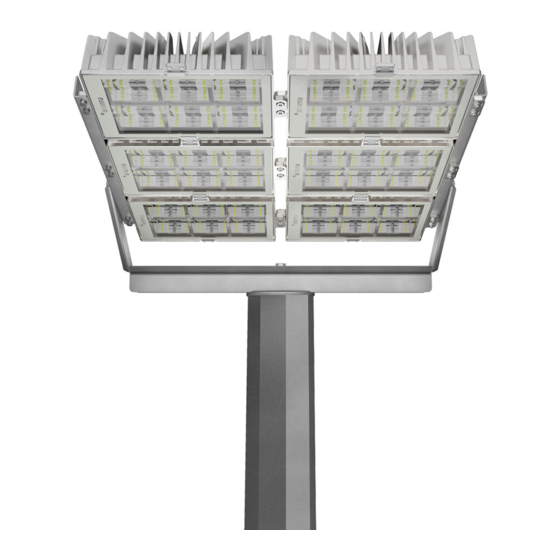

Arianna Petrarca LED Floodlight Installation Instructions
Warning:
To ensure correct installation, follow these instructions.
Keep these instructions after installing the product.
This product must be installed by a qualified electrician or other authorised installer.
There are no serviceable parts in this product. Return to the manufacturer for any repairs.
Ensure the unit is not connected to the power during installation.
During installation and maintenance do not touch the glass and the reflectors to prevent
the deposit of dirt on them.
Do not use if the power cord is damaged.
This document is not subject to interpretation: if in doubt, contact the manufacturer.

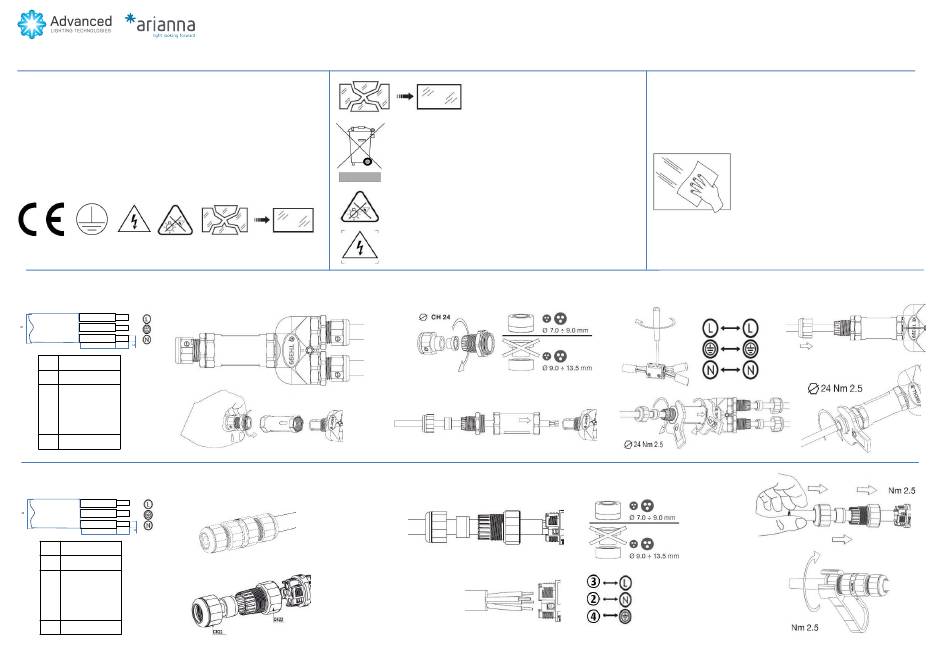

INTEGRATED DRIVER POWER CONNECTION | 4-6 MODULES PETRARCA + 2 INTEGRATED DRIVERS:

Use a H05RN-F or H07RN-F cable as power cable. Wire the power cable into the free poles of the 3-ways connector (the connector can be removed for easier installation):
BROWN-PHASE
①
CLASS I
Y/G-GROUND
BLUE-NEUTRAL
A B
A MAX 22 mm
B 8 mm
②
MIN 1.5 mm²
MAX 2.5 mm²
C
refer to local
requirements
D 7÷13.5 mm

INTEGRATED DRIVER POWER CONNECTION | 1-3 MODULES PETRARCA + 1 INTEGRATED DRIVER:

Use a H05RN-F or H07RN-F cable as power cable. Wire the power cable into the free poles of the 2-ways connector (the connector can be removed for easier installation):
BROWN-PHASE
①
CLASS I
Y/G-GROUND
BLUE-NEUTRAL
B
A
A MAX 19 mm
B 6 mm
MIN 1.5 mm² ②
MAX 4 mm²
refer to local
C
requirements
D 7÷13.5 mm
Advanced Lighting Technologies Australia Inc | 110 Lewis Road, Wantirna South, VIC 3152 | +61 3 9800 5600 | www.adlt.com.au
Damaged safety glass must be replaced by
the manufacturer or their authorised re-sellers.
This symbol indicates that this product, once arrived at the end of life,
should not be disposed with other household waste. Users must provide a
separate collection. This behavior ensures that the equipment is treated
properly contributing to the conservation of resources of the environment.
Do not stare at the operating light source
The luminaire should be positioned so that prolonged staring into the
luminaire at a distance closer than 22m is not expected.
Caution, risk of electric shock
The light source contained in this luminaire shall only be replaced by the
manufacturer, authorised service agent or a similar qualified person.
③
④
③
GENERAL DATA:
Ingress protection: IP66
Impact resistance: IK08 - 5J
Electrical protection: CLASS I
Suitable for indoor use
Minimum distance to enlightened objects: 1m
Compliance: CEI EN 60598-1, CEI EN 60598-2-5, IEC TR 62778
Maximum installation height: 50m

MAINTENANCE:

Periodically
taking care not use abrasive materials or
substances in order to prevent its damage
⑦
⑤
⑧
⑥
④
⑤
perform surface cleaning,
