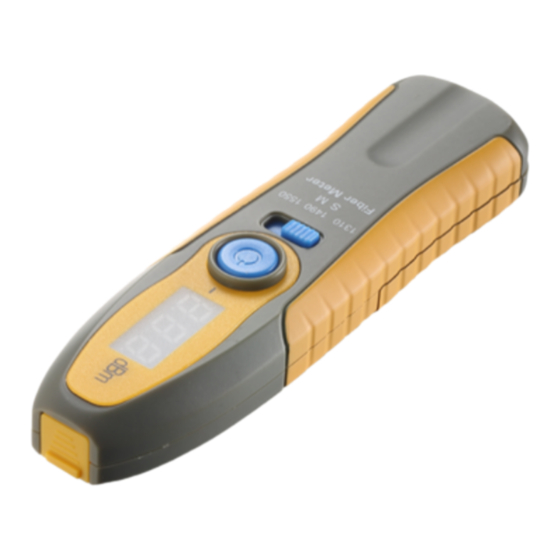

Optical Power Meter
OPM-M1 & OPM-M2
Optical Power Meter
Specification
&
User Manual
VER. A
OMC TECH CORPORATION
Page 1 of 8
1798 Technology Drive, STE 298, San Jose, CA 95110
VER. A
TEL: 408-520-9688
http://www.omctech.com
E-mail: sales@omctech.com
Reserved right to modify specifications without prior notice
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OMC OPM-M1
Summary of Contents for OMC OPM-M1
- Page 1 Optical Power Meter OPM-M1 & OPM-M2 Optical Power Meter Specification & User Manual VER. A OMC TECH CORPORATION Page 1 of 8 1798 Technology Drive, STE 298, San Jose, CA 95110 VER. A TEL: 408-520-9688 http://www.omctech.com E-mail: sales@omctech.com Reserved right to modify specifications without prior notice...
-
Page 2: Table Of Contents
3. Operating Instructions...……….…………………..…..5 4. Maintenance …………...………………..……………….7 5. Warranty………………..………………………………….7 6. Dimension………………..……………………………….7 7. Ordering Information ..………………………………….8 8. Service Contact..………………………………………...8 OMC TECH CORPORATION Page 2 of 8 1798 Technology Drive, STE 298, San Jose, CA 95110 VER. A TEL: 408-520-9688 http://www.omctech.com E-mail: sales@omctech.com... -
Page 3: Description, Features And Package Contents
Measuring power in within -40 dBm ~ +5 dBm ranges. 1.3 Package Contents 1x Optical Power Meter 2x AAA size alkaline batteries 1x User Manual OMC TECH CORPORATION Page 3 of 8 1798 Technology Drive, STE 298, San Jose, CA 95110 VER. A TEL: 408-520-9688 http://www.omctech.com... -
Page 4: Specification
2512 0.794 12.5 3162 2. Specification Wavelength OPM-M1: 1310 nm / 1490nm / 1550 nm OPM-M2: 850 nm / 1310 nm / 1550 nm Optical Power Range -40 dBm ~ +5 dBm Accuracy 850 nm ≦± 0.5 dB ≦± 0.3 dB... -
Page 5: Operating Instructions
Lift the Dust Cap for access to the connector Release linchpin then slide battery lid Open battery lid to change batteries. backward. OMC TECH CORPORATION Page 5 of 8 1798 Technology Drive, STE 298, San Jose, CA 95110 VER. A TEL: 408-520-9688 http://www.omctech.com... - Page 6 7. When the LED shows “Cb“(Check Battery), it means that the batteries are almost drained and in a low voltage state. You need to replace them right away. OMC TECH CORPORATION Page 6 of 8 1798 Technology Drive, STE 298, San Jose, CA 95110 VER.
-
Page 7: Maintenance
This warranty does not cover any defects, damage, or deterioration due to misuse, alteration, or negligence. OMC TECH CORPORATION Page 7 of 8 1798 Technology Drive, STE 298, San Jose, CA 95110 VER. -
Page 8: Dimension
3 Digits SM & MM 850 / 1310 / 1550 nm +5 ~ -40 dBm S200412 LC adapter for Optical Power Meter 8. Service Contact OMC TECH CORPORATION 1798 Technology Dive, STE 298 San Jose, CA 95110 TEL: 408-520-9688 E-mail: sales@omctech.com http://www.omctech.com...
