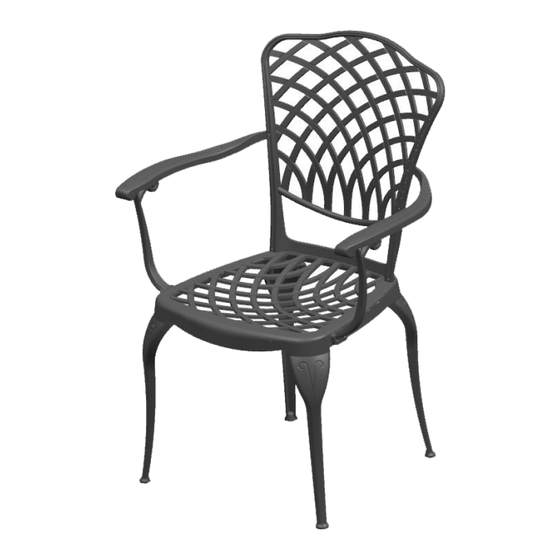

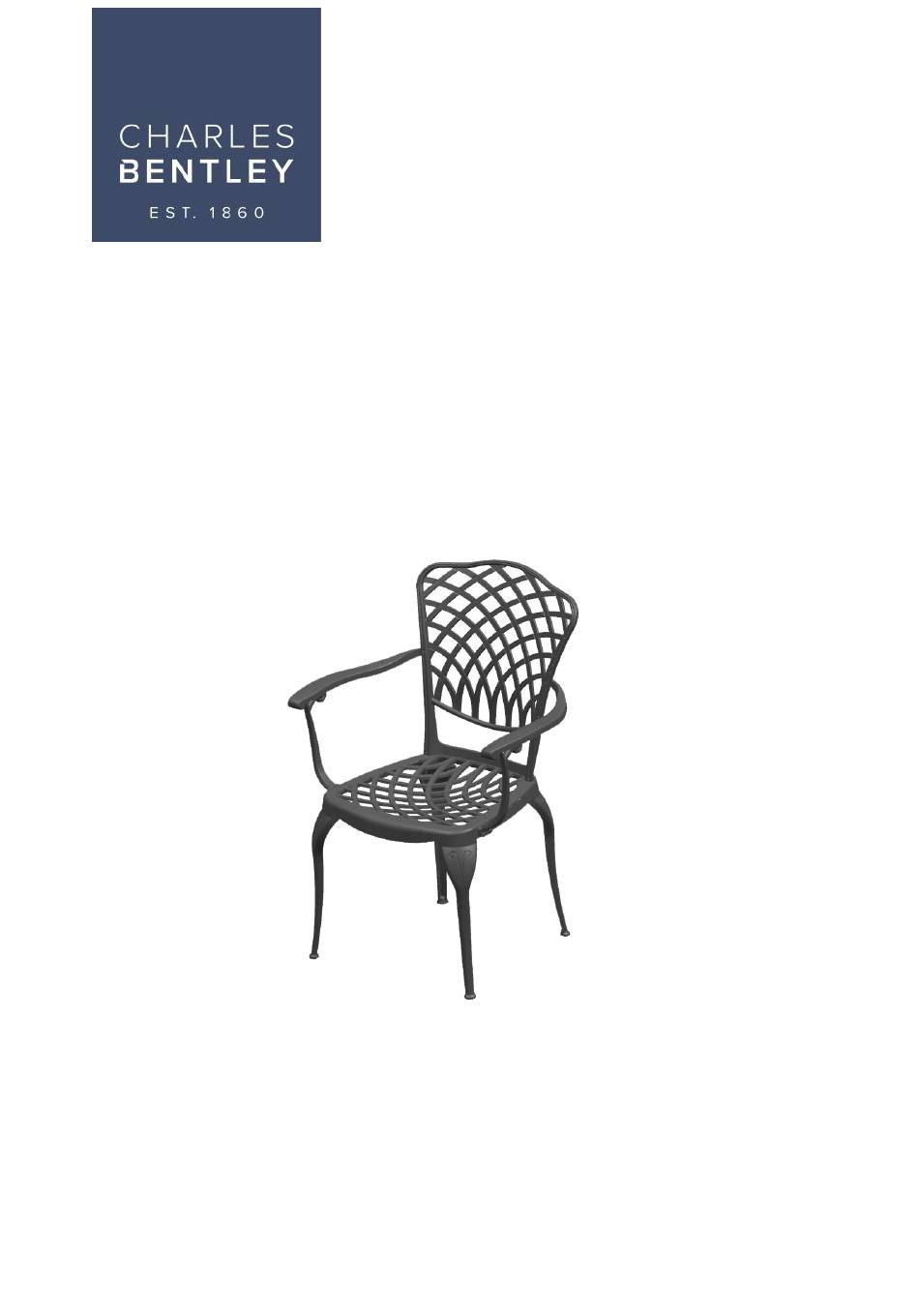

- Page 1 GLGFCAST04GY ASSEMBLY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS THOROUGHLY BEFORE STARTING ASSEMBLY...
-
Page 2: Parts List
PARTS LIST Part Part Description Part picture Description Parts Picture Qty. M8 Flat washer ① Backrest M8 Spring washer M8 Nuts ② Chair Seat M6*30 Stud ③ Chair Legs M6 Flat washer M6 Spring washer ④ Left arm M6 Nuts ⑤... - Page 3 INSTRUCTIONS Step 1 Step 2 Attach the backrest panel (①) Studs to the contact points Place all parts on a clean and soft on the chair seat panel(②) using Wahers and Nuts surface (A,B,C).DO NOT tighten the bolts. Step 3 Attached the legs(③)onto the Chair Seat(②)using washers,Spring washers and Nuts(A,B,C).Tighten the nuts using the Wrench(⑥) Step 4...
-
Page 4: Maintenance
WARNING 1. Do not discard any packaging until you have checked that you have all parts and fittings. 2. Ensure you have enough room for safe assembly. Ensure children and pets are kept out of the assembly area. 3. We suggest you carry out the assembly on a soft surface like a carpet or the opened box, so as to avoid scratching the paint.
