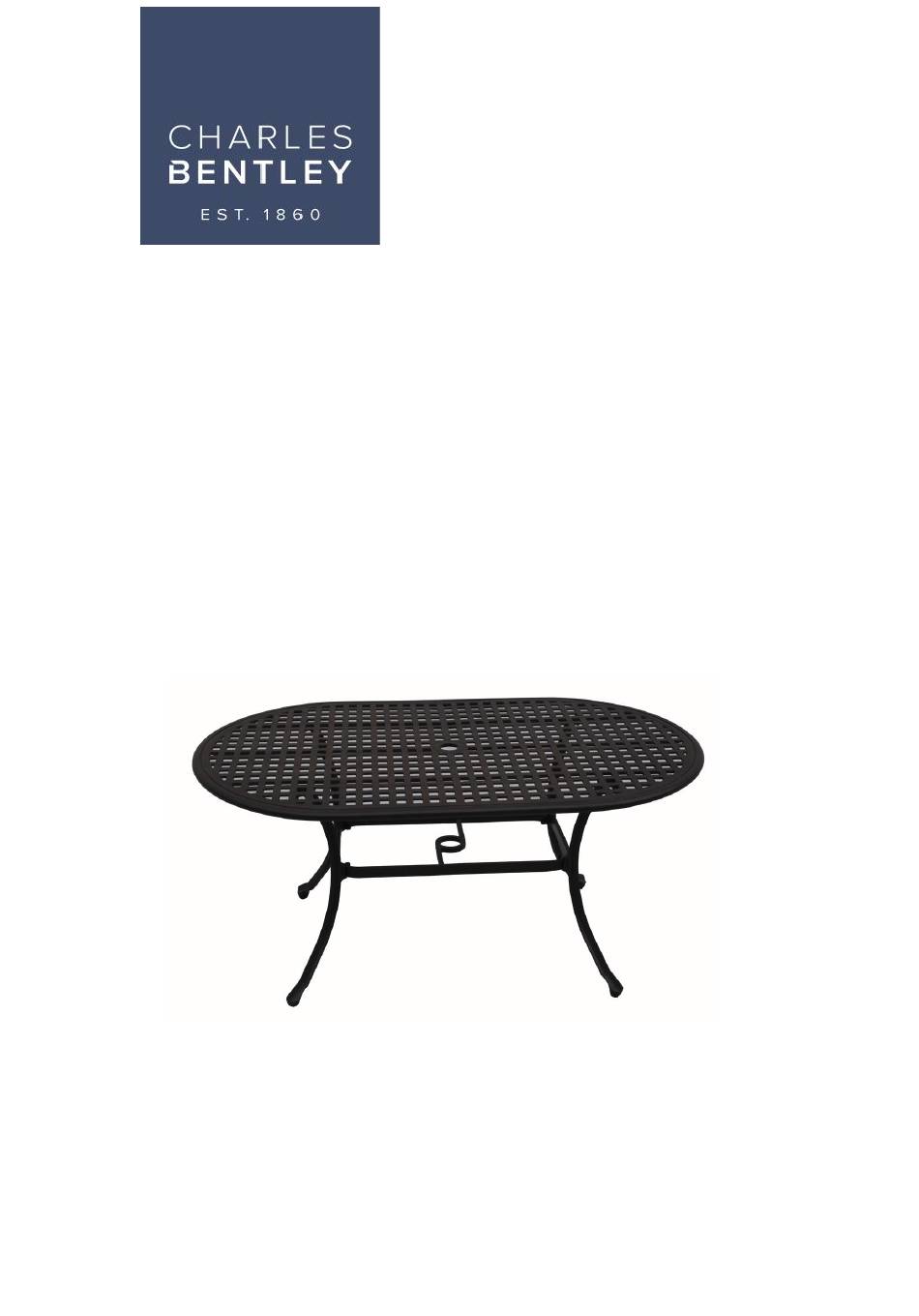

- Page 1 GL/CAST/TB.02 ASSEMBLY INSTRUCTION PLEASE READ ALL INSTRUCTIONS THOROUGHLY BEFORE STARTING ASSEMBLY...
-
Page 2: Parts List
PARTS LIST Part Part Description Part picture Description Part Picture Qty. ① Table Top M8 Nut M8 Spring ② Table Leg washer ③ Leg Support M8 Flat washer M8 protect ④ Wrench hats ⑤ Screwdriver Stud M8 ⑥ Note:Rubber Leg Pad L have been presaaembled Rubber Leg Pad... - Page 3 INSTRUCTIONS Step 1 Step 2 Turn over the table top.Attach the Stud M8(E) into the Nuts(inside table),Then,Attach table Legs(②) to the Studs on the Table Top (①) using Wahers and Nuts (A,B,C).DO Place all parts on a clean and soft NOT over tighten surface Step 3...
-
Page 4: Maintenance
WARNING 1. Do not discard any packaging until you have checked that you have all parts and fittings. 2. Ensure you have enough room for safe assembly. Ensure children and pets are kept out of the assembly area. 3. We suggest you carry out the assembly on a soft surface like a carpet or the opened box, so as to avoid scratching the paint.
