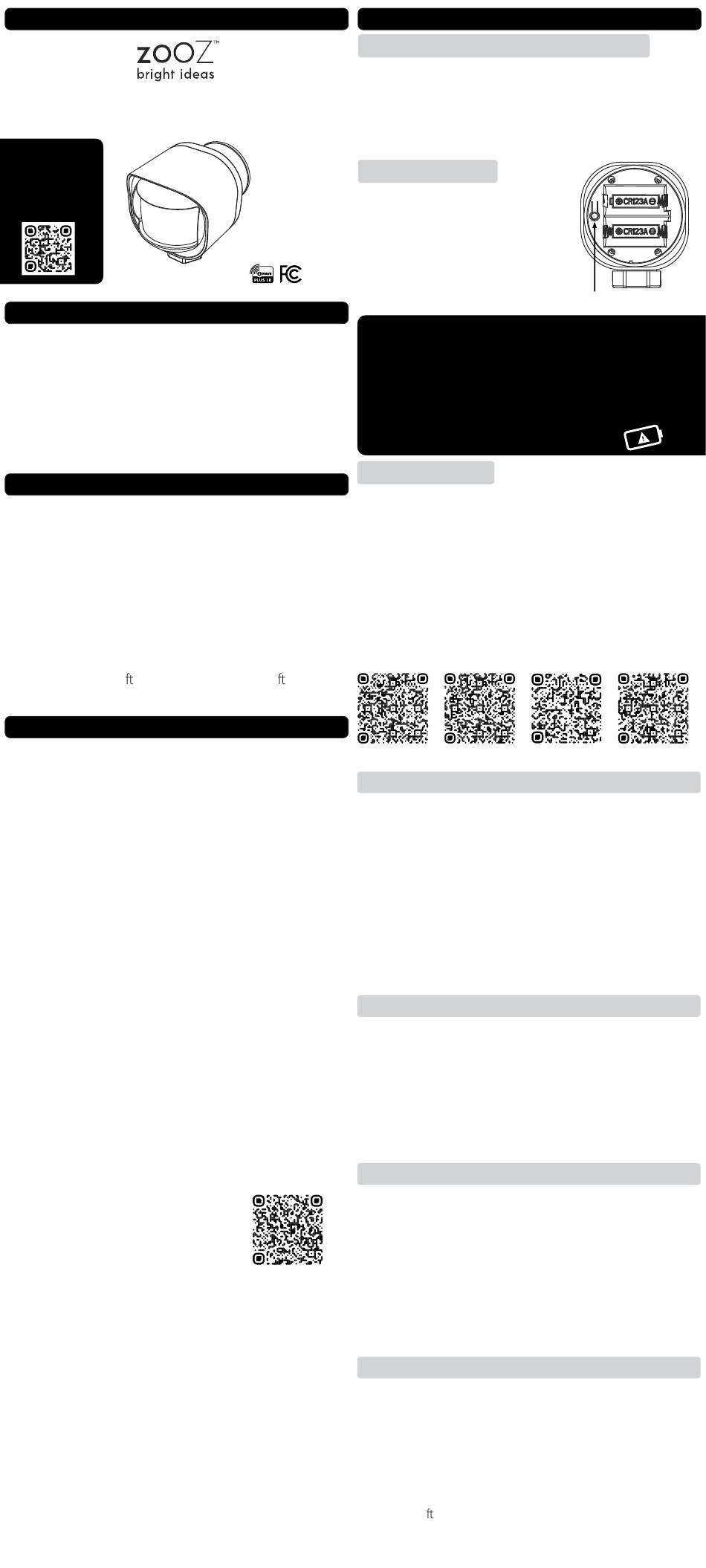

ZooZ ZSE70 800LR User Manual

USER MANUAL
OUTDOOR MOTION SENSOR
ZSE70 800LR
Scan to register
your product
for extended
warranty and
more perks.
www.getzooz.com
FEATURES
Quick and reliable motion alerts to Z-Wave hub
Ÿ
Accurate temperature monitoring
Ÿ
Lux sensor for smart light automations
Ÿ
800 series Z-Wave chip + SmartStart technology
Ÿ
Z-Wave Long Range for no-mesh communication
Ÿ
Battery or 12-24 V power with sealed terminals
Ÿ
Rated for indoor or outdoor use
Ÿ
SPECIFICATIONS
Model Number: Z SE70 800LR
Ÿ
Z-Wave Region: CA/US/MX
Ÿ
Power: 2 x CR123A (3 V) batteries / 12-24 V AC/DC
Ÿ
Motion Detection: up to 30 feet
Ÿ
Temperature Range: -10°C to 50°C / 14°F to 122°F
Ÿ
±2°C / 1°F accuracy
Light Sensor Range: 0 LUX to 30000 LUX with ±20%
Ÿ
accuracy
Dimensions: 2.34" x 2.4" x 2.75"
Ÿ
Range: Up to 130 line of sight up to 1300 with LR)
Ÿ
Installation and Use: Indoor or outdoor (IP66)
Ÿ
INSTALLATION
1. CHOOSE POWER SOURCE
You can use 2 CR123A lithium batteries to power the
sensor. They'll last around a year depending on traffic,
reporting settings, and general quality of the batteries.
OR you can use the optional 12-24 V power supply
(insert wires using the sealed terminals) and not worry
about batteries at all. If powering by 12-24 V and
keeping the battery as back-up, please note that if
you include the sensor with the 12 V wires plugged
in, it will keep the Z-Wave radio on at all times
which will drain the batteries within 48 hours once
the 12 V power source is disconnected.
2. INSTALL BATTERIES / USB POWER
Twist the back cover counter clockwise to open it and
access the batteries. Pull on the battery tab to power
the sensor. The LED indicator will start blinking.
If using 12-24 V, replace the bottom cap with terminal
seal. Unscrew the cap and connect 12-24 V wires to the
terminals (follow polarity). Install the cover: gently
mount the 3 pieces included in the box starting with
the frame, then add the seal, and screw the cover on.
Scan the QR code and follow the link
to watch a video on how to install the
12-24 V power source.
3. TEST THE SENSOR
Once the device is powered, the LED indicator will start
blinking if the sensor hasn't been included to your
Z-Wave network yet. If it's already part of your network,
it will light up for 2 seconds and flash once.
The LED indicator doesn't blink or light up at all?
Make sure the batteries are inserted correctly per the
Ÿ
positive / negative pole marks.
Try fresh lithium non-rechargeable batteries.
Ÿ
Make sure your 12-24 V connections are firm and the
Ÿ
power supply is functional.
Click the Z-Wave button 3 times as quickly as possible
Ÿ
to force inclusion/exclusion mode in case you missed
when it first flashed.
PAGE 1
1. ADD DEVICE to your hub (SmartStart)
Initiate inclusion (pairing) in the app (or web inter-
face). Not sure how? ask@getzooz.com
If you're using an S2 hub, it will ask you to enter the
DSK key or scan the QR code printed on the sticker on
the side of the cover to complete SmartStart inclusion.
2. POWER the sensor
Insert the batteries or the 12 V
wires. The LED indicator will start
blinking and the sensor will join
the network automatically once
S2 you scan the code.
æ
IMPORTANT!
NEVER include the sensor powered with 12 V
and then switch over to batteries. Your hub will
recognize the sensor as a Z-Wave repeater and
the batteries will drain quickly. Always include
the sensor powered by batteries only if you're
planning to use it as a battery device.
MANUAL INCLUSION
Put your Z-Wave hub into inclusion mode and click the
Z-Wave button 3 times as quickly as possible. The LED
indicator will start blinking to confirm inclusion mode
and turn off once inclusion is completed. The sensor
will automatically pair as a repeater if connected to 12-
24 V power, no special button sequence required.
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to access the step-by-step
pairing instructions.
Z-Box Hub
The sensor won't add to your system? Try this:
1. Initiate EXCLUSION in your hub and click the Z-Wave
button 3 times as quickly as possible.
2. Click the Z-Wave button 4-5 times as quickly as
possible when including it.
3. Bring the sensor closer to your hub, it may be out of
range.
4. Double-check if the device is powered.
5. Get troubleshooting tips specific to your hub at
www.support.getzooz.com
EXCLUSION (REMOVING / UNPAIRING DEVICE)
1. Bring the sensor within direct range of your Z-Wave
gateway (hub).
2. Put the Z-Wave hub into exclusion mode (not sure
how to do that? ask@getzooz.com).
3. Press and release the Z-Wave button 3 times quickly.
4. Your hub will confirm exclusion and the sensor will
disappear from your controller's device list.
When your network's primary controller is missing or
otherwise inoperable, you may need to reset the device
to factory settings manually. In order to complete the
process, make sure the sensor is powered, then hold
the Z-Wave button down for at least 10 seconds. The
LED indicator will start flashing blue and turn solid blue
for a couple of seconds to indicate successful reset.
NOTE: All previously recorded activity and custom settings will be
erased from the device's memory.
The sensor's wake-up interval is set to 4 hours by default to
save battery life. Use the Wake Up Command Class to adjust
the interval (in seconds, working in 3600s intervals, with 3600
as min and 86400 as max values). Click the Z-Wave button
once to wake the sensor up manually. During wake-up, the
sensor turns the Z-Wave radio for
communication
affect how o en the sensor reports motion or other values to
your hub.
Z-WAVE CONTROL
SmartThings
Hubitat
TROUBLESHOOTING
FACTORY RESET
WAKE-UP MODE
10 seconds to receive
from the hub. Long wake-up interval will not
PAGE 2
Z-WAVE BUTTON
Home Assistant
