iFORWAY HS1800 User Manual

Portable Power Station
HS1800
User's Manual
Thank you for purchasing our energy storage series products.
We are striving to create innovative products with extreme safety and excellent performance for you, and we are
trying our best to make the products simple and easy to use.But in view of the particularity of battery products, Please
read the user's manual carefully before using the product to ensure a safe and satisfactory operation.
CAUTION
1. Please keep dry and stay away from fire.
2. Do not disassemble, puncture or squeeze the portable power station.
3. Please recycle and dispose of the product in accordance with local laws and regulations.
4. Please hand it over to a professional recycling company to dispose this portable power station.
5. Children and the disabled please use this product with guardian.
Safety Instructions and Maintenance
1. Please read the manual carefully before using the product.
2. To reduce the risk of injury,please pay more attention when using this product near children.
3. Do not put fingers, palms or any part of your body into the product.
4. Use the unrecommended accessories may cause fire, electric shock or personal injury.
5. Do not use damaged or modified battery packs or devices.
6. Do not operate the portable power station with a damaged cord, plug or output cable.Otherwise it may cause a short
circuit and risk of fire.
7. Please hand the power station to a qualified service provider for repair or maintenance.Do not disassemble the
portable power station by yourself,as wrong disassembly method may cause the risk of fire or electric shock.
8. In order to reduce the risk of electric shock when the product fails, disconnects the portable power station from the
power supply before performing any instructive maintenance operations.
9. Please charge the product in a well-ventilated place, do not obstruct the air circulation.
10. Under some extremely harsh conditions, liquid may be ejected from the battery. Avoid contact with batteries and
liquids.If contacted please rinse with plenty of water.If the liquid comes into contact with the eyes, please seek other
medical help.
11. Please do not expose the product to fire or excessive heat.
12. Only repairs by qualified service personnel.
13. Please do not exceed the specified input AC voltage. Otherwise it may cause product failure,we will not be
responsible for providing free maintenance services.
Please keep the safety instructions properly.

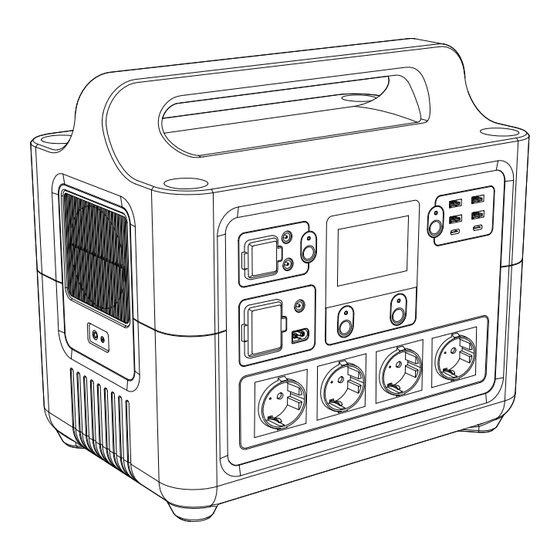

Introduction
1. Faster Charging from the Wall
HS1800 offers multiple recharging options. Industry-leading 1000W High Power AC input lets you recharge in as
little as 2 hours. or to recharge by car or solar panel up to 300W.Charge the HS1800 from the sun with our portable
solar panels while away from the grid, and keep it topped off from a wall outlet when you're home. Integrated MPPT
charge controller ensures you're getting the most efficient solar charge possible.
2. HS1800 is a gas-free solar powered generator with versatile port options,and it support to power a wide range of
devices with different port options including fast-charging 100W USB-C Power Delivery, multiple fast quick
charging USB-A ports, regulated 12V, and AC ports.
1
2
3
4
5
6
7
8
1 5
AC Input Port
DC ON/OFF Switch
2
DC Output Port 6 Solar Input Port
3 Car Socket 7 AC ON/OFF Switch
4 8
DC Input Port AC Output Ports
Specification
Capacity: 1484Wh (25.6V/58Ah)
Battery Type: LiFeP0
4
AC 1000W Max.
Input:
XT60 12-30V/Max 10A ( Max 300W )
DC 5521 12-30V/Max 7A ( Max 200W )
Inverter Waveform: Pure Sine Wave
Rated Power: 1500W
AC Output:
Peak Power: 2000W
2x USB-C PD 100W ( 5V/9V/12V/15V/20V, Max 5A)
4x USB-A QC3.0 ( 5V/3A, 9V/2A,12V/1.5A) per port Max.18W
DC Output:
1x Car Socket 13.6V/8A, Max 108.8W
2x DC5521
13.6V/8A, Max 108.8W
LCD Display
k
l
m
n
o
p q
a
Battery Information
b
indication
c
k
Input indication
j
o
Output indication
p
Remaining time
l
indication
f
Protection indication
g
h
CAUTION
9
10
11
12
14
13
9
LCD Display 13
10 USB ON/OFF Switch 14
11 QC3.0 USB-A Ports x4
12
PD100W USB-C Ports x2
220-240V~,50Hz
US/JP/AU has 6 ports.
220-240V~,50Hz European/CN/UK
/Universal has 4 ports.
Total share 8A Max
e
g
j i h f
d
r s
Battery failure/Low
Battery Power Level %
d
voltage indicate
Battery high/low
e
Battery Power Level
temperature indication
Battery lock protection
AC Input DC Input
i
s
Solar Input Input power
q
AC Output Icon DC/ Car Outlet Output
USB Output Icon Output power
r
Minutes
l
Remaining discharge
/ charge time
Hours
l
Overload protection
System failure
m
indication
indication
Over temperature Over temperature
n
indication protection indication
Low temperature
indication
Main Power Button
Ground Connection
c
b
a
