Page 1 MotoAlarmSystem 800V1 / 800V4 Installation & user manual...
Page 3: Table Of Contents
Contents Page 2.1 Introduction 2.2 Innovative security Keeloq Code Hopping 2.3 Innovative security systems 800V1 and 800V4 2.4 Alarm notiﬁcations 2.5 Impact detection 2.6 Tilt sensor 2.7 Security with perimeter protection 2.8 Protect motorcycle from battery disconnection 2.9 Starter kill 2.10 Battery safety...
Page 4 Contents Page 2.23 Security disarming without remote control 2.24 Security disarmament with Personal PIN code 2.25 Remotes registering to the System Memory 2.26 Programming menu - Output GPS 2.27 LCD transmitter (alarm notiﬁcations) 2.28 The system security and anti-theﬅ functions 2.29 System arming with tilt and shock sensors active 2.30 System arm.
Page 5: Introduction
LCD screen of your remote control. ELSER models 800V1 and 800V4 are innovative security systems with the highest quality standards for motorcycle, ATV, scooters and other motorcycle type machines with 12Volt battery.
Page 6: Innovative Security Systems 800V1 And 800V4
ELSER models 800V1 and 800V4 are innovative security systems and include a wide variety of features. Alarm Notiﬁcations!! Should your motorcycle alarm go oﬀ, you'll receive instant safety alerts with crisp icons and sounds right on your remote's LCD screen.
Page 7: Starter Kill
GPS Tracking on your smartphone for extra added security and comfort. 2.12 Secure Your Motorcycle with 2-Way Alarm Alerts The ELSER 800V4 features an interactive LCD screen that keeps you up to date on your vehicle's status all in one great value. 2.13 BUILT-IN BACKUP BATTERY It provides the system with the ability to transmit information and activate the siren when the power is interrupted.
Page 8: Automatic Battery Power Saving Configuration

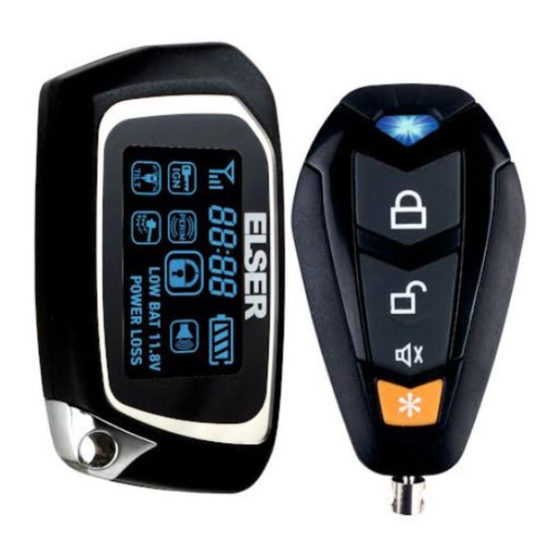

4–buttons 1-way remote 2.17 Technical Speciﬁcations of models ELSER 800V1 with FSK technology. Receive distance of transmitter: up to 800 meters in open area. ELSER 800V4 with LoRa technology. Receive distance of transmitter: up to 3000 meters in open area.
Page 9: Icons Remote Lcd With Function
2.18 ICONS REMOTE LCD WITH FUNCTION ARMED MODE DISARM Remote Transmission You are transmitting the signal to control unit In – Range Indication You are within the remote control range Activate on the Tilt sensor Activate on the Perimeter sensor Activate on the ING Shock sensor 1st level activated Shock sensor 2nd level activated...
Page 10: Alarm Signals
2.19 ALARM SIGNALS If any of security sensors is triggered in the guard mode, this will automatically activate alarm signals: siren sounds and light ﬂashes. The remote will give alert beep sounds and the display will indicate the alarm activation reason. While siren sounds the remote display will indicate ﬂashing icon corresponding to the triggered zone.
Page 11: Sensors Settings
2.20 SENSORS SETTINGS You can adjust the shock and tilt sensors using the LCD remote control. 2.21 SHOCK SENSOR SETTINGS The adjustment of the shock sensor is performed in disarmed mode in the following order: Turn IGNITION to ON position. Press and hold button 4 on the LCD remote for 5sec.
Page 12 Press remote button 2 To decrease <the sensitivity level by (1) one step each time, the LCD transmitter will respond with sounds and the corresponding number will appear at the bottom of the screen (min level is 1) Aﬅer setting the sensitivity of shock sensor, continue setting the Tilt sensor.
Page 13 Press remote button 1 To increase >the sensitivity level by (1) one step each time, the LCD transmitter will respond with sounds and the corresponding number will appear at the bottom of the screen (max level is 5). Press remote button 2 To decrease <the sensitivity level by (1) one step each time, the LCD transmitter will respond with sounds and the corresponding number will appear at the bottom of the screen (min level is 1).
Page 14: Time Clock Setting
2.22 TIME CLOCK SETTING Press and hold remote button 1 and button 2 for 1sec together. LCD transmitter will respond with a “Bi” sound and the hour and minute icon will appear on the LCD screen conﬁrming that you are in the time clock setting, the hour digit will ﬂash.
Page 15: Security Disarming Without Remote Control
Save the set state, and exit from setting menu. LCD transmitter will respond with 1 sound and will get back to standby and time display. 2.23 Security disarming without remote control (factory default) Use this feature in any case the remotes are lost or aren't correctly functioning.
Page 16: Remotes Registering To The System Memory
2.25 Remotes registering to the system Memory Encoding remote transmitters in system memory Remote registering is performed in disarmed mode in the following order: Unplug the power fuse from the system and plug again, the system will emit (2) two siren chirps and direction lights ﬂasher. Turn switch IGNITION ON/OFF (3) times and stay in ON position.
Page 17: Programming Menu - Output Gps
2.26 Programming menu-output GPS (positive factory setting) Turn INGITION to ON-OFF-ON position. Press and release Νο 4 button on the LCD remote, will respond with three chirps, you are in the programming menu: Output positive: Press No1 button. The LCD transmitter will respond with chirp once.
Page 18: The System Security And Anti-Theﬅ Functions
System Arming with Tilt and shock sensor active Before security arming make sure that: Ignition switch is oﬀ. ELSER 800V1 and 800V4 have an arming delay of 10sec. Press remote button 1 The siren will chirp once and parking light will ﬂash once.
Page 19 This ELSER 800V4 security system allows the user to program a personal password that oﬀers a high level of security for the motorcycle Turn switch ignition ON/OFF (5) times and remain at the OFF position. Within 15sec press and hold down the button 4.
Page 20: System Arm. With Tilt, Shock And Perimeter Sensor
2.31 System arming with tilt, shock and perimeter sensor Press the remote button 1. The siren will chirp once and parking lights will ﬂash once within 3sec press button 3. The system will emit (2) twice additional siren sounds and the parking lights will ﬂash (1) one more time. The LCD transmitter will respond with 1 sound and the icon will appear on the LCD screen conﬁrming that the system is armed w/tilt, shock and perimeter...
Page 21: Motorcycle Search In A Parking Lot And Panic Mode
2.33 Motorcycle search in a parking lot and panic mode System is armed Quick press remote button 4. Panic mode The siren will activated and the turn signals will ﬂash for 30 seconds. Long press the No 4: button on the LCD remote for 3secs, the siren does not sound, only the parking light ﬂashing to inform the owner of the location of the motorcycle.
Page 22: Motorcycle State And Battery Voltage Control
2.35 Motorcycle state and battery voltage control During disarmament of the system will emit 2 sounds 1 additional siren sound means that the battery voltage of the motorcycle is 11.8V or lower. The LCD transmitter will respond and will appear on LCD screen the letter LOW BAT 11,8V the letter will remain on the screen for 5sec.
Page 23: How To Activate The Built-In Battery
By disconnecting the battery cables from the motorcycle, the alarm system with the built-in battery automatically activates the siren sound. The LCD remote control will automatically respond with continuous beeps and the word POWER LOSS will appear on the LCD screen, to indicate that the motorcycle has been attacked by an unauthorized person by cutting the battery or alarm module wires.
Page 24: Installation And Connection Of The System
2.40 Installation and connection of the system General installation requirements Find the ideal point by placing the unit and organizing the wiring on the particular motorcycle, a procedure must be followed for the system to function properly. Check the spaces and construction of the motorcycle, to decide what is the best available space for mounting the unit and accessories.
Page 25: Main Unit Wiring Information
2.41 Main unit wiring information Black connector 10PIN it is divided into black 4PIN connector and constitutes the central wiring of the alarm unit Installation is designed to be easy and quick. Black connector 4PIN Black wire: (-) ground or to the negative pole of the battery. Gray wire: +12V output with fuse on the right turn signal.
Page 26: Optional Accessories
Upgrade your security system for even more security 2.42 Optional Accessories MD-4 Perimeter sensor MD-4 Perimeter sensor Safety with perimeter protection – Detects movement around the motorcycle designed with 3 warning levels. Installation MD-Perimeter sensor Connect the black cable of the MD-4 device to the accessory wiring directly to the black 4PIN with a three-wire plug that the main unit wiring has.
Page 27: Gps Tracking
2.43 GPS tracking Pair your alarm system with ELSER TRAC to get GPS Tracking on your smartphone for added security and convenience! Installation of GPS ELSER TRACK Device Connect the black cable of Elser Track device to the accessory wiring...
Page 28: Starter Kills
2.44 Starter kills Starter– kills MD-5 Eliminate motorcycle theﬅ by preventing thieves from starting the motorcycle engine while the ELSER security system is armed. Installation Connect the black cable of the MD-5 device to the accessory wiring directly to the black 2PIN with a two-wire plug that the...
