Ronix 4451 Manual

Gasoline lawn mower
Hide thumbs

Advertisement

Table of Contents

GASOLINE LAWN MOWER
4451

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4451 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 4451

Summary of Contents for Ronix 4451

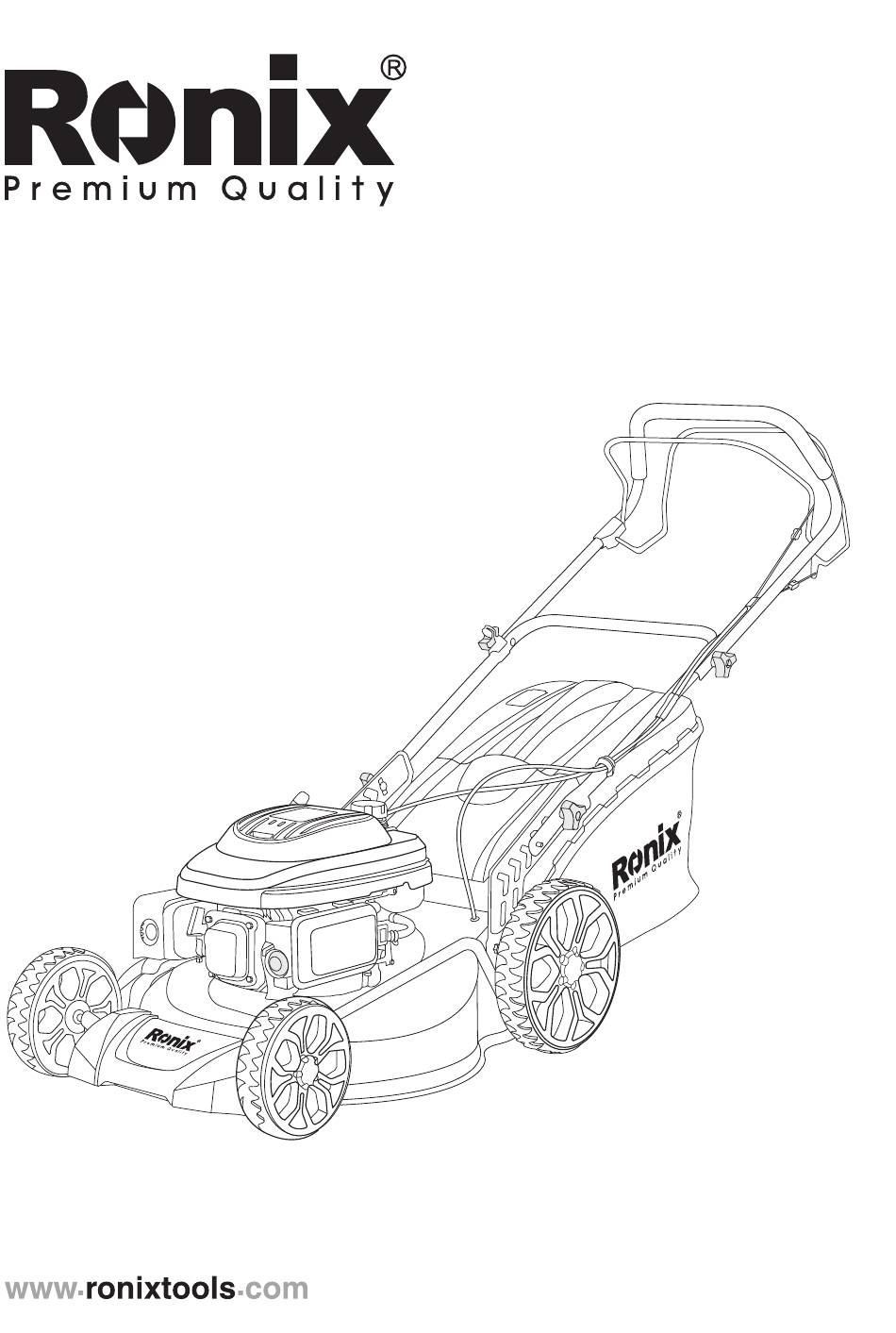

  • Page 1 GASOLINE LAWN MOWER 4451...

  • Page 3: Technical Specification

    TECHNICAL SPECIFICATION Model 4451 Engine Power 6.5HP Engine Type Single Cylinder, Four Stoke, Air Cooled Fuel Tank Capacity 1.3L Oil Tank Capacity 600ml Carburetor Type Float Carburetor Fuel Consumption Rate 0.95 l/h Displacement 196cc Maximum No-Load Speed 2900RPM Ignition System...

  • Page 4: Part List

    PART LIST Drive Control Blade Control Upper Handle Bottom Handle Knobs Square Neck Bolt Grass Bag Knobs Petrol intake Oil Fill Air Filter Height Adjustable Handel Side Cover Side Dischge Recoil Strater Spark Plug Please read these instructions carefully and make sure you understand them before using this machine.

  • Page 5: Operation

    proper use of the equipment. - Never allow children or people unfamiliar with the instructions to use the lawnmower. Never mow while people, especially children, or pets are nearby. - Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
  • Page 6 - Avoid operating the equipment in wet grass, where feasible. - Always be sure of your footing on slopes. - Walk, never run. - For wheeled rotary machines, mow cross the face of slopes, never up and down. - Exercise extreme caution when changing direction on slopes. - Do not mow excessively steep slopes.

  • Page 7: Maintenance And Storage

    - Stop the engine: - whenever you leave the lawnmower; - before refueling. - Reduce the throttle setting during engine shut down and, if the engine is provided with a shut off valve, turn the fuel off at the conclusion of mowing. MAINTENANCE AND STORAGE - Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.
  • Page 8 Always wear protective equipment Switch off the device and disconnect the spark plug before carrying out any maintenance, cleaning or transport work on it Guaranteed sound power lever Please read the Instruction manual carefully and make sure you understand the instructions before using the machine. Danger of cutting yourself Blades in movement.
  • Page 9 2- Upper handle assembling - Insert bolt (M8X45) into left handle holder, lower handle and upper handle assembly in turn, then tighten with knob nut. - Insert bolt (M8X45) into right handle holder, lower handle, upper handle assembly and start rope hook in turn, then tighten with knob nut. - Fasten cables with the clips on the handle rod.
  • Page 10 4- Grass collection setting: 1- For rear bagging - Grass catcher box installed. 2- For rear discharging - stall grass catcher. - close the rear cover. 3- For side discharging(If equipped) - Rear cover closed. - keep pushing down the "PUSH", then open the side cover - side discharge guard installed.

  • Page 11: Start And Stop

    Mow the lawn twice weekly during the most active periods of growth. Never cut more than 1/3 of the length of the grass, especially during dry periods. Mow with a high cutting height setting the first time. Examine the result and lower the mower to the desired setting. Mow slowly or mow the grass twice if it is very long.
  • Page 12 DO NOT FILL WITH PETROL WHILE THE ENGINE IS RUNNING. 2- Add oil: See the Technical data table for the oil to be used. - Place engine level. - Clean around oil fill. - Remove the filter cap, clean the tip of the dipstick, insert and tighten down. - Remove dipstick again and check the oil level that must be between the “MIN”...
  • Page 13 c- Then pull cord rapidly. d- When engine starts, release the recoil starter. NOTE : If the engine does not start, repeat whole starting procedure. NOTE: If the engine starts but does not keep running, repeat the whole. STARTING STARTING THE ENGINE (HOT STARTING) Follow the whole cold starting procedure.
  • Page 14 OPERATION 1- The mower should not be used on ground that slopes more than 15°. This could cause engine lubrication problems. 2- To empty grass catcher: when the indictor cap is closed, the grass catcher is full. Please empty it. - To remove grass box, release engine brake control to stop engine.

  • Page 15: Cleaning Of Air Filter

    CLEANING OF AIR FILTER Keep the filter clean and oil saturated. Replace it if broken, cut or with damaged parts. IMPORTANT! Never use compressed air to clean the filtering element. - Clean around the filter cover - Release the clip; remove the cover and the foam element. - Wash the foam element in liquid detergent and water.

  • Page 16: Troubleshooting

    TROUBLESHOOTING PROBLEM LIKELY CAUSE SOLUTION No fuel Check and top up Stale fuel or build-ups in tank Empty fuel tank and refill with fresh fuel Spark plug disconnected Check that the spark plug cap fits well over the plug terminals Dirty electrodes or incorrect gap Check Hard starting...
  • Page 18 GASOLINE LAWN MOWER...
