Rasonic RW-A813ST User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

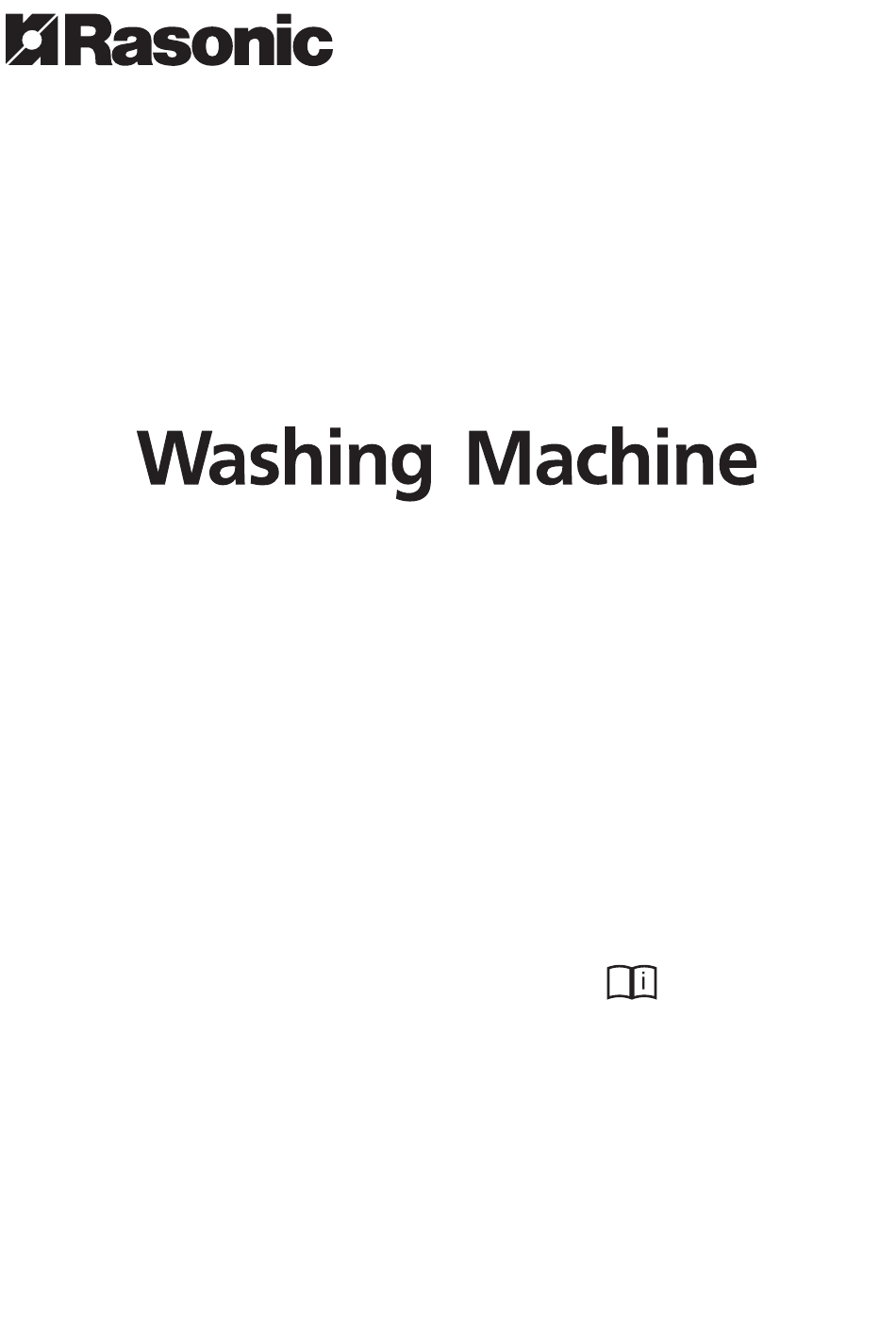

USER MANUAL
RW-A813ST
(For Household Use Only)
Read This Manual
Read all instructions and explanations for the
installation before use.
Follow the instructions carefully.
Keep the user manual for future reference.
The images in the user manual may not
match with the real object and reference only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RW-A813ST and is the answer not in the manual?

Questions and answers

Related Manuals for Rasonic RW-A813ST

Summary of Contents for Rasonic RW-A813ST

  • Page 1 USER MANUAL RW-A813ST (For Household Use Only) Read This Manual Read all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the user manual for future reference. The images in the user manual may not match with the real object and reference only.

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Washing Programmes Table ........Programmes ............Other function ............MAINTENANCE Cleaning and Care ..........Trouble Shooting ...........

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Safety Instructions Read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. ！...
  • Page 4 SAFETY INSTRUCTIONS RISK TO CHILDREN •The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 5: Installation

    SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see Maintenance - Cleaning the drain pump filter“) to avoid “...
  • Page 6 SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. ！ WARNING! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
  • Page 7 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE •Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing. •Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc.
  • Page 8 SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 9 SAFETY INSTRUCTIONS ENVIRONMENT PROTECTION From 31 December 2018, the disposal licensing control, import and export permit control and landfill disposal ban in respect of abandoned regulated electrical equipment (REE) have commenced.Any person who is engaged in the storage, treatment, reprocessing or recycling of abandoned REE must obtain a waste disposal licence;...

  • Page 10: Product Description

    INSTALLATION Product Description Power supply cord Door Detergent dispenser Drum Control panel Drain hose Drain pump filter Note! • The product image is for reference only, refer to real product asstandard. Accessories User manual Soundproof Sponge Transport Cold water supply hose hole plug...

  • Page 11: Installation

    INSTALLATION Installation Installation area ！ WARNING! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation...
  • Page 12 INSTALLATION Remove transport bolts ！ WARNING! • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts hole plug.
  • Page 13 INSTALLATION Drain Hose ！ WARNING! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough.
  • Page 14 INSTALLATION Soundproof Sponge Note! • Make sure to assemble the soundproof sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment. 1. Get the machine laid on the floor, using some soft material like foam or clothes between the machine and floor for a protection;...

  • Page 15: Operation

    OPERATION Quick Start CAUTION! • Before washing, make sure the washing machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. For this reason, start the Drum Clean without laundry and detergent.

  • Page 16: Before Each Washing

    OPERATION Before Each Washing • The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    OPERATION Detergent Dispenser Prewash Softener Main wash Pre Wash detergent Main Wash detergent Softener CAUTION! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. • Do not exceed the “MAX”level mark Pull out the dispenser when filling in detergent,additives or softener.
  • Page 18 OPERATION Detergent Recommendation Recommended washing Washing Wash cycles Type of laundry and textile detergent temp. Heavy-duty detergent with White laundry made from bleaching agents and Cotton,Mix boil-proof cotton or linen optical brighteners 40/60 Coloured laundry made Colour detergent without Cold/20/ from cotton or linen Cotton,Mix bleaching agent and optical...

  • Page 19: Control Panel

    OPERATION Control Panel Model:RW-A813ST 蒸氣 服 延遲開機 桶 Power Start/Pause Press the button to start or pause the Switch the product on/off. washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function.

  • Page 20: Washing Programmes Table

    OPERATION Washing Programmes Table Model:RW-A813ST Programme Load(kg) Default Time 2:40 Cotton Synthetic 2:20 1:20 Jeans 1:40 Sportswear 0:47 1:01 20℃ 2:01 Baby Care 1:18 Drum Clean 0:12 Spin Only 0:20 Rinse & Spin 1:07 Wool Steam 1:48 ECO 40-60 0:59 Rapid 45’...

  • Page 21: Programmes

    OPERATION Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Wash synthetic articles, for example: shirts, coats, blending. Synthetic While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
  • Page 22 OPERATION Option Default Default spin speed in rpm Temp.(℃) 1300 Cotton Synthetic Jeans Sportswear ℃ Baby Care Drum Clean Spin Only Rinse & Spin Wool Steam ECO 40-60 1000 Rapid 45’ Quick 15’ Cold Note! • The table shows which cycle offers which options for adjustment.

  • Page 23: Other Function

    OPERATION Other function Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Extra Rinse The laundry will undergo extra rinse once after you select it.
  • Page 24 OPERATION Child Lock To avoid misoperation by children. Spin Delay Choose the Programme Press [ ] and [ Start Spin Delay 3 sec. till buzzer beep. Note! • During the “Child Lock”function is activing, the buzzer will beep,when the buttons are pressed. •...

  • Page 25: Maintenance

    MAINTENANCE Cleaning and Care ！ WARNING! • Before your maintenance starts, unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately.
  • Page 26 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine.
  • Page 27 MAINTENANCE Cleaning the Drain Pump Filter ！ WARNING! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Allow the water to cool down. Risk of scalding! •...

  • Page 28: Trouble Shooting

    MAINTENANCE Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, if the solutions cannot fix the problem, contact Shun Hing Electric Service Centre Ltd. Description Reason Solution Washing machine...

  • Page 29: Technical Specifications

    • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Rated Voltage 220-240V~,50Hz MAX.Current Standard Water Pressure 0.1MPa 1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) 8.0kg 56kg RW-A813ST 400*610*875 1900W...

  • Page 30: Special Avowal

    SPECIAL AVOWAL The information above has been checked. Our company reserves the hermeneutic power to any printing errors or misunderstanding on the content. 2.If there are technical improvements on the appliance, the operation manual will be updated without any prior notice . The product appearance and colour are subject to the actual appliance.
  • Page 31 R W/ M/ 0 4 2 4 ＲＷ／Ｍ／０４２４...
