- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Everstar MPK-10CR-1 Owner's Manual Shop genuine replacement parts for Everstar MPK-10CR-1 Find Your Everstar Air Conditioner Parts - Select From 13 Models -------- Manual continues below --------...

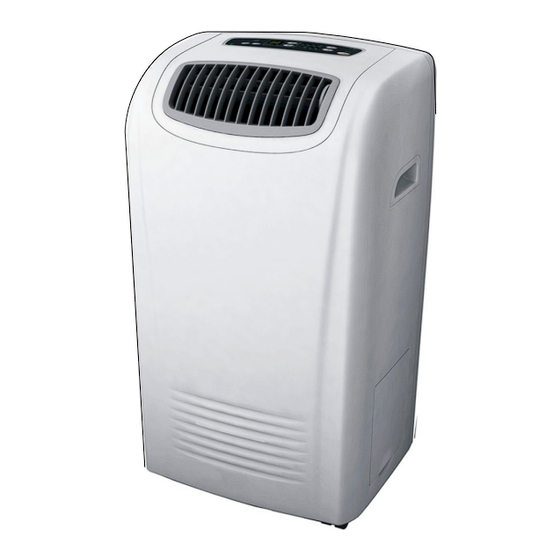

- Page 2 USE & CARE MANUAL PORTABLE AIR CONDITIONER Read and follow all safety rules and operating instructions before first use of this product.
-
Page 3: Table Of Contents
Table Of Contents Page Introduction..................Electrical Specifications..............Energy-Saving Tips................Window Installation................Operating Instructions............... Care and Maintenance..............Remote Controller Features............Air Conditioner Warranty..............Unit Parts Identification Operation Panel Adjustable Vertical Louver Vertical Louver Blades Carrying Handle (both side) Water Tank Caster... -
Page 4: Introduction
Introduction This Owners Manual will provide you with valuable information necessary for the proper care and main- tenance of your new appliance. If properly maintained, you appliance will give you many years of trouble free operation. Please take a few moments and read the instructions thoroughly and familiarize yourself with all of the operational aspects of this appliance. -
Page 5: Electrical Specifications
Electrical Specifications 6. To avoid the possibility of personal injury, always 1. All wiring must comply with local and national disconnect the power supply to the unit, before electrical codes and be installed by a qualified installing and/or servicing. electrician. If you have any questions regarding the following instructions, contact a qualified Table 1 electrician. -
Page 6: Energy-Saving Tips
Energy-Saving Tips 4) Start your air conditioner before the outdoor air This appliance is designed to be highly becomes hot and uncomfortable. This avoids an efficient in energy savings. Follow these initial period of discomfort while the unit is cooling recommendations for greater efficiency. -
Page 7: Operating Instructions
Window Kit Installation Horizontal Window Your window kit has been designed to fit most standard "vertical"and "horizontal" window applications. However, it may be necessary for you to improvise/modify some aspects of the Window Slider Kit installation procedures for certain types of Minimum: 26 / "... - Page 8 Key Pad Functions Fig.6 Power On/Off. Selects the appropriate operating mode. Cool-Dry (Dehumidify)-Fan MODE Indicator Lights: Illuminates under the different mode settings. Fig.7. Fig.6 COOL Mode: Green light DRY(Dehumidifier)Mode: Green light Green light while cooling FAN Mode: Green light Green light while dehumidifying Green light while fan only Green Light : Remains on while compressor is Fig.7...
- Page 9 Air Conditioner Operating Instructions 1) Install the Flexible Exhaust Hose Fig.9 and the Adjustable Window / Slider Kit as depicted in Fig. 2 & 2a on Page 5. 2) Press the (on/off ) key pad to switch on the unit. 3) Press the MODE key until the COOL indicator Fig.
- Page 10 Air Conditioner Operating Instructions (continuous drain) Remove the drain plug 7) This unit also has provisions for a continuous "drain" option (for basement applications having a floor drain). To connect the continuous drain option, remove the drain plug from the back of the unit, then install the drain hose.
- Page 11 DRY (Dehumidifier) Operating Instructions 1 ) Press the (on/off) key pad to switch on the unit. 2) Press the MODE key until the DRY indicator light comes on (Fig.15). Each depression of the Fig. 15 MODE key will advance to a different mode Dry Indicator setting (Cool-Dry -Fan...
- Page 12 Fan Operating Instructions 1) Press the (on/off ) keypad to switch on the unit. 2) Press the MODE key until the FAN indicator Fig. 17 light comes on (Fig.17). Each depression of Fan Indicator the MODE key will advance to a different mode setting (Cool-Dry -Fan 3) The green indicator light will come on indicating...
- Page 13 Auto-Timer Instructions NOTE: The AUTO-TIMER feature offers a unique selection of multiple choice, fully automatic on/off (start / stop) programs between 0-24 hrs under any one mode of your portable unit. The programs are as follows: a) Auto-off: Please be aware that in order for the (Auto - Off) function to work properly, the unit must be operating (On Position).
- Page 14 Setting the AUTO-ON TIMER(cont'd) The unit will stop automatically when the specified 6) Press the TIMER-ON key pad to initiate the AUTO-OFF time is achieved . AUTO-ON time sequence Fig. 21. The display To cancel or override the AUTO-TIMER program, window will indicate the time.
- Page 15 Setting the AUTO-ON & AUTO-OFF TIMER IMPORTANT: When the unit is operational, set the Before setting the AUTO-ON & AUTO-OFF AUTO-OFF TIMER first, then set the AUTO-ON Timer, you must also select the appropriate TIMER. The AUTO-OFF time should be prior to the operating MODE.
-
Page 16: Care And Maintenance
Care and Maintenance CAUTION Before cleaning or servicing this unit, it is recommended that the unit be disconnected from any electrical supply outlet 1) Do Not use gasoline, benzene, thinner or any other chemicals to clean this unit, as these substances may cause damage to the finish and deformation of plastic parts. -
Page 17: Remote Controller Features
FAN SPEED Button: This button is used for setting Remote Controller Features Fan Speed in the sequence that goes from AUTO, LOW, MED to HIGH, then back to Auto. If fan The hand held remote units allows you to control speed is set on AUTO, there will be no signal all operational aspects of your air conditioner from beside LOW, MED and HIGH. - Page 18 LCD Display Window Remote Control Operating TRANSMISSION Indicator: This indicator AUTOMATIC OPERATION lights when remote controller transmits signals When the Air Conditioner is ready for use, switch on to indoor unit. the power and the POWER indicator lamp on the MODE Display: Shows the current operation display panel of the unit starts flashing.
- Page 19 2.3 After setting the TIMER OFF, there will be a Remote Control Operating one-half second delay before the remote controller transmits the signal to the air conditioner. Then, DRY OPERATION after approximately another 2 seconds, the signal 1. Push the MODE button to select DRY. "h"...
-
Page 20: Air Conditioner Warranty
Air conditioner warranty Your product is protected by this warranty: Your appliance is warranted by Midea. Any obligations for services and parts under this warranty must be performed by Midea Consumer Services or an authorized Midea servicer. WARRANTY Midea, THROUGH ITS THE CONSUMER WILL BE PERIOD AUTHORIZED SERVICERS, WILL:... - Page 21 CS000-U...
