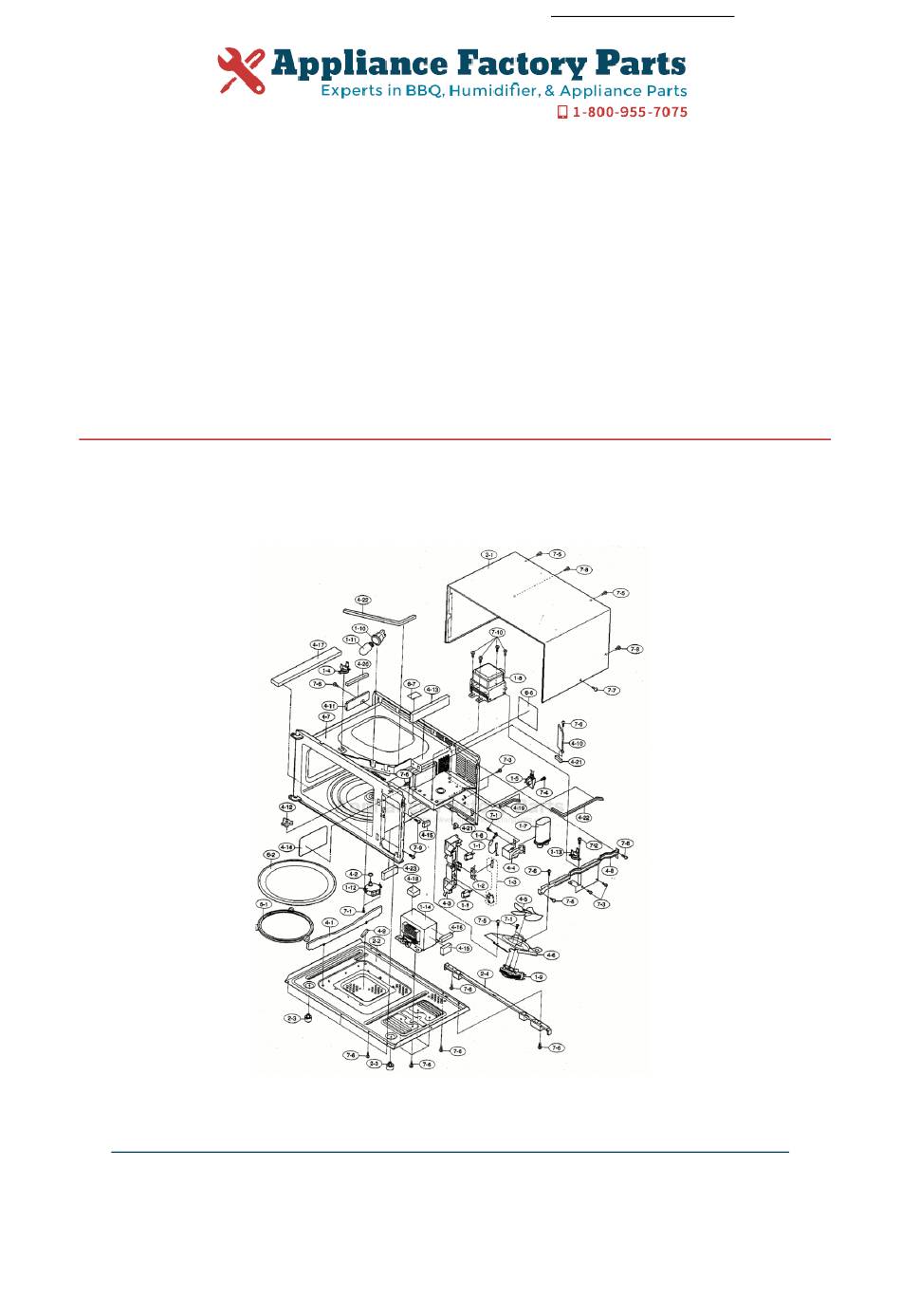

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Sharp R-315EW Owner's Manual Shop genuine replacement parts for Sharp R-315EW Find Your Sharp Microwave Parts - Select From 1193 Models -------- Manual continues below --------...

  • Page 2: Table Of Contents

    Voltage Power Transformer, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness etc..) This is a supplemental Service Manual for Model R-315EW. This model is quite similar to base model R-310EW. Use this supplemental manual together with the Base Model Service Manual (Refer No.

  • Page 3: Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive Microwave Energy

    Before servicing an operative unit, perform a microwave emission check as per the Microwave Measurement Procedure outlined in this service manual. If microwave emissions level is in excess of the specified limit, contact SHARP ELECTRONICS CORPORATION immediately @1-800-237-4277. If the unit operates with the door open, service person should 1) tell the user not to operate the oven and 2) contact SHARP ELECTRONICS CORPORATION and The Food and Drug Administration's Center for Devices and Radiological Health immediately.

  • Page 4: Warning To Service Personnel

    R-315EW WARNING TO SERVICE PERSONNEL Microwave ovens contain circuitry capable of pro- ducing very high voltage and current, contact with following parts may result in a severe, possibly fatal, electrical shock. (Example) High Voltage Capacitor, High Voltage Power Trans- former, Magnetron, High Voltage Rectifier Assem- bly, High Voltage Harness etc..

  • Page 5: Microwave Measurement Procedure

    R-315EW MICROWAVE MEASUREMENT PROCEDURE A. Requirements: 1) Microwave leakage limit (Power density limit): The power density of microwave radiation emitted by a microwave oven should not exceed 1mW/cm at any point 5cm or more from the external surface of the oven, measured prior to acquisition...
  • Page 6 MICROWAVE OVEN R-315EW FOREWORD This Manual has been prepared to provide Sharp Electronics Corp. Service Personnel with Operation and Service Information for the SHARP MICROWAVE OVEN, R-315EW. The model R-315EW is quite similar to base model R-310EW (Refer No. is S2103R310EPW/).

  • Page 7: Product Description

    R-315EW PRODUCT DESCRIPTION SPECIFICATIONS ITEM DESCRIPTION Power Requirements 120 Volts / 14.2 Amperes 60 Hertz Single phase, 3 wire grounded Power Output 1200 watts (IEC TEST PROCEDURE) Operating frequency of 2450MHz Case Dimensions Width 20-1/2" Height 11-7/8" Depth 17-1/8" Cooking Cavity Dimensions Width 14-3/4"...
  • Page 8 R-315EW TOUCH CONTROL PANEL See NOTE. See NOTE. See NOTE. NOTE: The directed features are disabled after three minutes when the oven is not in use. These features are automati- cally enabled when the door is opened and closed or the STOP/ CLEAR pad is pressed.
  • Page 9 R-315EW...
  • Page 10 R-315EW CN-C CN-A 9PIN LEAD WIRE HARNESS S1NB10 – OVEN LAMP TURNTABLE BUZZER MOTOR FAN MOTOR OVEN LAMP TURNTABLE MOTOR FAN MOTOR MICRO MICRO SH-A DOOR DOOR SH-B SENSING SENSING SWITCH SWITCH...
  • Page 11 R-315EW...

  • Page 12: Power Unit Circuit

    R-315EW PARTS LIST ∆ Note: The parts marked “ ” may cause undue microwave exposure. The parts marked “*” are used in voltage more than 250V. REF. NO. PART NO. DESCRIPTION Q'TY CODE ELECTRIC PARTS 1- 1 QSW-MA147WRZZ 2nd interlock switch/door sensing switch...
  • Page 13 To have your order filled promptly and correctly, please furnish the following information. 1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION Order Parts from the authorized SHARP parts Distributor for your area. Defective parts requiring return should be returned as indicated in the Service Policy.
  • Page 14 R-315EW OVEN AND CABINET PARTS 4-22 7-10 1-10 1-11 4-17 4-20 4-13 4-11 4-10 4-21 4-19 4-22 4-12 4-21 4-15 1-13 4-14 4-23 4-18 1-12 1-14 4-16 4-15...
  • Page 15 R-315EW CONTROL PANEL PARTS DOOR PARTS 5-11 3-3-1 5-10 5-10 MISCELLANEOUS (CAPACITOR) Actual wire harness may be different from illustration.

  • Page 16: Packing And Accessories

    R-315EW PACKING AND ACCESSORIES TOP PAD ASSEMBLY FPADBA458WRKZ DOOR PROTECTION SHEET CABINET COVER SPADPA204WRE0 SPAKHA011WRE0 PLASTIC BAG SSAKHA034WRE0 FOAM SHEET SPAKHA012WREZ (only for R-310EK) 6- 8 INSTRUCTION BOOK & PRINTING MATTER BOTTOM PAD ASSEMBLY 6- 2 TURNTABLE TRAY FPADBA417WRKZ 6- 1 TURNTABLE SUPPORT...
  • Page 17 No part of this publication may be reproduced, stored in retrieval systems, or transmitted in any form or by any means, electronic, mechanical, pho- tocopying, recording, or otherwise, without prior written permission of the publisher. 2001 SHARP CORP. (6S1.700E) Printed in U.S.A...
