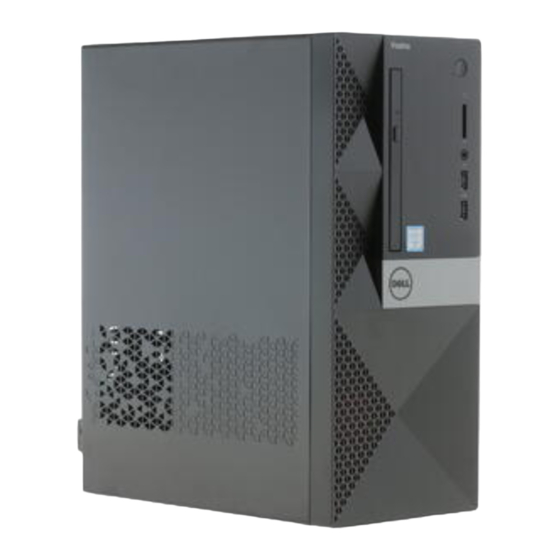

Dell Vostro 3650
Owner's Manual
Regulatory Model: D19M
Regulatory Type: D19M002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vostro 3650 and is the answer not in the manual?

Questions and answers

Related Manuals for Dell Vostro 3650

Summary of Contents for Dell Vostro 3650

  • Page 1 Dell Vostro 3650 Owner's Manual Regulatory Model: D19M Regulatory Type: D19M002...
  • Page 2 © 2016 Dell Inc. or its subsidiaries. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    Contents 1 Working on your computer....................5 ................................5 Safety instructions ..........................5 Before working inside your computer ..............................6 Turning off your computer ........................6 Turning off your computer — Windows 8 ........................6 Turning off your computer — Windows 7 ............................6 After working inside your computer 2 Removing and installing components................7...
  • Page 4 ............................21 Diagnostic power LED codes ............................... 22 Diagnostic error messages ..............................25 System error messages 4 System Setup Options....................26 ..............................28 System Setup overview ..............................28 Accessing System Setup 5 Specifications....................... 30 6 Contacting Dell......................33...

  • Page 5: Working On Your Computer

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 6: Turning Off Your Computer

    CAUTION: To connect a network cable, first plug the cable into the network device and then plug it into the computer. Connect any telephone or network cables to your computer. Connect your computer and all attached devices to their electrical outlets. Turn on your computer. If required, verify that the computer works correctly by running Dell Diagnostics.

  • Page 7: Removing And Installing Components

    Removing and installing components This section provides detailed information on how to remove or install the components from your computer. Recommended tools The procedures in this document require the following tools: • Small flat blade screwdriver • Phillips # 1 screwdriver •...

  • Page 8: Removing The Bezel

    Removing the bezel Follow the procedure in Before Working Inside Your Computer. Remove the cover. To remove the front bezel: a. Lift the tabs to release the front bezel from the computer. b. Remove the front bezel from the computer. Installing the bezel Insert the tabs on the bezel into the slots on the computer.

  • Page 9: Removing The Hard Drive Assembly

    CAUTION: The front bezel door opens only to a limited extent. See the printed label for the maximum permissible level. Removing the hard drive assembly Follow the procedure in Before Working Inside Your Computer. Remove the: • cover • bezel To remove the hard drive assembly: a.

  • Page 10: Installing The Hard Drive Assembly

    Installing the hard drive assembly Replace the hard drive into the hard drive bracket. Install the screws that secure the hard drive bracket. Insert the hard drive assembly into the slot on the computer until it clicks into place. Close the front bezel door. Install the screw that secures the hard drive assembly to the front bezel door.

  • Page 11: Installing The Optical Drive Assembly

    To remove the optical drive bracket: a. Remove the screws that secure the optical drive bracket to the optical drive. b. Remove the optical drive bracket from the optical drive. Installing the optical drive assembly Place the optical drive bracket on the optical drive. Tighten the screws to secure the optical drive bracket to the optical drive.

  • Page 12: Installing The Wlan Card

    • bezel Open the front bezel door. To remove the WLAN card: a. Remove the screw to release the plastic tab that secures the WLAN card to the computer [1]. b. Remove the plastic tab to access the WLAN cables [2]. c.

  • Page 13: Installing The Memory Module

    Installing the memory module Align the notch on the memory module with the tab on the memory module connector. Insert the memory module into the memory module socket. Press the memory module until the memory module retention tabs click into place. Close the front bezel door.

  • Page 14: Installing The Pcie Expansion Card

    Installing the PCIe expansion card Pull the release latch to open it. Insert the PCIe expansion card to the connector on the system board. Secure the PCIe expansion card by pushing the card retention latch until it clicks into place. Close the release latch.

  • Page 15: Removing The Power Switch

    • bezel • cover Follow the procedure in After Working Inside Your Computer. Removing the power switch Follow the procedure in Before Working Inside Your Computer. Remove the: • cover • bezel Open the front bezel door. To remove the power switch: a.

  • Page 16: Installing The Coin Cell Battery

    a. Press the release latch until the coin cell battery pops out. b. Remove the coin cell battery from the connector on the system board. Installing the coin cell battery Hold the coin cell battery with the "+" sign facing up and slide it under the securing tabs at the positive side of the connector. Press the battery into the connector until it locks into place.

  • Page 17: Installing The Heat Sink Assembly

    Installing the heat sink assembly Place the heat sink assembly on the processor. Tighten the captive screws to secure the heat sink assembly to the system board. Connect the heat sink assembly cable to the connector on the system board. Close the front bezel door.

  • Page 18: Removing The System Fan

    bezel cover Follow the procedure in After Working Inside Your Computer. Removing the system fan Follow the procedure in Before Working Inside Your Computer. Remove the: • cover • bezel Open the front bezel door. To remove the system fan: a.

  • Page 19: Installing The System Board

    • heat sink assembly • processor • PCIe expansion card • memory module Disconnect all the cables from the connectors on the system board. To remove the system board: a. Remove the screws that secure the system board to the computer [1]. b.

  • Page 20: System Board Layout

    System Board Layout SATA power connector SATA1 Light bar header SATA0 SATA3 SATA2 SATA power connector PSU connector Coin cell battery Clear CMS jumper ME disable jumper Password clear jumper PCIex16 PCIex1 PCIex1 System fan connector CPU socket CPU fan connector PSU connector Memory module connectors Power switch connector...

  • Page 21: Troubleshooting Your Computer

    Troubleshooting your computer You can troubleshoot your computer using indicators like diagnostic lights, beep codes, and error messages during the operation of the computer. Diagnostic power LED codes Table 1. Diagnostic power LED codes Power LED light status Possible cause Troubleshooting steps •...

  • Page 22: Diagnostic Error Messages

    DISK C: FAILED INITIALIZATION The hard drive failed initialization. Run the hard drive tests in Dell Diagnostics. DRIVE NOT READY The operation requires a hard drive in the bay before it can continue. Install a hard drive in the hard drive bay.
  • Page 23 KEYBOARD STUCK KEY FAILURE For external keyboards or keypads, check the cable connection. Restart the computer, and avoid touching the keyboard or keys during the boot routine. Run the Stuck Key test in Dell Diagnostics. LICENSED CONTENT IS NOT ACCESSIBLE IN...
  • Page 24 The operating system cannot find a specific track on the hard drive. SHUTDOWN FAILURE A chip on the system board may be malfunctioning. Run the System Set tests in Dell Diagnostics. If the message reappears, Contact Dell. TIME-OF-DAY CLOCK LOST POWER System configuration settings are corrupted.

  • Page 25: System Error Messages

    UNEXPECTED INTERRUPT IN PROTECTED MODE The keyboard controller may be malfunctioning, or a memory module may be loose. Run the System Memory tests and the Keyboard Controller test in Dell Diagnostics or Contact Dell. X:\ IS NOT ACCESSIBLE. THE DEVICE IS NOT Insert a disk into the drive and try again.

  • Page 26: System Setup Options

    System Setup Options Table 4. — Main System Time Displays the system time. Allows you to reset the time on the computer’s internal clock. System Date Displays the system date. Allows you to reset the date on the computer’s internal calendar.
  • Page 27 Default: disabled USB Emulation Allows you to enable or disable the USB emulation. Default: Enabled SW Guard Extensions (SGX) Allows you to enable or disable the SW guard extensions (SGX). Default: Disabled USB Configuration Allows you to enable or disable the USB ports. Front USB Ports: Enabled Rear USB Ports: Enabled Power Options...

  • Page 28: System Setup Overview

    Accessing System Setup Turn on (or restart) your computer. After the white Dell logo appears, press F2 immediately. The System Setup page is displayed. NOTE: If you wait too long and the operating system logo appears, wait until you see the desktop. Then, shut down...
  • Page 29 NOTE: After the Dell logo appears, you can also press F12 and then select BIOS setup.

  • Page 30: Specifications

    Specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your computer, go to Help and Support in your Windows operating system and select the option to view information about your computer. Table 9.
  • Page 31 Bluetooth Table 14. System Information Chipset Intel H110 Table 15. Expansion Bus Bus speed: PCI Express PCIe 2.0 at speeds upto 5.0 GT/s • SATA 3 Gbps for optical drive SATA • SATA 6 Gbps for hard drive • 5 Gbps for USB 3.0 •...
  • Page 32 Table 19. Control Lights And Diagnostic Lights Power button light white light — solid white light indicates power-on state ; blinking white light indicates sleep/stand-by state of the computer. amber light — solid amber light indicates boot failure - System Power Error;...

  • Page 33: Contacting Dell

    Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Go to Dell.com/support.
