Altimium SCAM62TS User Manual

6x2 hdmi 2.0 seamless matrix switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
SCAM62TS
6x2 HDMI 2.0 Seamless Matrix Switcher
All Rights Reserved
Version: SCAM62TS_2019V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCAM62TS and is the answer not in the manual?

Questions and answers

Related Manuals for Altimium SCAM62TS

Summary of Contents for Altimium SCAM62TS

  • Page 1 User Manual SCAM62TS 6x2 HDMI 2.0 Seamless Matrix Switcher All Rights Reserved Version: SCAM62TS_2019V1.2...
  • Page 2 6x2 HDMI 2.0 Seamless Matrix Switcher Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
  • Page 3 6x2 HDMI 2.0 Seamless Matrix Switcher SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...

  • Page 4: Table Of Contents

    1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ...................... 2 2. Specification ....................... 3 2.1 SCAM62TS Matrix Switcher ................3 2.2 TPUH610AR HDBaseT Receiver ..............5 3. Panel Description ......................6 3.1 Matrix Switcher Front Panel ................6 3.2 Matrix Switcher Rear Panel ................
  • Page 5 6x2 HDMI 2.0 Seamless Matrix Switcher 7.8 Network Setting ....................26 7.9 Password Setting ..................... 27 7.10 GUI Upgrade ....................28 8. RS232 Control ......................29 8.1 RS232 Control Software .................. 29 8.2 RS232 Communication Command ..............31 8.2.1 Device Control ..................31 8.2.2 Source Switching ...................

  • Page 6: Product Introduction

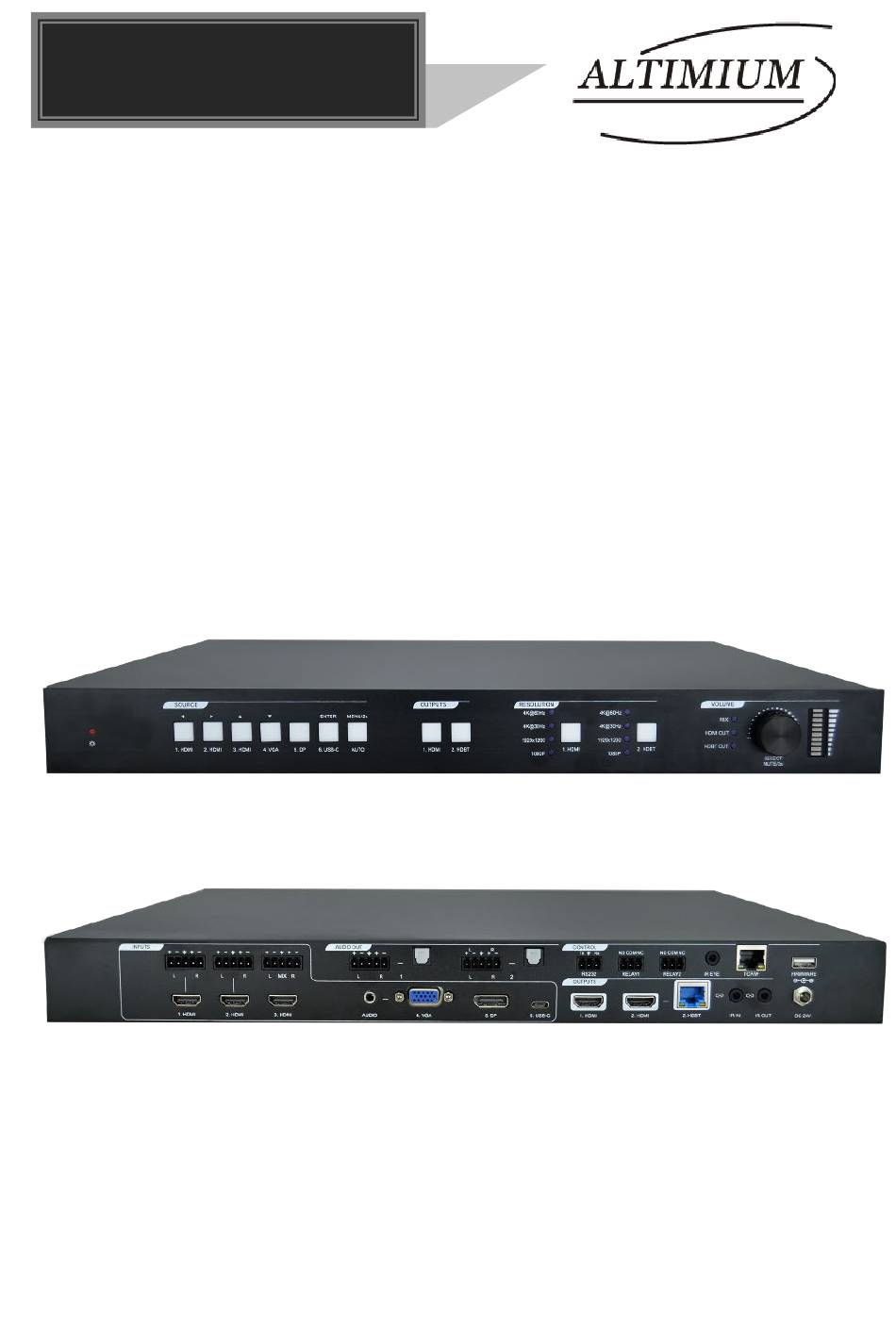

    6x2 HDMI 2.0 Seamless Matrix Switcher 1. Product Introduction Thanks for choosing the SCAM62TS 6x2 multi-format seamless presentation matrix switcher with one TPUH610AR receiver! The matrix switcher simplifies meeting room and presentation space system integration by providing three HDMI inputs, one VGA input, one DP input, one USB-C input, one HDBaseT output and one HDMI output.

  • Page 7: Package List

     Controllable via RS232 local and pass-through, IR local and pass-through, TCP/IP,  relay, CEC and on OSD. 1.2 Package List 1x SCAM62TS 6x2 HDMI 2.0 Seamless Matrix Switcher  2x Mounting Ears with 6 Screws  4x Plastic Cushions ...

  • Page 8: Specification

    6x2 HDMI 2.0 Seamless Matrix Switcher 2. Specification 2.1 SCAM62TS Matrix Switcher Video Input Video Input (3) HDMI, (1) VGA, (1) Display Port, (1) USB-C (3) Type-A female HDMI, (1) 15-pin female VGA, (1) Type-A female Video Input Connector DisplayPort, (1) Type-C USB 3.0...
  • Page 9 6x2 HDMI 2.0 Seamless Matrix Switcher > 80dB, 20Hz - 20KHz bandwidth Crosstalk Isolation > 70dB, 10KHz sine at 0dBFS level (or max level before clipping) L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) Frequency Response <...

  • Page 10: Tpuh610Ar Hdbaset Receiver

    6x2 HDMI 2.0 Seamless Matrix Switcher 2.2 TPUH610AR HDBaseT Receiver Receiver (RX) Input (1) HDBT IN Input Connector (1) RJ45 Output (1) HDMI Output Connector (1) Type-A female HDMI Control (1) IR IN, (1) IR OUT, (1) RS232 Control Connector (2) 3.5mm jacks, (1) 3-pin terminal block Video Resolution Up to 4Kx2K@60Hz 4:4:4 8bit...

  • Page 11: Panel Description

    6x2 HDMI 2.0 Seamless Matrix Switcher 3. Panel Description 3.1 Matrix Switcher Front Panel SOURCE OUTPUTS RESOLUTION VOLUME 4K@60Hz 4K@60Hz ENTER MENU/2s 4K@30Hz 4K@30Hz HDMI OUT 1920x1200 1920x1200 HDBT OUT 1. HDMI 2. HDMI 3. HDMI 4. VGA 5. DP 6.

  • Page 12: Matrix Switcher Rear Panel

    6x2 HDMI 2.0 Seamless Matrix Switcher 3.2 Matrix Switcher Rear Panel AUDIO OUT CONTROL INPUTS NO COM NC NO COM NC RS232 RELAY1 RELAY2 IR EYE TCP/IP FIRMWARE OUTPUTS 1. HDMI 2. HDMI 3. HDMI AUDIO 4. VGA 5. DP 6.

  • Page 13: Receiver Front And Rear Panel

    6x2 HDMI 2.0 Seamless Matrix Switcher ④ CONTROL: RS232: 3-pin terminal block to connect the control device (e.g. PC) to control  the switcher by sending RS232 commands. It also supports RS232 pass-through control. RELAY 1-2: Two 3-pin terminal blocks to connect the relay devices (e.g. ...

  • Page 14: System Connection

    6x2 HDMI 2.0 Seamless Matrix Switcher 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation.  System should be installed in a clean environment with proper temperature and  humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ...

  • Page 15: Button Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 5. Button Control 5.1 Manual Switching When the switcher is in manual switching mode, the AUTO button LED goes out. Please follow the below steps to switch input source to output channel. 1) Press any one of six input buttons to select input source, and the corresponding button LED turns blue.

  • Page 16: Resolution Selection

    6x2 HDMI 2.0 Seamless Matrix Switcher 5.3 Resolution Selection Press the 1.HDMI or 2.HDBT button on RESOLUTION area repeatedly to cycle through the four video resolutions. A series of four LEDs, one of which illuminates blue to indicate which resolution is selected. 5.4 Sound Volume Control Press volume knob to choose MIX, HDMI OUT or HDBT OUT audio needs to be adjusted, the corresponding LED will turn blue and keep on.

  • Page 17: Ir Remote Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 6. IR Remote Control Connect IR receiver to the IR EYE port, the switcher can be controlled by the following IR remote. ① Select input source ② Press AUTO to enable auto switching mode, and then select output channel.

  • Page 18: Gui Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 7. GUI Control The switcher can be controlled via TCP/IP. The default IP settings are: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 Type 192.168.0.178 in the internet browser, it will enter the below log-in webpage: Username: admin Password: admin Type the user name and password, and then click Login to enter the section for video...

  • Page 19: Video Switching

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.1 Video Switching HDMI OUTPUT: Switch the selected input source to HDMI output. Click AUTO to  enable/disable auto switching mode. HDBT OUTPUT: Switch the selected input source to HDBT output. Click AUTO to ...

  • Page 20: Resolution Selection

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.2 Resolution Selection HDMI OUTPUT: Select the HDMI output video resolution.  HDBT OUTPUT: Select the HDBT output video resolution. ...

  • Page 21: Audio Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.3 Audio Control 1.HDMI Embedded: Select the external balanced audio (5-pin) to be embed in  1.HDMI video input. 2.HDMI Embedded: Select the external balanced audio (5-pin) to be embed in  2.HDMI video input. MIX: MIX input audio volume control.

  • Page 22: Configuration

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.4 Configuration 7.4.1 PoC Setting Turn on or off PoC for HDBT output port. ...

  • Page 23: Edid Management

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.4.2 EDID Management Select the compatible built-in EDID for the selected input source.  Upload user-define EDID by the below steps:  Step 1: Prepare the EDID file (.bin) on the control PC. Step 2: Select the user-defined. Step 3: Click the black box , and then select the EDID file (.bin) according the tooltip.

  • Page 24: Relay Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.4.3 Relay Control Set Momentary or Latching relay control mode for Relay 1 and Relay 2.  After setting the auto stop time, click Momentary, the projector screen starts to be  rolled up or dropped down until the auto stop time is up. Click Latching, the projector screen starts to be rolled up or dropped down, and ...

  • Page 25: Cec Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.5 CEC Control If the input source devices and display devices support CEC, they can be controlled by the below control buttons to replace IR remote. 1) Source Control Select the input source which needs to be controlled, and then press function ...
  • Page 26 6x2 HDMI 2.0 Seamless Matrix Switcher 2) Display Control Select the output display which needs to be controlled, and then press function  buttons.
  • Page 27 6x2 HDMI 2.0 Seamless Matrix Switcher 3) User-defined The switcher also provides user-defined CEC functions, the CEC command can be edited and saved in the Trigger box. Select the input source, and then type CEC command in the Trigger 1 or Trigger 2 ...

  • Page 28: Tags Setting

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.6 Tags Setting INPUTS: Modify the label of input sources.  Preset: Modify the label of presets. ...

  • Page 29: Rs232 Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.7 RS232 Control 1) Port Mode HDBT Transmitter Pass Through: Establish RS232 pass-through communication  between the switcher and HDBaseT receiver (e.g.TPUH610AR). The RS232 port of the switcher can be used to transfer commands to control the third-party device which is connected to the HDBaseT receiver.
  • Page 30 6x2 HDMI 2.0 Seamless Matrix Switcher 2) Command Select Local or HDBT Out control mode.   Local: Send RS232 commands to control the local third-party which is connected to the RS232 port of the switcher.  HDBT Out: Send RS232 commands to control the far-end third-party (e.g. projector) which is connected to the RS232 port of HDBaseT receiver.

  • Page 31: Network Setting

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.8 Network Setting Static IP or Dynamic Host Configuration Protocol (DHCP).  Modify the static IP Address, Subnet Mask, and Gateway. ...

  • Page 32: Password Setting

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.9 Password Setting Modify the login password.  Lock or unlock the front panel buttons. ...

  • Page 33: Gui Upgrade

    6x2 HDMI 2.0 Seamless Matrix Switcher 7.10 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the desired update file and press Apply, it will start upgrading then.

  • Page 34: Rs232 Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 8. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending RS232 commands. 8.1 RS232 Control Software Installation: Copy the control software file to the control PC. ...
  • Page 35 6x2 HDMI 2.0 Seamless Matrix Switcher The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in command sending area.

  • Page 36: Rs232 Communication Command

    Power off system. Turn off HDBaseT PWOFF PWOFF. power supply. System standby. Press any button to STANDBY STANDBY. awake. Report system model. SCAM62TS /*Type; Report firmware version. V1.0.0 /^Version; Lock front panel buttons. System Locked /%Lock; Unlock front panel buttons.

  • Page 37: Source Switching

    6x2 HDMI 2.0 Seamless Matrix Switcher 8.2.2 Source Switching Command Description Feedback Example Demo Mode: AV:01->01 AV:01->02 AV:02->01 AV:02->02 AV:03->01 Switch to demo testing mode, switch AV AV:03->02 Demo. 1>1, 1>2 and so on. AV:04->01 AV:04->02 AV:05->01 AV:05->02 AV:06->01 AV:06->02 Normal Mod Cancel the current operation and return to Undo Ok!

  • Page 38: Preset Setting

    6x2 HDMI 2.0 Seamless Matrix Switcher Command Description Feedback Example Enable the auto switching mode for the output [X]. HDMI Automation ON Output Port AutomationON[X]. HDMI HDBT HDBT Automation ON Disable the auto switching mode for the HDMI Automation OFF output [X].

  • Page 39: Output Resolution Setting

    6x2 HDMI 2.0 Seamless Matrix Switcher Decrease the HDBT output audio Volume of HDBT: 29. HDBTVolume-. volume. Mute the HDBT output audio. HDBT Mute. HDBTMute. Unmute the HDBT output audio. HDBT Unmute. HDBTUnmute. Set the MIX input audio volume to xx. Volume of MIX: 30.

  • Page 40: Edid Management

    6x2 HDMI 2.0 Seamless Matrix Switcher 8.2.6 EDID Management Command Description Feedback Example The input [x] invoke built-in EDID [y]. x=1~3, 5. EDID EDID/4/1 EDID/[x]/[y]. 1080P@60Hz 4K@30Hz 4:4:4 4K@60Hz 4:4:4 Upgrade the EDID data of the input port [x]. x=1~3, 5. When the command applied, system prompts to upload the EDID file (.bin).

  • Page 41: Relay Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 8.2.7 Relay Control Command Description Feedback Example Turn on relay [X], X=1~2. Relay 1 ON RelayON[X]. Turn off relay [X], X=1~2. Relay 1 OFF RelayOFF[X]. Set the auto stop time of relay [X] to Y Relay 1 Turn On, delay 0.0 RelayAutomationCtl:[X], seconds.

  • Page 42: Switcher Baud Rate Setting

    6x2 HDMI 2.0 Seamless Matrix Switcher SetVGAPicMode: PICTURE SOFT MODE SetVGAPicMode: PICTURE Set the image mode to X. X=0~3. NORMAL MODE SetVGAPicMode:X. (dynamic/standard/mild/user) SetVGAPicMode: PICTURE VIVID MODE SetVGAPicMode: PICTURE USER MODE 8.2.9 Switcher Baud Rate Setting Command Description Feedback Example Set the RS232 baud rate of switcher to Set Local RS232 baudrate is Baudrate 2400.
  • Page 43 6x2 HDMI 2.0 Seamless Matrix Switcher Step 2: According to the below command format to send specific command to control input source or display device. CEC[I/O][port][command]. The “[I]” represents the input port. The “[O]” represents the output port.  The “[port]” represents the port number. The input ports are 01~03, and the output ...
  • Page 44 6x2 HDMI 2.0 Seamless Matrix Switcher [CEC]: blue ray play. CECI0145. Stop. CECI[port]45. [CEC]: blue ray stop. CECI0146. Pause. CECI[port]46. [CEC]: blue ray pause. CECI0148. Rewind CECI[port]48. [CEC]: blue ray backward. CECI0149. Fast forward. CECI[port]49. [CEC]: blue ray forward. CECI014B. Forward.

  • Page 45: Third-Party Device Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 8.2.11 Third-party Device Control The switcher supports RS232 pass-through control, the third-party device can be controlled by RS232 command, and the command format as shown below: Command Function Command Example RS232 mode selection: Y=0, Local Control: The RS232 ...

  • Page 46: Trigger Feedback Command Setting

    6x2 HDMI 2.0 Seamless Matrix Switcher /#3/3:01 02 03 xxxxxx: HEX characters.  X: Represents the RS232 port.  RS232 Port The RS232 port on the matrix switcher. The RS232 port on the far-end HDBaseT receiver. B: Represents the baud rate of ...
  • Page 47 6x2 HDMI 2.0 Seamless Matrix Switcher B: Represents the baud rate of  third-party device. Baud Rate 2400 4800 9600 19200 38400 57600 115200 Report the feedback command which is sent by the RS232 port of the Port 1: D_ON when PWON %9951.

  • Page 48: Osd Control

    6x2 HDMI 2.0 Seamless Matrix Switcher 9. OSD Control The SCAM62TS provides a powerful OSD operation menu which contains 3 parts: optional settings, image settings, system settings etc. There are two ways to enter OSD menu: 1) Press and hold the MENU/2s button at least two seconds on the front panel.
  • Page 49 6x2 HDMI 2.0 Seamless Matrix Switcher are available. SOUND MENU OPTION MENU...
  • Page 50 6x2 HDMI 2.0 Seamless Matrix Switcher SYSTEM MENU INFO MENU...

  • Page 51: Firmware Upgrade

    6x2 HDMI 2.0 Seamless Matrix Switcher 10. Firmware Upgrade Please follow the steps as below to upgrade firmware by the FIRMWARE port on the rear panel: 1) Prepare the latest upgrade file (.bin) and rename it as “USERAPP.bin” on PC. 2) Power off the switcher, and connect the FIRMWARE port of switcher to the PC with USB cable.

  • Page 52: Panel Drawing

    FIRMWARE OUTPUTS 1. HDMI 2. HDMI 3. HDMI AUDIO 4. VGA 5. DP 6. USB-C 1. HDMI 2. HDMI 2. HDBT IR IN IR OUT DC 24V SCAM62TS Matrix Switcher 115.0 mm UPDATE B UPDATE A CTRL TPUH610AR HDBaseT Receiver...

  • Page 53: Troubleshooting And Maintenance

    6x2 HDMI 2.0 Seamless Matrix Switcher 12. Troubleshooting and Maintenance Problems Potential Causes Solutions Bad quality of the Try another high quality cable. Output image with white connecting cable noise. Make sure the connection is Fail or loose connection good Check with oscilloscope or No signal at the input / multimeter if there is any signal...

  • Page 54: Customer Service

    6x2 HDMI 2.0 Seamless Matrix Switcher 13. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years.
  • Page 55 6x2 HDMI 2.0 Seamless Matrix Switcher ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
