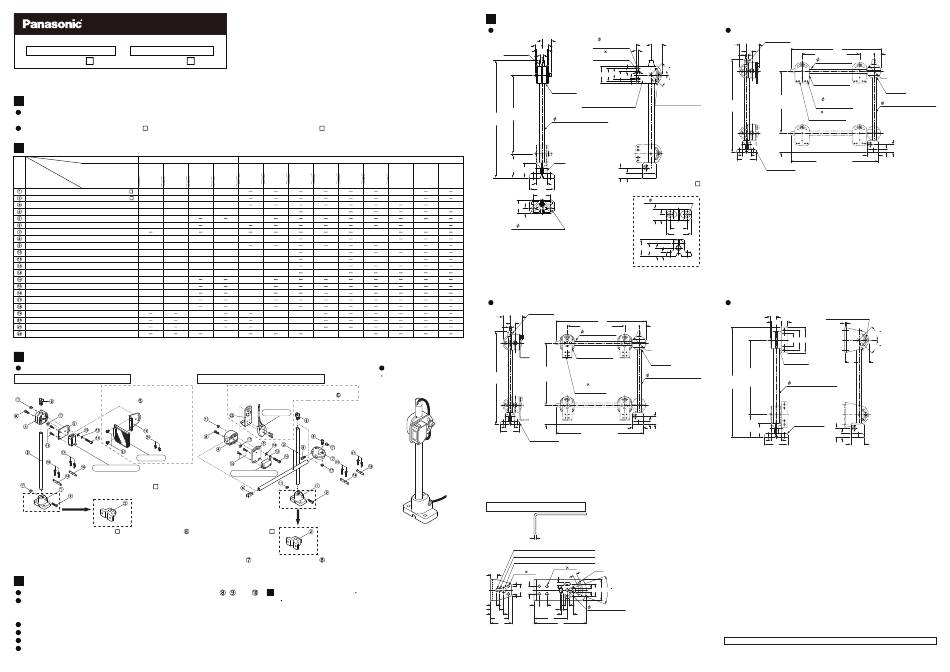

Panasonic MS-AJ1 Series Instruction Manual

INSTRUCTION MANUAL
Universal Sensor Mounting Stand

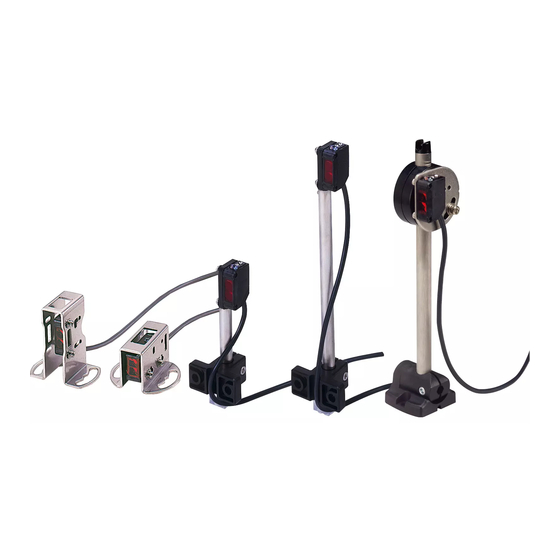

Horizontal mouting type Vertical mounting type
MS-AJ1 MS-AJ2
MJE-MSAJ1 No.0098-87V
1 OUTLINE
This product can fix CX-400 series, EQ-20 series, EX-40 series, reflectors (RF-210, RF-220, and RF-230), and fibers (FD-L51, FD-L52, FD-L53, FD-L54,
and M3/M4/M6 threaded head fiber) at any angle or position.
Two types of the mounting stand, MS-AJ1 which can be mounted on a horizontal surface and MS-AJ2
available.
2 PART COMPOSITION
Type A s s e m b y l
MS-AJ1 MS-AJ1-A MS-AJ1-M
MS-AJ2 MS-AJ2-A MS-AJ2-M
Model No.
Basic Lateral arm Assembly
assembly assembly for reflector
No. Designation
Base for horizontal mounting (Accessory for MS-AJ1 ) 1 1
Base for vertical mounting (Accessory for MS-AJ2 ) 1 1
Arm (Pipe) 1 2
Attachment 1 1
Sensor mounting bracket 1 1
Cable guide 1 2
Arm joint 1
M4 (length 12mm) hexagon-socket-head bolt (Drilube applied product) 1 3
M4 (length 15mm) hexagon-socket-head bolt (Drilube applied product) 1 1
M4 (length 22mm) hexagon-socket-head bolt 1 1
M4 nut 3 5
M4 spring washer 1 1
M4 flat washer 1 1
M3 (length 14mm) screw with washers for CX-400 series 2 2
M3 (length 18mm) screw with washers for EQ-20 series 2 2
Auxiliary mounting plate for EQ-20 series 1 1
M3 (length 16mm) screw with washers for EX-40 series 2 2
Auxiliary mounting plate for EX-40 series 1 1
Reflector mounting bracket
M3 (length 8mm) screw with washers for RF-220
M4 (length 8mm) screw with washers for RF-230
Fiber mounting bracket
Note: The numbers shown in the table adove indicate the quantities of the respective parts.
3 ASSEMBLY
Assembly diagram
MS-AJ1, MS-AJ2, MS-AJ1-M, MS-AJ2-M
The MS-AJ1-M, MS-AJ2-M (assembly for
reflector) includes parts enclosed by the dotted
line in place of the sensor mounting bracket.
e.g.: RF-230
e.g.: CX-400 series
The base of MS-AJ2
differs.
Note: The assembly for reflector (MS-AJ -M) does not contain the
cable guide.
4 CAUTIONS
The tightening torque of the attached M4 hexagon-socket-head bolts ( ,
To mount the stand on your equipment, use M6 screws. The tightening torque should be 2N m or less.
(Please arrange the M6 screws separately.)
Take care that if excessive torque is applied, the products may get damaged.
When using the stand, take care that excess vibration is not applied to the sensor.
Do not apply excess stress on any part of the stand.
Do not thread the fiber cable into the pipe when the fiber head is mounted on MS-AJ1-F, MS-AJ2-F.
Refer to the instruction manual attached to each product for details of CX-400 series, EQ-20 series, EX-40 series or fibers.
Thank you very much for purchasing Panasonic products. Please read this
Instruction Manual carefully and thoroughly for the correct and optimum use
of this product. Kindly keep this manual in a convenient place for quick
reference.
which can be mounted on a vertical surface, are
s e s t C o m p o n e n s t
MS-AJ1-F
MS-AJS MS-AJR MS-AJ-R1 MS-AJD MS-FD-1 MS-AJL
MS-AJ2-F
Fiber mounting Arm joint
Sensor Reflector Reflector Fiber
Assembly
mounting unit mounting unit mounting bracket mounting unit bracket unit
for fiber
1 1
1 1
1 2
1 1 1 1 1
1
2
1
1 3 1 1 1
1 1
1 1 1 1 1
3 5 2 2 2
1 1 1 1 1
1 1 1 1 1
2
2
1
2
1
1 1 1
2 2 2
2 2 2
1 1 1
MS-AJ1-A, MS-AJ2-A, MS-AJ1-F, MS-AJ2-F
The MS-AJ1-F, MS-AJ2-F (assembly for fiber) includes
parts enclosed by the dotted line in place of the sensor
mounting bracket.
e.g.: FD-L51
e.g.: CX-400 series
The base of MS-AJ2
differs.
Note: To adjust the arm joint, loosen both the M4 (length 12mm)
hexagon-socket-head bolts.
, and in 3 ASSEMBLY ) should be 1.2N m or less.
5 DIMENSIONS (Unit: mm)
MS-AJ1, MS-AJ2 (Basic assembly)
17.8
11.8 12
20 t 2
Cable guide
6
(POM)
Attachment
(Nylon 6)
(147)
218
(Note 1)
(Note 2)
[Stainless steel (SUS304)]
(44.5)
(Note 3)
MS-AJ1B 28
MS-AJG MS-AJP
MS-AJ2B
(Cable guide) [Arm (Pipe)]
(Base unit)
20
45
1
32
1
1
25.5
10
1 2- 6.6 mounting holes
1
Two M3 (length 14mm) screws with washers,
2 two M3 (length 16mm) screws with washers,
two M3 (length 18mm) screws with washers,
1
one auxiliary mounting plate for EQ-20 series
and one auxiliary mounting plate for EX-40
2 1
series are attached.
Notes: 1) The dimensions in the brackets indicate the adjustable range of the movable
part.
2) This value is 210mm for MS-AJ2.
3) This value is 36.5mm for MS-AJ2.
MS-AJ1-F, MS-AJ2-F (Assembly for fiber)
Cable guide
16.5 28.45 (POM)
12
6
Mounting example
(147)
The below figure shows 218
(Note 1)
(Note 3)
the CX-400 series on
MS-AJ1.
(44.5)
(Note 4)
20
45
Base (Note 2)
(PA)
Notes: 1) The dimensions in the brackets indicate the adjustable range of the movable
part.
2) Refer to MS-AJ1, MS-AJ2 (basic assembly) for the assembly diagram with
the base.
3) This value is 210mm for MS-AJ2-F.
4) This value is 36.5mm for MS-AJ2-F.
5) This value is 208.5mm for MS-AJ2-F.
Fiber mounting bracket / MS-FD-1
t 2
M3 threaded head fiber mounting hole
M3 threaded head fiber mounting hole
M3 threaded head fiber mounting hole
4-M3 0.5
2-M3 0.5
7
8 13 8
6 5.5 8
9 3.2
13.5
18.5 35
22
Material: Stainless steel (SUS304)
MS-AJ1-A, MS-AJ2-A (Lateral arm assembly)
2- 3.2 mounting
holes
28 20 16.5
4
2-3.2 4.2 oblong
holes
1
45
3.2
20
33 25
20
45
1 4.2
M4 hexagon-socket-
head bolt
Sensor mounting bracket 218
[Stainless steel (SUS304)] (Note 3)
10 arm (pipe)
Base
(PA)
18
Two M3 (length 14mm) screws with washers,
The base of MS-AJ2
8
two M3 (length 16mm) screws with washers,
differs.
two M3 (length 18mm) screws with washers,
one auxiliary mounting plate for EQ-20 series
2- 6.6 mounting holes
and one auxiliary mounting plate for EX-40
series are attached.
20
Notes: 1)
10
32
46
31 24.5
15
8
MS-AJ1-M, MS-AJ2-M (Assembly for reflector)
210
(134) (Note 1) (33) (16.5)
10 arm (pipe)
[Stainless steel (SUS304)]
33
Fiber mounting
bracket
[Stainless steel (SUS304)]
Arm joint
(Note 2)
(Nylon 6)
10 arm (pipe)
(208)
[Stainless steel (SUS304)]
4-M3 0.5
(Note 4)
mounting holes
18
25.5
8
(203.5) (Note 5)
Two M3 (length 8mm) screws with
washers and two M4 (length 8mm)
screws with washers are attached.
Notes: 1)
R14
4.2
3.2
4 13 22 40
4
4 mounting hole
13 Panasonic Industry Co., Ltd.
55
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024
Cable guide
28.45 (POM)
210
12
(134) (Note 1) (33) (16.5)
6
10 arm (pipe)
[Stainless steel (SUS304)]
33
Sensor mounting
bracket
[Stainless steel (SUS304)]
Arm joint
(Note 2)
(Nylon 6)
(147) 2- 3.2 mounting
10 arm (pipe)
holes
(Note 1)
[Stainless steel (SUS304)]
2-3.2 4.2 oblong
holes
(44.5)
(Note 4)
18
20 25.5
45 8
(203.5) (Note 5)
Base (Note 2)
(PA)
The dimensions in the brackets indicate the adjustable range of the movable
part.
2) Refer to MS-AJ1, MS-AJ2 (basic assembly) for the assembly diagram with
the base or sensor mounting bracket.
3) This value is 210mm for MS-AJ2-A.
4) This value is 36.5mm for MS-AJ2-A.
5) This value is 208.5mm for MS-AJ2-A.
M4 hexagon-socket-
head bolt
11.8
20 12
t 2
45
25 40 50
45
4.2
Attachment
28 20
(Nylon 6)
(147)
(Note 1)
(Note 3) 10 arm (pipe)
[Stainless steel (SUS304)]
(44.5) Base (Note 2)
(Note 5) 28 (PA)
18
20
45 8 25.5
The dimensions in the brackets indicate the adjustable range of the movable
part.
2) Refer to MS-AJ1, MS-AJ2 (basic assembly) for the assembly diagram with
the base.
This value is 143.5mm for MS-AJ2-M.
This value is 200mm for MS-AJ2-M.
This value is 40mm for MS-AJ2-M.
PRINTED IN JAPAN
