Automatic Systems BL 10 Technical Manual

Manual rising barrier

Advertisement

Quick Links

BL 10
Manual rising barrier
Technical manual
(Translated from the original French version)
Rev. 01 • Update 10/2022
www.automatic-systems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Automatic Systems BL 10

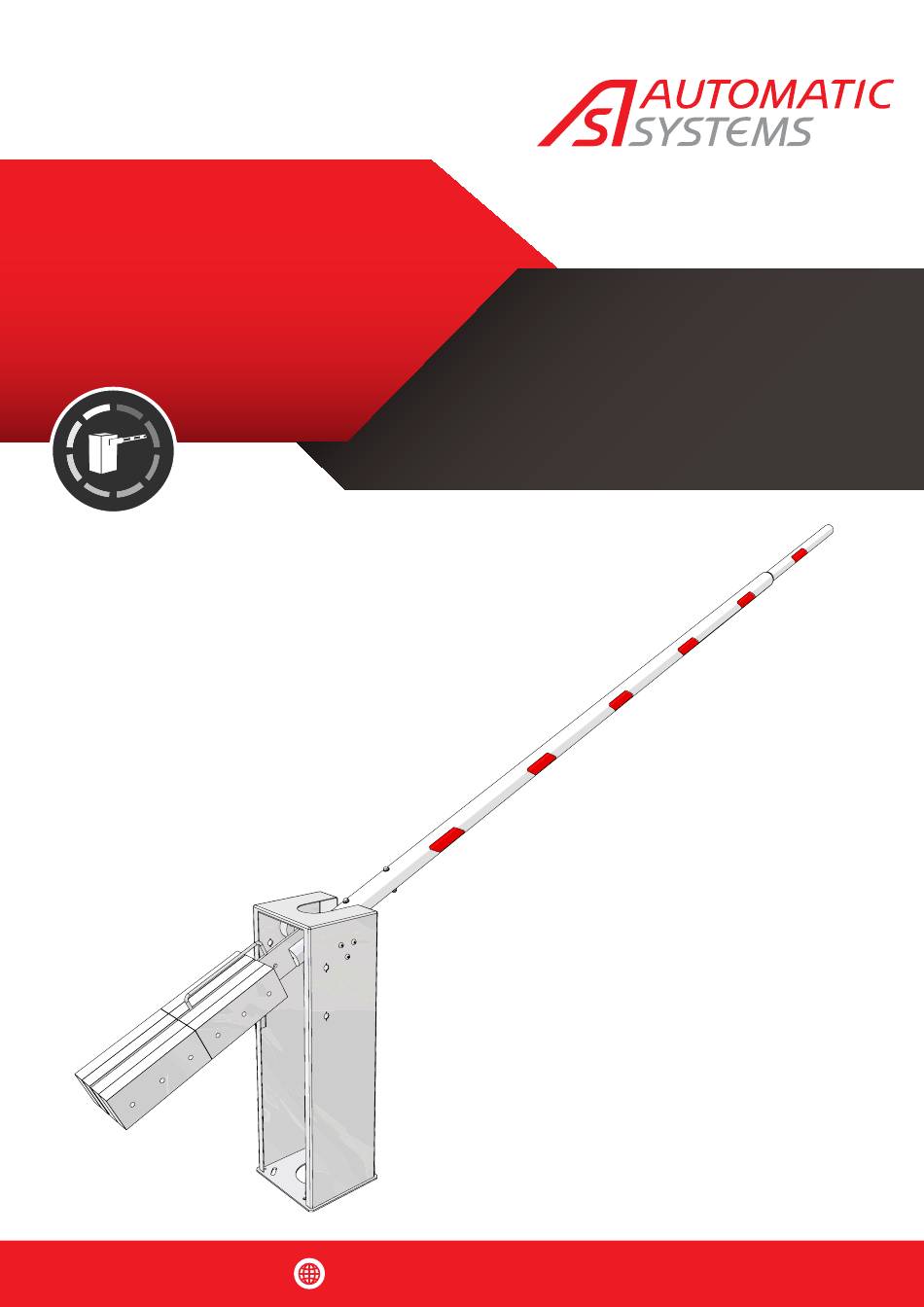

  • Page 1 BL 10 Manual rising barrier Technical manual (Translated from the original French version) Rev. 01 • Update 10/2022 www.automatic-systems.com...
  • Page 3: Table Of Contents

    BL 10 INDEX TABLE Introduction ................3 Safety warnings .
  • Page 4 BL 10 ILLUSTRATIONS TABLE Fig. 1 - Main components location ................8 Fig.
  • Page 5: Introduction

    BL 10 1. INTRODUCTION You have chosen a manual rising barrier from the BL 10 range designed and manufactured by Automatic Systems, for which we thank you. We are convinced that your acquisition will give you complete satisfaction for many years and, to this end, invite you to read the following information carefully before installing your equipment.
  • Page 6: Safety Warnings

    This equipment has been designed to control and manage vehicle access and cannot be applied to any other use without risk to users or to the integrity of the equipment. Automatic Systems cannot be held liable for damage resulting from improper use of the equipment.
  • Page 7: General Symbols

    BL 10 3. GENERAL SYMBOLS The following symbols are used in this manual or as labels on the equipment: This symbol is used to highlight a tip that may help you better understand the product. Reminder or quick tip useful for understanding how the product works.
  • Page 8: Terminology

    BL 10 4. TERMINOLOGY Automatic Systems Lisse Obstacle to passage, materialized by an arm pivoting from top (open barrier) to bottom (closed barrier). Limit switch.
  • Page 9: Description

    BL 10 5. DESCRIPTION 5.1. OVERALL DIMENSIONS...
  • Page 10: Technical Specifications

    BL 10 5.2. TECHNICAL SPECIFICATIONS Barrier type: manual Arm type: round Working lenght (L) of the arm: From 3 to 8 meters Net weight: From 54 to 118 kg, depending on the configuration In accordance with European standards 5.3. COMPONENTS LOCATION 5.3.1.
  • Page 11: All Components

    BL 10 5.3.2. ALL COMPONENTS Fig. 2 - All components location REP. DESIGNATION REP. DESIGNATION Frame Arm locking pin Round aluminium arm Arm handle Stainless steel hexagonal screw M10x90 Opening stopper Stainless steel flat washer M10 Closing stopper Stainless steel hexagonal nut M10...
  • Page 12: Operation Principle

    BL 10 5.4. OPERATION PRINCIPLE Number indicators mentioned below refer to chapter 5.3. Components location. Closing and opening of the arm is done manually by using the arm handle (6). A blocking pin (5), which can be equipped with a lock, is used to lock the barrier in its two extreme positions (open and close).
  • Page 13: Installation

    BL 10 6. INSTALLATION On receipt, check the state of the material and notify forthwith your insurance company or your distributor in the event of damage occurring during transport. If necessary, proceed with the repairs. ATTENTION! SAFETY INSTRUCTIONS! 1. The installation personnel must follow all laws and standards applicable to the gate installation site.
  • Page 14: Installation Drawing

    BL 10 6.2. INSTALLATION DRAWING Fig. 7 - Installation drawing...
  • Page 15: Installation Procedure

    BL 10 6.3. INSTALLATION PROCEDURE 1. Verify that the ground location of the barrier is free from water pipes or any other type of interference. 2. Dig a hole approximately 60 cm long, 60 cm wide and 60 cm deep.
  • Page 16: Sealing Frame Assembly

    BL 10 6.3.2. SEALING FRAME ASSEMBLY Insert the four anchors (4) with nuts (3) and flat washers (2) in the hole of the sealing plate (1). Threads must be oriented up, as shown on the picture above in the previous page. Assemble the anchors on the sealing plate with flat washers (2) and nuts (3) on each thread in a way that they minimally protrude by 40 mm.
  • Page 17: Arm Installation

    BL 10 6.4. ARM INSTALLATION THE BARRIER MUST BE ANCHORED TO THE GROUND AND IN OPEN POSITION, BEFORE BEGINNING THE INSTALLATION OR REMOVAL. Each screw and threaded rod must be greased before installation. Counterweights to balance the barrier are assembled at the factory To facilitate the assembly of a long arm, begin with the assembly of the first arm section.
  • Page 18: Barrier Balancing

    BL 10 7. BARRIER BALANCING The barrier comes with all the necessary material to balance the barrier correctly with the length of the arm. In the case of length modification of the arm or the addition of accessories not part of the original order, the following tables...
  • Page 19: Counterweight Positioning

    BL 10 ARM WITH PVC SKIRT (OPTIONAL) Ref. Working length (L) Position counterweights 3,00 m 3,50 m 4,00 m 4,50 m 5,00 m 4E4268 (14 kg) 5,50 m 6,00 m 6,50 m 7,00 m For counterweight positioning, see chapter 7.1. Positionnement des contrepoids ci-après.
  • Page 20: Counterweight Mounting

    BL 10 7.2. COUNTERWEIGHT MOUNTING NUMBER OF COUNTERWEIGHTS Stainless steel screw M10x90 Stainless steel threated rod M10x140 Stainless steel threated rod M10x190 Stainless steel threated rod M10x240 Stainless steel flat washer M10 Stainless steel Grower washer M10 Stainless steel nut M10...
  • Page 21: Accessories And Options

    BL 10 8. ACCESSORIES AND OPTIONS It is possible to add one or more options to the barrier. Ask the sales representative to verify feasibility and availability of the chosen options. 8.1. LIMIT SWITCHES FOR ARM POSITION INFORMATION One or two limit switches IP67 (11 & 13), mounted on a support (10), allows the arm position to be known.
  • Page 22: Maintenance

    BL 10 9. MAINTENANCE THE BARRIER MUST BE ATTACHED TO THE GROUND AND BLOCKED IN THE OPEN POSITION PRIOR TO DOING ANY MAINTENANCE WORK ON THE GATE. Every years(*) • Verify the condition of the barrier: - Frame, arm conditions...
  • Page 24 The information contained in this document is the property of Automatic Systems and is confidential. The recipient is prohibited from using it for any purpose other than the use of the products or execution of the project to which it refers and from communicating it to any third party without the prior written permission of Automatic Systems. The document is...
