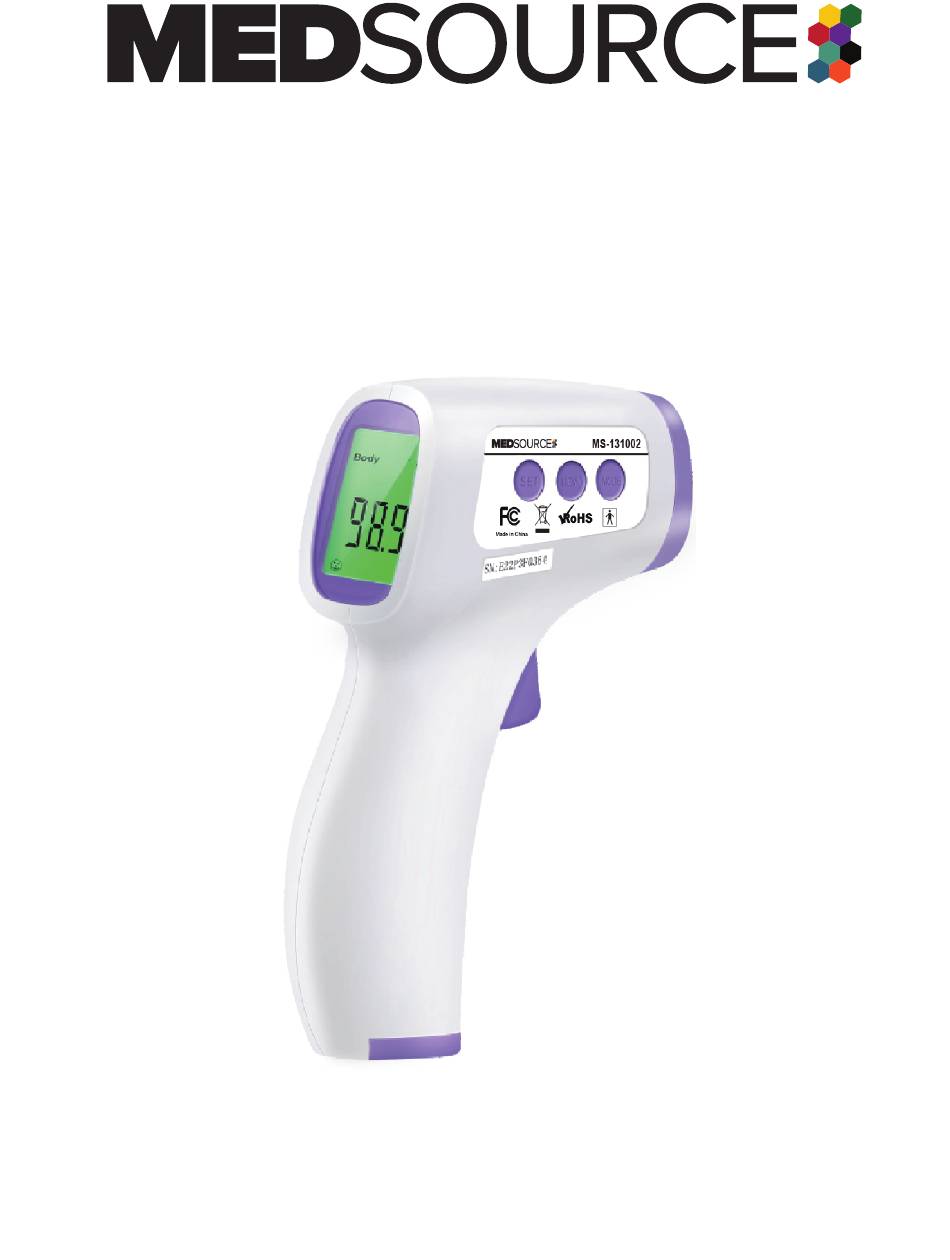

- Page 1 User Manual Non-Contact Infrared Body Thermometer MS-131002 Please read this manual before operating this device. It contains important safety information. Model HTD8813C...
-
Page 3: Table Of Contents
Table of Contents Foreword................................3 Safety Information ............................3 Warnings ................................3 1 - Overview..............................4 2 - Operation..............................7 3 - Troubleshooting.............................12 4 – Replacing the Batteries ........................1 2 5 – Cleaning, Care and Storage ......................13 6 – Disposal .............................. -
Page 4: Foreword
Foreword This user manual is intended to provide the necessary information for the proper operation of the MS-131002 non-contact infrared body thermometer. A general knowledge of infrared thermometers and an understanding of the features and functions of the thermometer are prerequisites for proper use. - Page 5 • If a cold compress has been applied to the patient’s forehead, or other physical measures have been used to cool down the patient, avoid using the thermometer, as it may produce a low reading. • When measuring body temperature using the forehead, select “body” mode. When measuring other objects, liquids or foods, select “surface”...
-
Page 6: Overview
1 - Overview Indication for use The electronic thermometer HTD8813C is infrared thermometers which use Infrared sensor to detect human body temperature of patients of all ages, It is intended to be used on one's forehead to detect body temperature. The HTD8813C is intended for use in home and clinical environment. Description of Non-Contact Infrared Body Thermometer Introduction and Operating Principle This non-contact thermometer is a hand-held, reusable, battery-operated device which measures... - Page 7 Adult Pediatric Thermometer Thermometer Model Number Forehead Forehead Non-Contact Infrared Body Thermometer HTD8813C REF： MS-131002 Equipment Symbols Warning Compliance with WEEE Standard DO NOT THROW AWAY Intended for Non-Sterile Package multiple uses Refer to Operating instructions Operating atmospheric pressure 104°F...
- Page 8 Output Range Body mode: 93.2 °F - 109.4 °F (34.0 °C - 43 °C ) Surface mode: 32.0 °F – 212.0 °F (0.0 °C – 100.0 °C) Laboratory Accuracy Body mode: 93.2 °F - 94.8 °F ±0.5 °F (34.0 °C - 34.9 °C ±0.3 °C) 95.0 °F –...
-
Page 9: Operation
ISO 15223-1:2021 Front Panel and Case Labeling Temperature IS0 80601-2-56:2017+A1:2018 Home Healthcare Environment IEC 60601-1-11:2015+A1:2020 Calculated Values of the Indicators According to ASTM E1965-98 Group I Group II Group III Age group (Infants) (Children) (Adults) Bias 0.05 0.07 -0.04 Uncertainty ±0.20 ±0.19 ±0.18... - Page 10 2.3 Thermometer Self-Test brie y illuminate all segments of the display with green backlighting and then complete a measurement. 2.4 Temperature Modes The thermometer is capable of measuring body temperature and surface temperature. By default, the thermometer will enter Body Mode when turned on. To toggle between body temperature and surface temperature, press the Mode Button when the device is on.
- Page 11 • If the measurement is between 9 °F and 99.1 °F (3 °C and 37.3 °C) the display will show the temperature, a green backlight, a happy face icon and beep once if audio is enabled. This indicates normal body temperature. •...
- Page 12 The units (°F or °C). Whether body or surface temperature. For body temperature, a happy or sad face icon • Every stored measurement will be displayed with a green backlight. • To clear the stored values, press and hold the Memory Button until “Clr” is displayed. •...
-
Page 13: Troubleshooting
Exit setting mode 2.9 Notes • If you experience problems with this thermometer, such as con guration, maintenance or use, please contact the SERVICE PERSONNEL. Do not attempt to open or repair the device yourself. • Please report to us any unexpected operation or events. •... -
Page 14: Replacing The Batteries
4 – Replacing the Batteries Caution: The thermometer does not operate with dead or low batteries and does not allow connection to an external power supply. Pull the battery cover forward as indicated by the arrow. Remove the old batteries. Insert two AAA-size batteries. -
Page 15: Disposal
Note: Ensure that no liquid enters the interior of the thermometer, never use abrasive cleaning agents, thinners or benzene for cleaning and never immerse the instrument in water or other cleaning liquids. Wait 10 minutes after cleaning, allowing the thermometer to air-dry before taking a temperature measurement. Visual Inspection: After cleaning, there should be no visible blotches and oil stains on the device under nature light, if there is still blotches and/or oil stains existed, repeat the cleaning steps mentioned above until there is no visible blotches and oil stains. -
Page 16: 8-Emc Declaration
8-EMC Declaration 1) This equipment needs to be installed and put into service in accordance with the information provided in the ACCOMPANYING DOCUMENTS; This product needs special precautions regarding EMC and needs to be installed and put into and mobile RF communications equipment. 2)* Caution: Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. - Page 17 Guidance and manufacture’s declaration – electromagnetic immunity The Infrared Body Thermometeris intended for use in the electromagnetic environment specified below. The customer or the user of Infrared Body Thermometer should assure that it is used in such an environment. IEC 60601 test level Compliance level Anti-interference detection...
- Page 18 Guidance and manufacture’s declaration – electromagnetic immunity The Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user ofthe Infrared Body Thermometer should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level...
- Page 19 Guidance and manufacturer's declaration RF wireless communication equipment immunity Test Maximum IMMUNITY Band Service Modulation Distance frequency power TEST LEVEL (V/m) (MHz) (MHz) Pulse modulation 380 - 390 TETRA 400 18 Hz GMRS 460, ± 5 kHz deviation FRS 460 1 kHz sine Pulse LTE Band...
- Page 20 MANUFACTURED FOR : MEDSOURCE 8600 Shelby Court Chanhassen, MN 55317 800-876-8264 info@medsourcelabs .com ww w.medsourcelabs.com Add:Room 801, 802, 803, 804, 901, 2# Building Scientific Research Center, Songhu Intelligent Valley, No.6 Minfu Road, Liaobu Town, Dongguan City, Guangdong Province, P.R.China REV. 3...
Need help?
Do you have a question about the MS-131002 and is the answer not in the manual?
Questions and answers
How to change from C to F
To change the temperature from Celsius to Fahrenheit on the MedSource MS-131002 thermometer:
1. Press the Set Button until "F1" and "Unit" are displayed.
2. Press either the Memo Button or the Mode Button to toggle between Fahrenheit (°F) and Celsius (°C).
3. When the desired unit is selected, press the Set Button to confirm and move to the next parameter.
