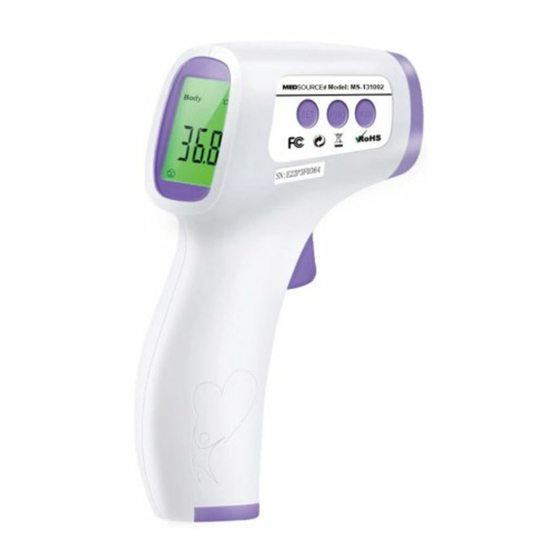

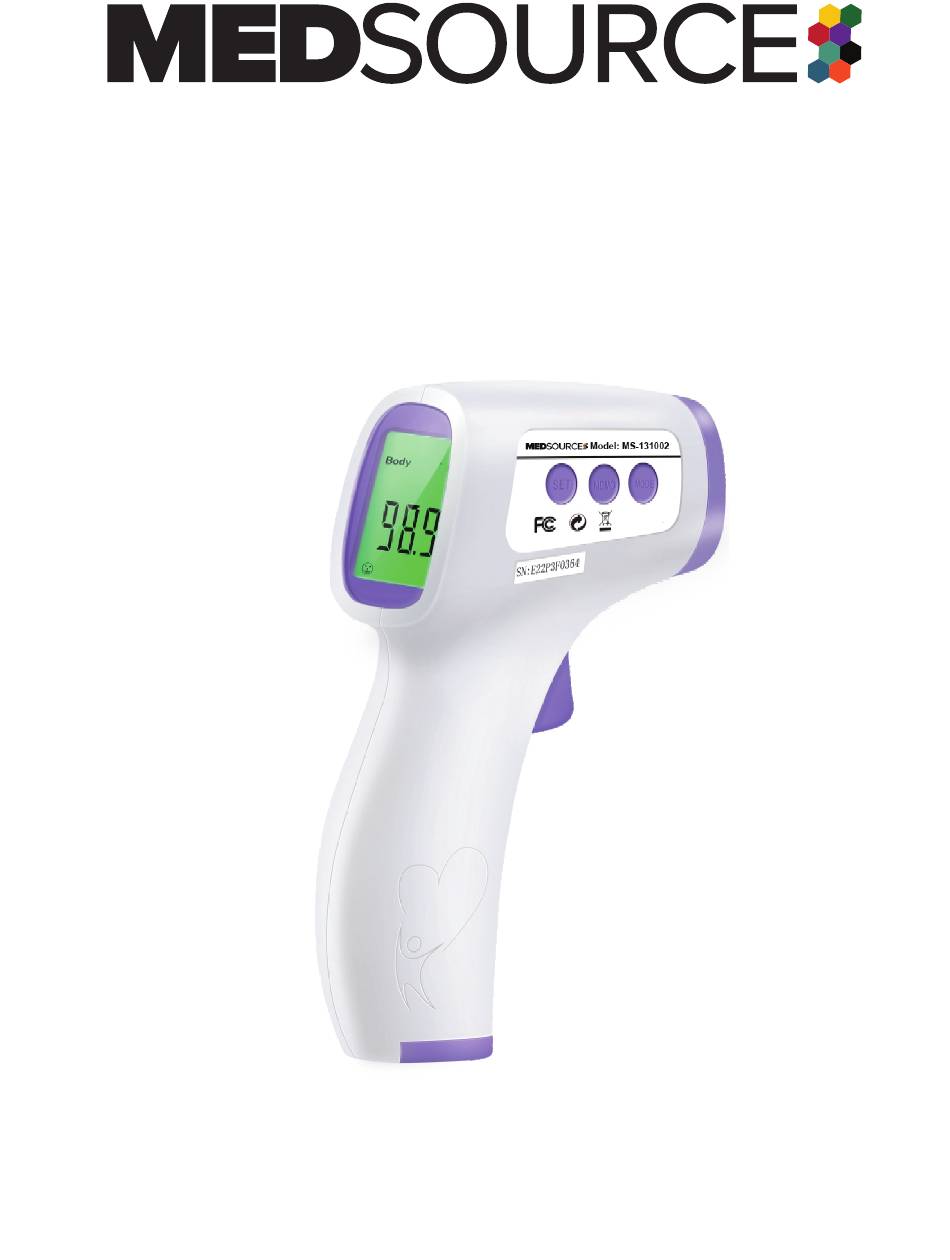

- Page 1 User Manual Non-Contact Infrared Body Thermometer Model MS-131002 Please read this manual before operating this device. It contains important safety information. HTD8813C...
-
Page 3: Table Of Contents
Table of Contents Foreword................................3 Safety Information ............................3 Warnings ................................3 1 - Overview..............................4 2 - Operation..............................7 3 - Troubleshooting.............................12 4 – Replacing the Batteries ........................12 5 – Cleaning, Care and Storage ......................13 6 – Disposal ..............................13 7 – Calibration..............................13 8–... -
Page 4: Foreword
Foreword This user manual is intended to provide the necessary information for the proper operation of the model MS-131002 non-contact infrared body thermometer. A general knowledge of infrared thermometers and an understanding of the features and functions of the thermometer are prerequisites for proper use. - Page 5 • If a cold compress has been applied to the patient’s forehead, or other physical measures have been used to cool down the patient, avoid using the thermometer, as it may produce a low reading. • When measuring body temperature using the forehead, select “body” mode. When measuring other objects, liquids or foods, select “surface”...
-
Page 6: Overview
1 - Overview Intended Use The non-contact infrared body thermometer is designed to be used for intermittent measurement and monitoring of human body temperature by consumers in the home setting and primary care setting as a screening tool. Description of Non-Contact Infrared Body Thermometer Introduction and Operating Principle This non-contact thermometer is a hand-held, reusable, battery-operated device which measures human body temperature via the patient’s forehead. - Page 7 Adult Pediatric Thermometer Thermometer Model Number Forehead Forehead Non-Contact Infrared Body Thermometer HTD8813C MS-131002 Equipment Symbols Warning Compliance with WEEE Standard DO NOT THROW AWAY Intended for Non-Sterile Package multiple uses Operating atmospheric pressure Refer to Operating Instructions 95º F...
- Page 8 Range Body mode: 93.2 °F - 109.2 °F (34.0 °C - 42.9 °C) Surface mode: 32.0 °F – 212.0 °F (0.0 °C – 100.0 °C) Accuracy Body mode: 93.2 °F - 94.8 °F ±0.5 °F (34.0 °C - 34.9 °C ±0.3 °C) 95.0 °F –...
-
Page 9: Operation
Front Panel and Case Labeling EN/ISO 15223-1:2012 Temperature EN/ISO 80601-2-56:2012 Home Healthcare Environment EN 60601-1-11:2010 Calculated Values of the Indicators According to EN/ISO 80601-2-56 Indicator Calculated Value Clinical Bias ( cb) -0.027 °C Standard Deviation (σj) 0.14 °C Limits of Agreement (LA) 0.26 °C Clinical Repeatability (σr) 0.07 °C... - Page 10 2.3 Thermometer Self-Test When the thermometer is o , press the On/Scan button to initiate a self-test. The thermometer will briefly illuminate all segments of the display with green backlighting and then complete a measurement. 2.4 Temperature Modes The thermometer is capable of measuring body temperature and surface temperature. By default, the thermometer will enter Body Mode when turned on.
- Page 11 • If the measurement is between 93.3 °F and 99.2 °F (34.1 °C and 37.3 °C) the display will show the temperature, a green backlight, a happy face icon and beep once if audio is enabled. This indicates normal body temperature. •...
- Page 12 The units (°F or °C). Whether body or surface temperature. For body temperature, a happy or sad face icon • Every stored measurement will be displayed with a green backlight. • To clear the stored values, press and hold the Memory Button until “Clr” is displayed. •...
- Page 13 Temperature O set (F4) The thermometer allows a surface temperature o set to be entered. This will increase or decrease the displayed surface temperature, based on the o set value. The default o set value is zero. The o set range is ±...
-
Page 14: Troubleshooting
3 - Troubleshooting Message Situation Solution Body: The temperature measured Ensure the correct distance and is not within the typical human location is being used to measure body temperature range of the temperature. 93.2 °F to 109.2 °F (34.0 °C to 42.9 °C). Surface: The temperature measure Do not attempt to measure is not within the measurable range... -
Page 15: Cleaning, Care And Storage
If the device does not function after replacing the batteries: • Check for proper battery polarity. • Try a fresh set of batteries. • The unit may have locked up if the batteries were removed while the unit was powered. In this case, remove the batteries, wait 30 seconds, and then reinsert the batteries. -
Page 16: 8- Emc Declaration
7 – EMC Declaration • This equipment needs to be installed and put into service in accordance with the information provided in the ACCOMPANYING DOCUMENTS; This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, and this unit can be a ected by portable and mobile RF communications equipment. - Page 17 Guidance and Manufacturer’s Declaration – Electromagnetic Emission The Non-Contact Infrared Body Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the Non-Contact Infrared Thermometer should ensure that it is used in such an environment.
- Page 18 Note 1: At 80 MHz and 800 MHz, the higher frequency range applies. Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is a ected by absorption and reflection from structures, objects and people. a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 20 MANUFACTURED FOR : MEDSOURCE 4201 NOREX DRIVE CHASKA, MN 5531 8 800-876-8264 info@medsourcelabs .com ww w.medsourcelabs.com REV. 1...
